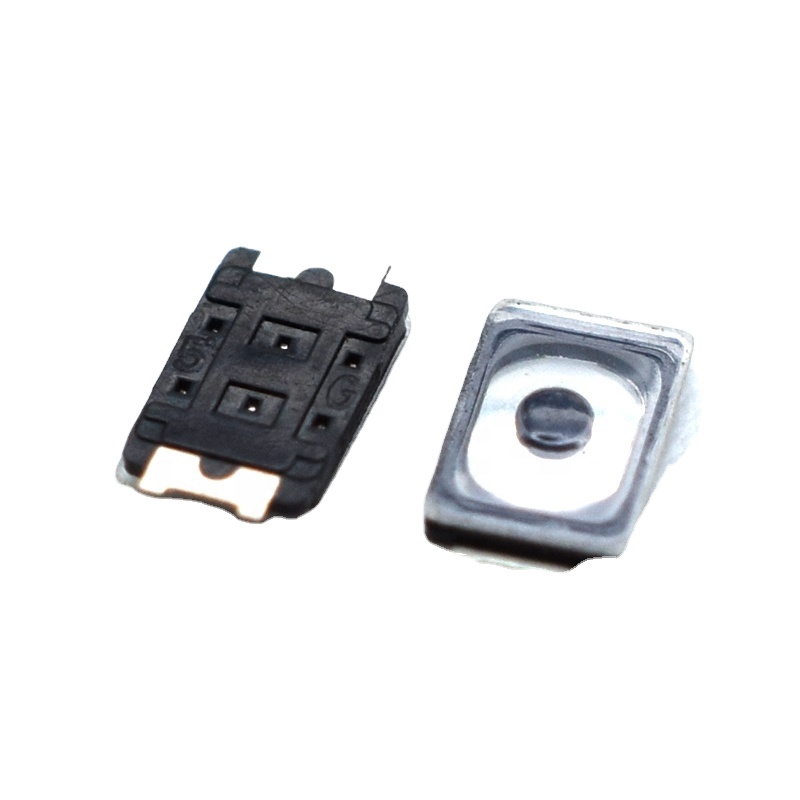

EVPAWBA2A SMT original 2x3x0.6 2 pin SMT low profile switch for earphone EVP-6AWD40

Short Description:

Product description
Item name: EVPAWBA2A 2x3x0.6 SMT touch switch
Model No.: TS2306A EVP-6AWD40
Rating: 50mA. 12VDC
Insulation resistance: 100mΩ min.100V DC
Dielectric strength: 250VAC for 1 min
Contact resistance: 50mΩ max
Operating temperature: -30℃~+85℃
Lifetime: 500,000 cycles min
Operating force: 180gf;250gf
Travel: 0.15±0.05mm
Usage:
- For operating various mobile devices;
- Operating various devices that require high density mounting such as mobile phones,communication devices,compact electronic devices.

Product Detail

Product Tags

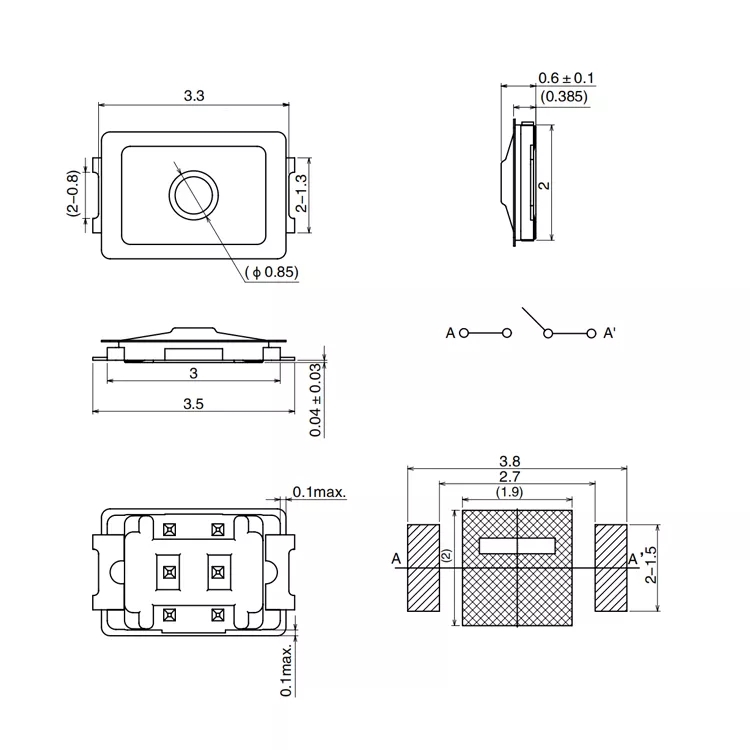

Product Name   2*3*0.6  SMD/SMT ultra thin 2 pin tactile switch
 Model   TS2306A
 Cycle   500,000cycles(1.6N/2.4N) 300,000 cycles(3.3N)
 Operating Temperature
 -40℃~+85℃
 Rated voltage   15V
 Operating force   1.60N/2.4N/3.3N
 Current  Rating   20mA
 Bounce time   ≤10 ms max(on,off)
