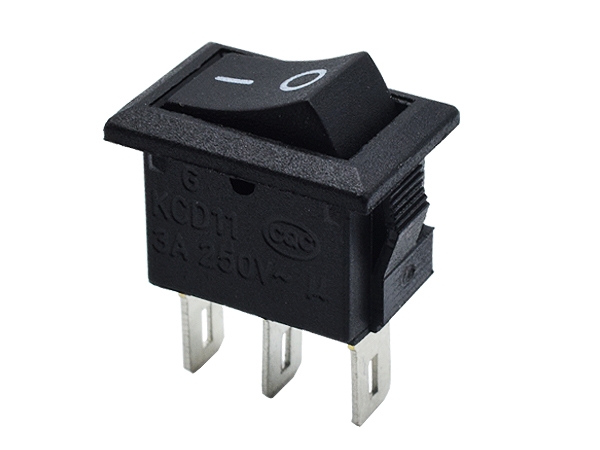

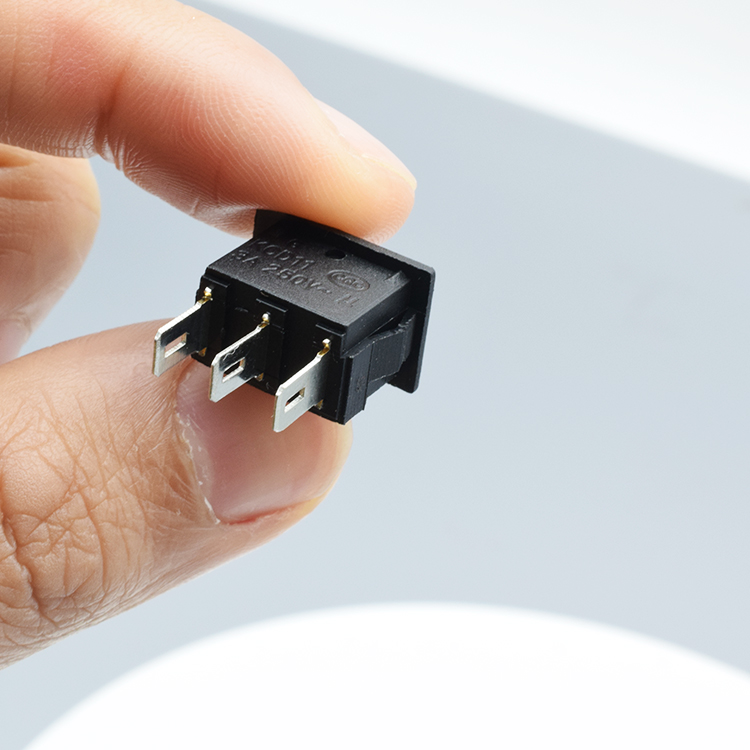

mini Rocker switch KCD11-3Pin on-off switch
Rocker switch product advantages:
Single pole rocker switches in numerous electrical configurations. Black case, a variety of actuator colors,
solder lug or straight pc terminals, silver or gold plated terminals. Ratings up to 3 amps.
Fast delivery, free samples, products with RoHS test report and CE certification, cycle life of more than
10000 times, guaranteed after-sales service, technical support and good service attitude
Application fields:
Our switches are widely used in the fields of small household products, communication equipment, energy
generator, electric tools, table lamp, electric motor, electric motor car, electric toy, medical facilities, socket, etc
Factory strengths:
With 13 years of industry experience, the company has passed ISO9001 certification, a number of patent certificates,
more than 5300 cooperative customers, many customers of listed companies, 106 employees, 12 hardware punches,
18 injection molding machines, 26 full-automatic assembly machines, 32 full-automatic testing machines,
21 semi-automatic testing machines, 12 life testing machines and 25 other testing equipment
Our rocker switch can pass the below tests:
1) solderability test
the top of the terminals shall be dipped 1mm in the solder bath of 240±5℃ for 3±0.5 seconds
2) resistance to soldering heat test reflow soldering conditions:
preheat:temperature on the copper foil surface should reach 180℃.120s after the p.c.b
entered into the soldering equipment. tallest temperature:temperature on the copper foil surface
should reach the peak temperature of 260±5℃with in 20 seconds.
3) resistance to soldering heat test
soldering iron method:
bit temperature 330±5℃ application
time of soldering iron3±0.5 sec
however excessive pressure shall not be applied to the terminal
4) humidity test
the jack shall be stored at a temperature
of 40±2℃ and a humidity of 90%to 96% for 96 hr, then the jack shall be maintained at standard
atmospheric condition for 1 hr for other procedures
5) Temperature Cycling test
DC Voltage 1.5 times as much as rated voltage shall be applied continuously between adjacent
at 60±2℃and 90~95％RH for 500hours, the switch shall be allowed to stand under normal temperature
and humidity conditions for 1hour, and measurement shall be made within 1hour,After that, water drops
shall be eliminated.After test contact resistance:100mΩMax, Insulation resistance:10mΩMin,
rocker switch shall be free from abnormalities in appearance construction.
6) Salt mist test
The switch shall be checked after following test:
(1) Temperature:35±2℃
(2) Salt solution:5±1％(Solids by mass)
(3) Duration: 24±1hour
After test, salt deposit shall be removed by running water, and no remarkable corrosion
shall be recognized in metal part.
7) Cycle life test
10,000 cycles of operation shall be performed continuously at a rate of 80cycles per minute with
3A, 250V AC
