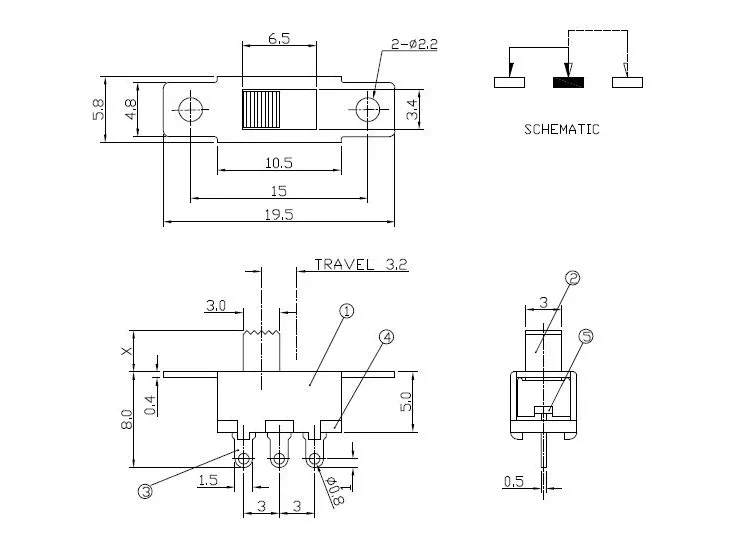

    slide switch 3pin SS12F15 1P2T on off switch

    slide switch 3pin SS12F15 1P2T on off switch Featured Image
    • slide switch 3pin SS12F15 1P2T on off switch
    • slide switch 3pin SS12F15 1P2T on off switch
    • slide switch 3pin SS12F15 1P2T on off switch

    Short Description:

    Production description
    Item name: slide switch
    Lifetime: 10,000 cycles
    Operating force: 250±100gf
    Operating temp.range: -10℃~+70℃
    Current: 2A/5A
    Voltage: 120V/250V
    Usage:
    - For the operation of telecommunication equipment such as mobile phones,audio apparatus,office equipment,communication apparatus,camcoders,portable audios,car radios etc.

    Product Detail

    Product Tags

    product name  DIP 90 degree switch with two position three pin
     Model   SS12F15G4
     Operating temperature  -20°C to +70°C
     Life  10,000 cycles
     Contact Resistance  ≤50mΩ
     Dielectric strength  500VAC 50Hz for 1min
     Color  Black

    The front consists of four parts

    2
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
