Chinese Factory Hight quality Ferrite core for USB cables SCRC 90A Ferrite ring core
| Product Name | Ferrite core for USB cables SCRC 90A manufacture |
| Model | F9 SCRC 90A |
| Material | Ni-Zn |
| Impedance | 155 ohm min at 100MHz |
| Condition | EMC ,EMI |
| PB Free Status | RoHS \ REACH |
| Operation Temperature | -40 to +125°C |
| Composite: | Ferrite Magnet |
| Shape: | Cylindrical |
| Application: | Industrial Magnet,HD HDMI cable,VGA cable,DVI cable,Power cable,Speaker cable,Industrial data cable,etc |
| Color: | Black |
| Package: | 350 pcs/CTN |
Composite:Ferrite Magnet ring core
Model: F9 SCRC 90A

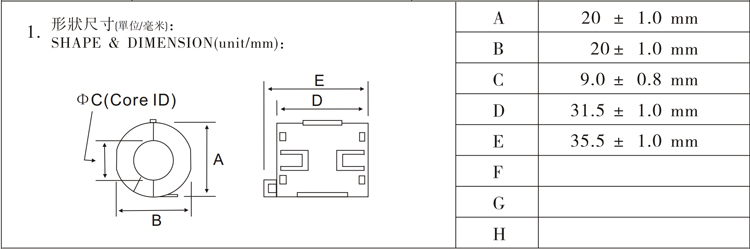

Size: 19*35mm Φ9mm
Material:Ni-Zi
Shape:Soft Cylindrical shape
color:Black
Package:350 pcs/CTN
Application:Industrial Magnet,HD HDMI cable,VGA cable,DVI cable,Power cable,Speaker cable,Industrial data cable,etc
Ferrite core, is a kind of high frequency magnetic conductivity material (principle with silicon steel sheet, only used in high frequency environment), mainly used for high frequency transformers (such as switching power supply, line output transformers, etc.), high frequency magnetic ring (anti-interference) and so on, increase the permeability, improve the inductance quality factor, transformer used inside.
