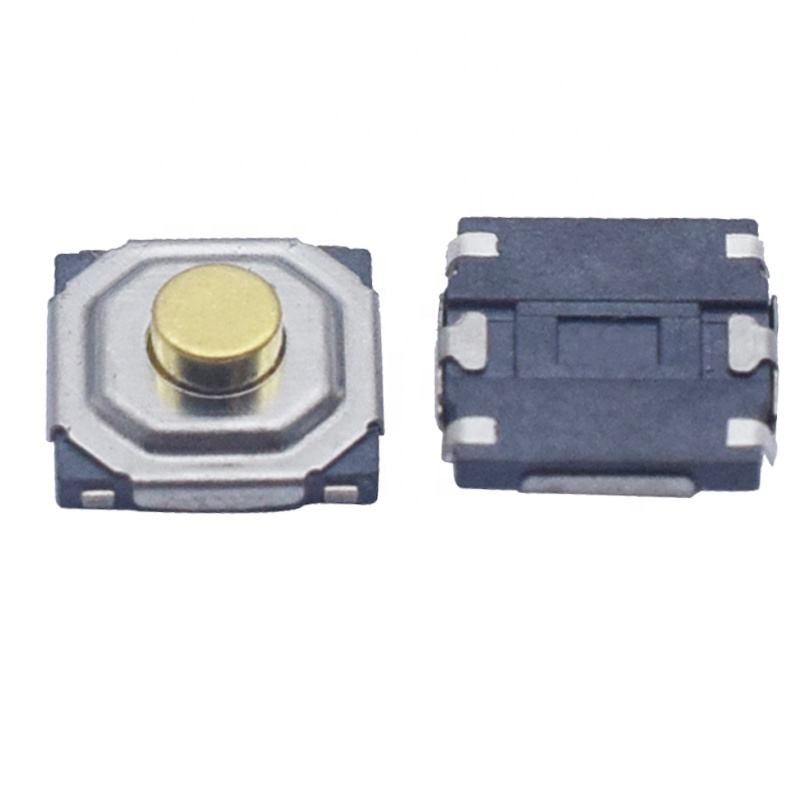

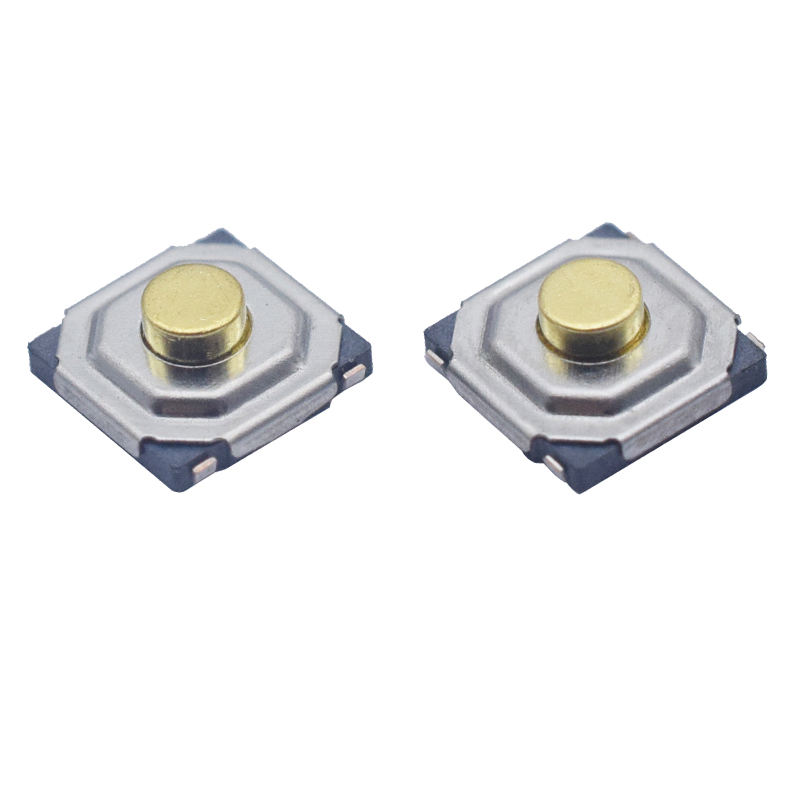

HOT SALE TS5220BA SKQGABE010 EVQPLHA15 50mA 12VDC SMD Button Switch Without ground pad PTS526 SKG15J SMTR2 LFS push button switch 4*4 tactile switch
| Product Name | TS5220BA |
| Size | 5.2*5.2*2mm(Height) |
| Waterproof Level | – |
| Rating Voltage | 12V |
| Operating temperature | -20℃~+85℃ |
| Contact Resistance | 100mΩ Max |
| Insulation Resistance | 100mΩ Min |
| Withstand Voltage | 250VAC(50/60Hz)/min |
| Contact Current | 50mA |
| Operating Life | 100,000Cycles |
| Operating Force | 260±50gf |
