    PJ-1841 phone jack 6 Pin DIP Female headphone jack socket connector IP67

    PJ-1841 phone jack 6 Pin DIP Female headphone jack socket connector IP67 Featured Image
    • PJ-1841 phone jack 6 Pin DIP Female headphone jack socket connector IP67
    • PJ-1841 phone jack 6 Pin DIP Female headphone jack socket connector IP67
    • PJ-1841 phone jack 6 Pin DIP Female headphone jack socket connector IP67
    • PJ-1841 phone jack 6 Pin DIP Female headphone jack socket connector IP67

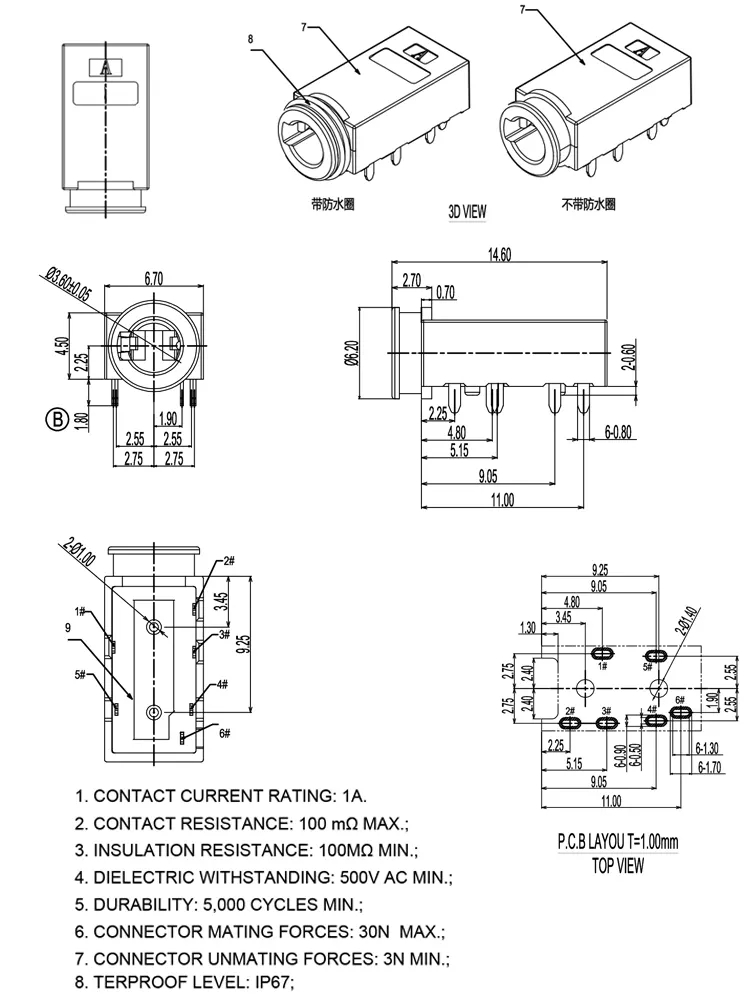

    Short Description:

    product name headphone socket
    Product number PJ-1841
    Certification ROHS
    contact current rating 1A
    contact resistance 100 mΩ Max
    Insulation resistance 100 MΩ Min
    dielectric withstanding 500V AC for 1Min
    durability 5000 cycles min
    Insertion force 3-30N
    waterproof level IP67
