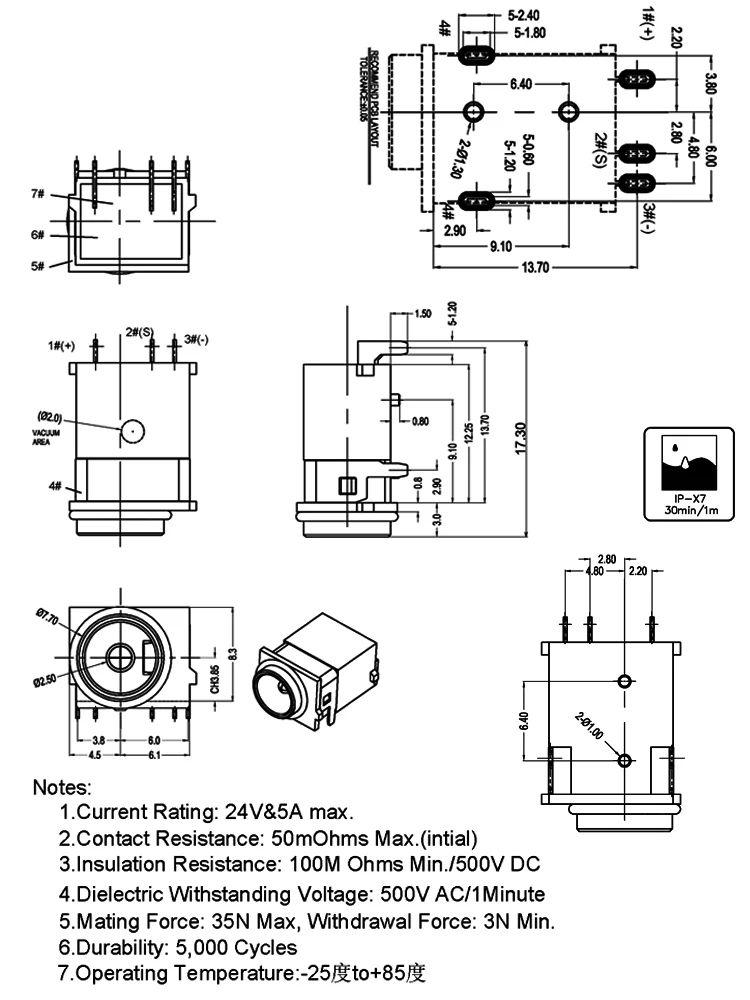

    DC1852 5pin DC power jack socket female connector ROHS 24V 5A DIP

    DC1852 5pin DC power jack socket female connector ROHS 24V 5A DIP Featured Image
    • DC1852 5pin DC power jack socket female connector ROHS 24V 5A DIP
    • DC1852 5pin DC power jack socket female connector ROHS 24V 5A DIP
    • DC1852 5pin DC power jack socket female connector ROHS 24V 5A DIP
    • DC1852 5pin DC power jack socket female connector ROHS 24V 5A DIP

    Short Description:

    product name DC socket
    Product number DC1852
    Certification ROHS
    waterproof level IP67
    Current Rating 24V 5A
    Contact Resistance 50mΩ Max
    Insulation Resistance 100mΩ Min
    Dielectric Withstanding Voltage 500V AC for 1Min
    Insertion force 3-35N
    Durability 5000 Cycles
    Operating Temperature -25℃~+85℃
