    PTS526SMG20SMTR21 4×4 Tactile Switch SMD Push Button Tact Switch 4 pin 5.2*5.2*5mm for earphone EVQPLHA50 SKQGABE010

    PTS526SMG20SMTR21 4×4 Tactile Switch SMD Push Button Tact Switch 4 pin 5.2*5.2*5mm for earphone EVQPLHA50 SKQGABE010 Featured Image
    • PTS526SMG20SMTR21 4×4 Tactile Switch SMD Push Button Tact Switch 4 pin 5.2*5.2*5mm for earphone EVQPLHA50 SKQGABE010
    • PTS526SMG20SMTR21 4×4 Tactile Switch SMD Push Button Tact Switch 4 pin 5.2*5.2*5mm for earphone EVQPLHA50 SKQGABE010
    • PTS526SMG20SMTR21 4×4 Tactile Switch SMD Push Button Tact Switch 4 pin 5.2*5.2*5mm for earphone EVQPLHA50 SKQGABE010

    Short Description:

    Product Name：TS5250A；PTS526SMG20SMTR21

    Size：5.2*5.2*5mm(Height)；

    Rating Value：12VDC 50mA;

    Operating temperature:-20℃~+80℃;

    Operating Force:260±50g;

    Operating Life:100,000Cycles


    Product Detail

    Product Tags

    Product Name TS5250A PTS526SMG20SMTR21
    Size 5.2*5.2*5mm(Height)
    Waterproof Level –
    Rating Voltage 12V
    Operating temperature -20℃~+80℃
    Contact Resistance 100mΩ Max
    Insulation Resistance 100mΩ Min
    Withstand Voltage 250VAC(50/60Hz)/min
    Contact Current 50mA
    Operating Life 100,000Cycles
    Operating Force 260±50g

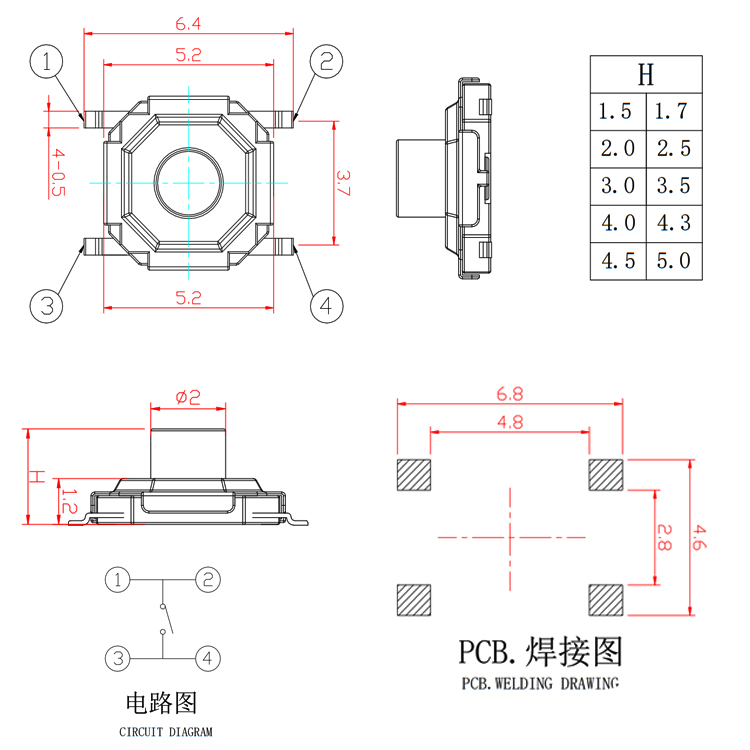

    0014x4x5-00图纸2 4 5 6 7 8 9 10 11 12 13 14
