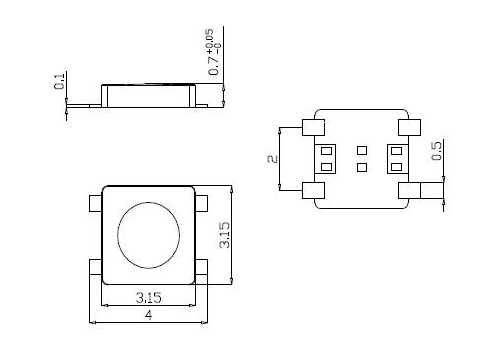

3x3x0.7 4 pin Low Profile SMT Tactile Switch
Title:TS3735A small micro tact switch 3.7*3.7 4 pin smd tact tactile switches Tact Switch
Certification: ROHS 2.0/CE
Place of Origin: Guangdong, China
Brand Name: SHOUHAN
Model Number: TS3735A
Certification: ISO9001 RoHS 2.0 CE
Pole-Position: Single pole single throw
Package: Reel package
Max. Current : 50 mA:
Max. Voltage : 12V
Operation Force ： 160/250/300/350GF (±50 gf)
Travel：0.15± 0.05mm
Contact resistance ≤ 100 M Ω
Insulation resistance ≥ 100 M Ω.
Life: 100000ycles
Operation at a rate of 30-50 cycles a minute.
Operating Temperature Range: -20 to 70℃
Multiple of 5000
Package size per batch: 38X38X10 cm
Gross weight per batch: 0.700 kg
Package Type: 5k/reel
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches
2．Please don’t immerse soldering flux into tact switch
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, three palnts located in Shenzhen , Zhejiang.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Factory strength: with thirteen years of industry experience, the company has passed ISO9001 certification, a number of patent certificates, more than 5300 cooperative customers, many customers of listed companies, 106 employees, twelve hardware punches, eighteen injection molding machines, 26 full-automatic assembly machines, thirteen full-automatic testing machines, twenty-one semi-automatic testing machines, twelve life testing machines and twenty-five other testing equipment.
Product advantages: the manufacturer is direct selling, can produce according to requirements, fast delivery time and free samples. The products are RoHS and CE certified, durable, small size, high temperature resistance, good press feel and rebound, guaranteed after-sales, can provide technical support and good service attitude.
