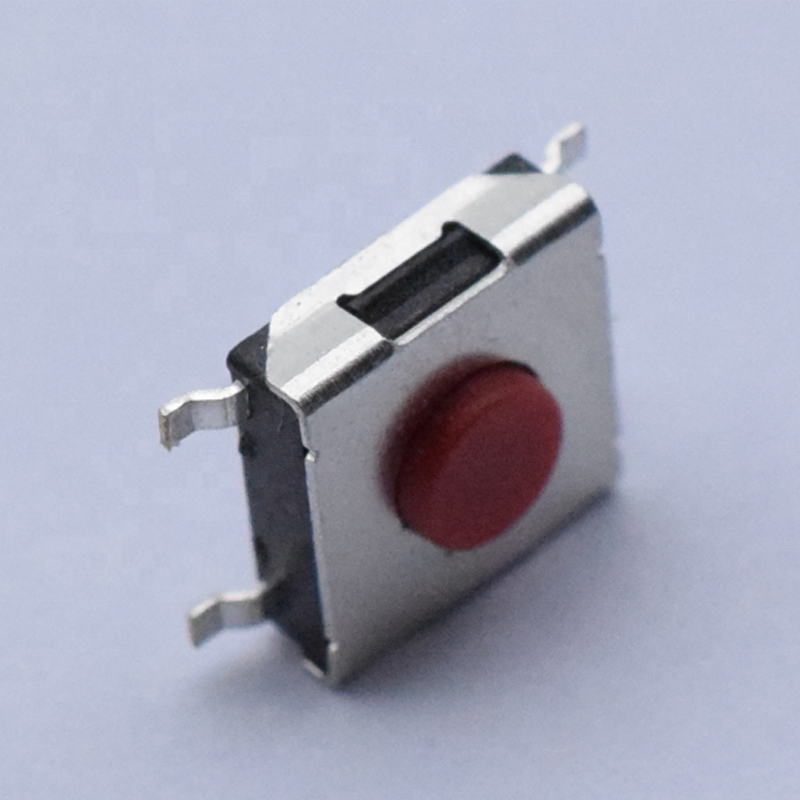

6*6mm TS66HA4P Red button 4 Pin SMT Tact Switch 6.2×6.2mm on off tactile switch 430471031826
Short Description:
Product Name
6*6mm Micro Red Cap Push Button 4 Pin SMT Tact Switch 430471031826
Environment temperature
-25°C~85°C
Withstand Voltage
AC250V(50Hz)/min
Rated load
0.5A/12VDC
Insulation Resistance
>100 MΩ
Contact Resistance
≤50mΩ
Product Life
10,0000 Cycles
Operation Force
160gf;250gf;300gf;400gf; can customized as your request.
Tact Switch Height
The tact switch height can be 4.3/4.5/5/5.5/6/7/8/9/10mm;also can customized as your request.
The feature of tact switch:
Crisp clicking by tactile feedback
Prevent flux rise by insert-molded terminal
Ground terminal is attached
Snap-in mount terminal
