3-1437565-0 6*6mm pcb tact switch 4 pin smd tactile switch momentary SMD tact switch

Short Description:

  • Tact switch performance description 3-1437565-0

Tact switch size: 6.0 x 6.0 (mm) Height (mm) : 4.3, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14, 15.
 Common Spec:
 1. Rating: DC 12V 50mA
 2. Travel: 0.25 ± 0.1mm
 3. Contact Resistance: 100m Ω Max
 4. Operating Force: 90gf, 120gf, 160gf, 260gf, 320gf, 500gf
 5. Operation Life: 50,000 cycles ~ 100, 000 Cycles.

Product Detail

Product Tags

HTB1N0LRX4rvK1RjSszeq6yObFXaH.jpg_960x960

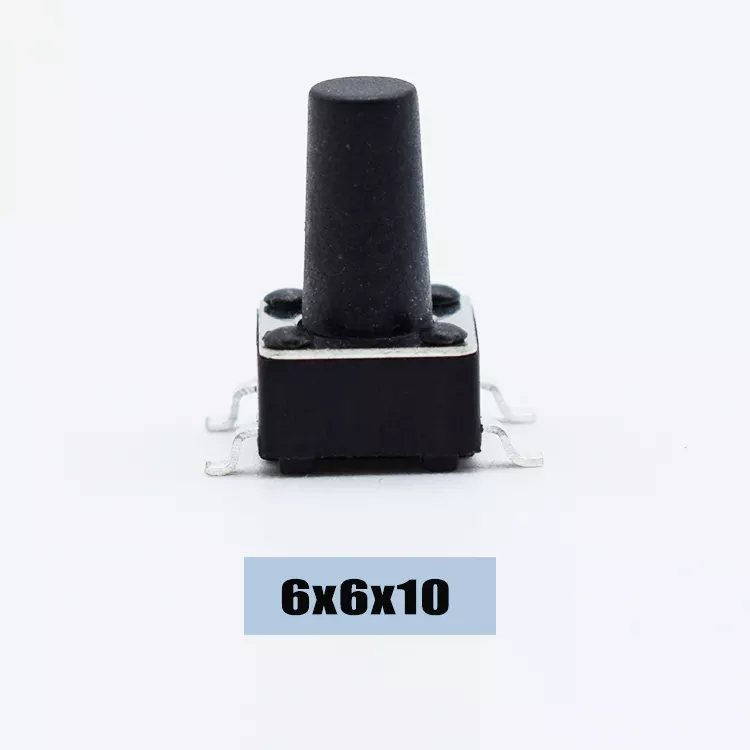

HTB1dTLMX.vrK1RjSspcq6zzSXXao.jpg_960x960

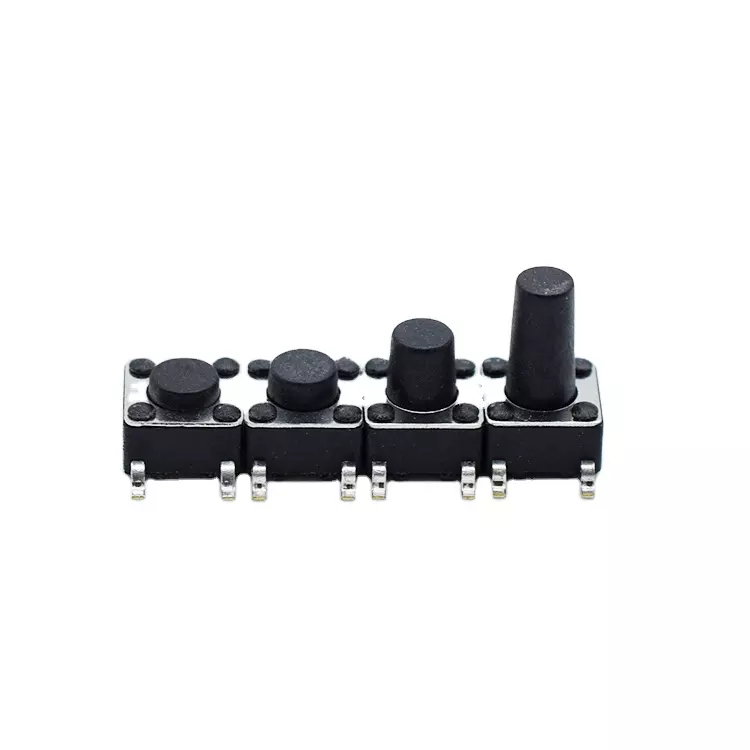

H169edd1ddd7c498e9437ce582ff40294p.jpg_960x960

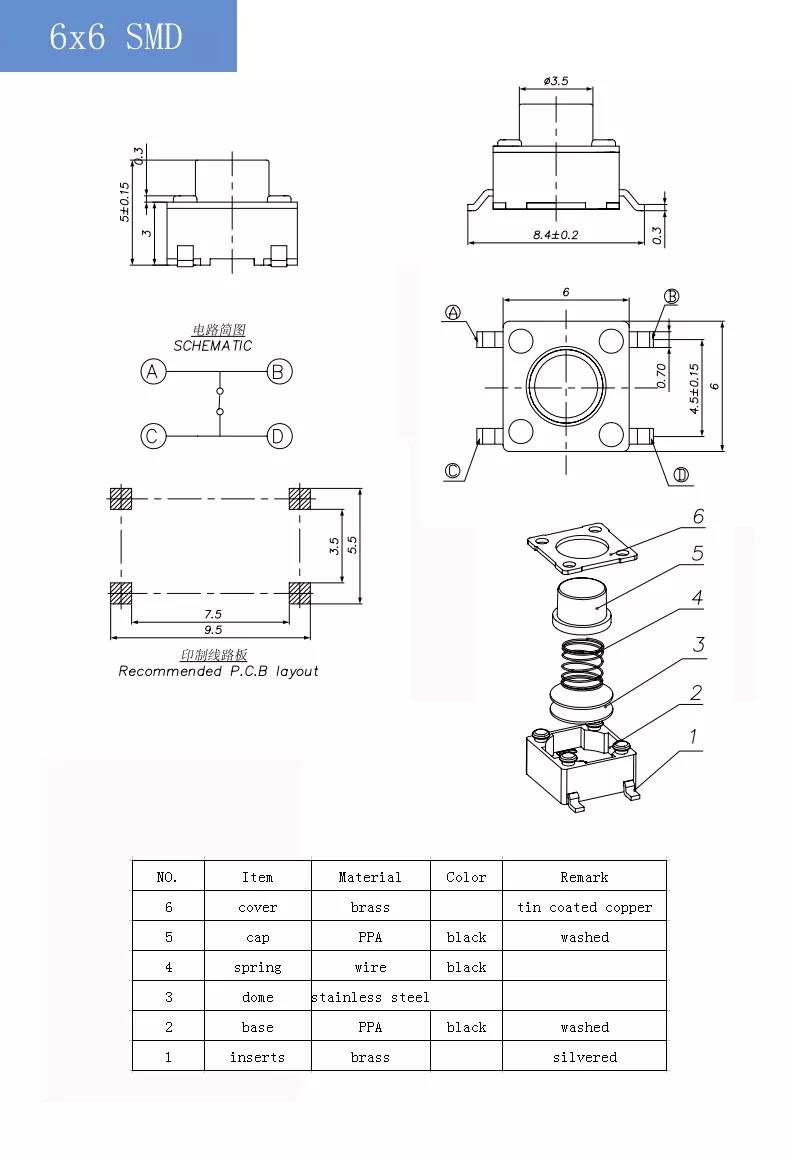

8b4874592c3ea6489cc44e0f11aa747
2
4
5
6
7
8
9
10
11
12
13
14
