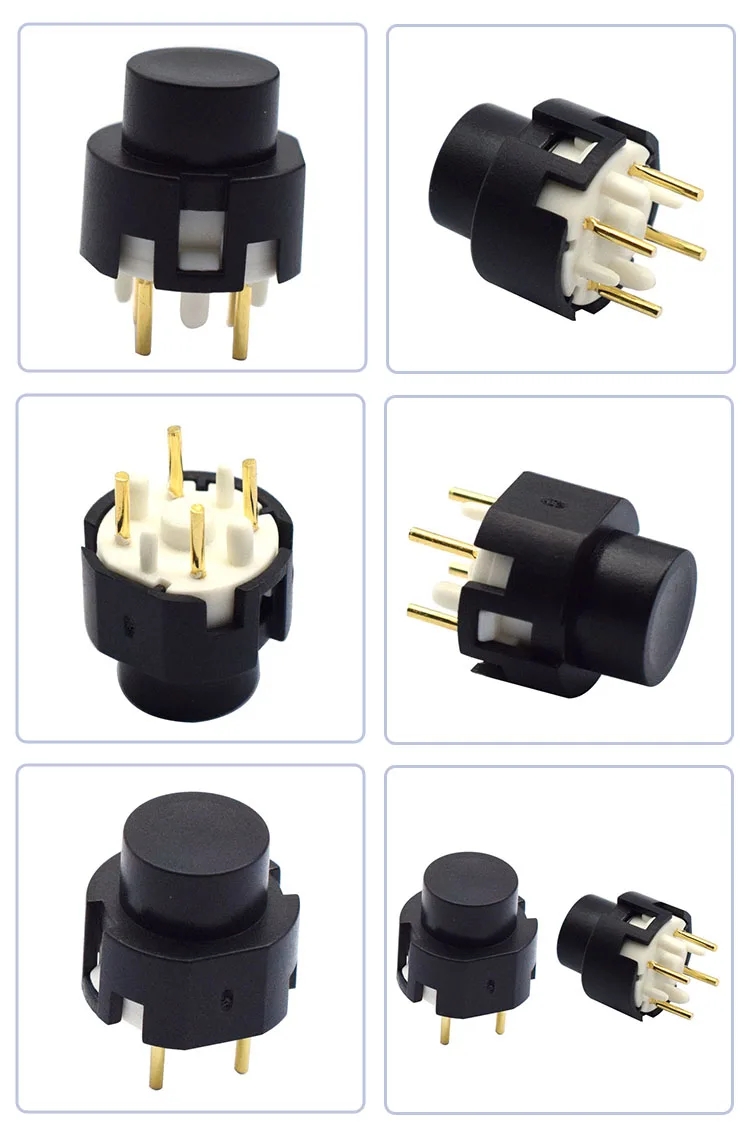

coffee maker round knob in blue /red/yellow cover tact switch dip tactile micro push button switch

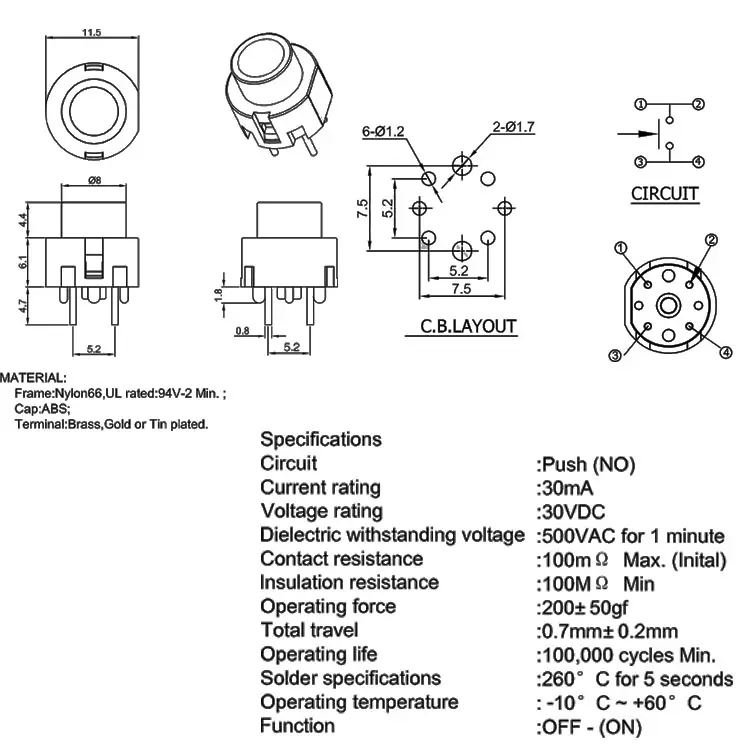

Short Description:

product name button switch
model number TS115-2X
current raing 30mA
voltage rating 30VDC
dielectric withstanding voltage 1500VAC 1min.
contact resistance 100 mΩ Max
Insulation resistance 100 MΩ Min
operating force 200±50gf
total travel 0.7±0.2mm
life ≥100000 times
Operating  Temperature -10℃~+60℃
