EVP-6AWD40 Original mini membrane switch 2x3x0.6 2 pin SMT switch for earphone

Short Description:

Product info
Item name: 2x3x0.6 tact switch
Model: TS2306A EVP-6AWD40
Rating: 50mA 12V DC
Insulation resistance: 100MW min 100V DC
Dielectric strength: 250V AC for 1 min
Contact resistance: 50mW max
Operating temp.range: -20℃ ~ +70℃
Life time: 50,000 cycles; 30,000 cycles
Operating force: 130gf;180gf,250gf
Travel: 0.25±0.1mm

Product Detail

Product Tags




Title: Original mini membrane switch 2 * 3 * 0.6 two pin SMT earphone film touch switch



Product advantages: fast delivery, free samples, waterproof grade IP67, anti penetration flux manufacturing process, products with RoHS and CE certification, laser soldering process, cycle life of more than 300000 times, small volume, high temperature resistance of patch, good press feeling and rebound, guaranteed after-sales service, technical support and good service attitude



Application fields: mobile communication products, earphone products, wearable watches, instruments and equipment, consumer electronics, household appliances, security products



Factory strengths: with 13 years of industry experience, the company has passed ISO9001 certification, a number of patent certificates, more than 5300 cooperative customers, many customers of listed companies, 106 employees, 12 hardware punches, 18 injection molding machines, 26 full-automatic assembly machines, 32 full-automatic testing machines, 21 semi-automatic testing machines, 12 life testing machines and 25 other testing equipment



1. Notification Items

② This product complies with RoHS Directive (on the restriction of the use of certain hazardous substances

in electrical and electronic equipment) (2011/65/EU).

③ The materials used in this product contain only the substances listed in the List of Existing Chemical Substances

specified in ‘Act on the Evaluation of Chemical Substances and Regulation of Their Manufacture, etc’.

1.2 Application Limits

The following shall be described for safety precaution:

[Limitation of Application]

- This product has been designed and manufactured for general electronic devices,

such as home electronics, soffice equipment, information device and communication devices.

In an event that this product is used for more sophisticated applications requiring higher safety and

reliability and its failure or malfunction of this product may impose damage to human life or property,

agreement on product specifications for approval suitable for such applications are required.

Such applications shall include the following:

aircraft equipment, aerospace equipment, disaster prevention / crime prevention equipment,

medical equipment, transportation equipment (vehicles, trains, ships, etc.), information

processing equipment that are highly publicized, and other equivalent equipment

- Regardless of its applications, in an event that this product is used for the equipment requiring

high safety levels, place protective circuits or redundant circuits and perform safety tests to improve

your products safety.

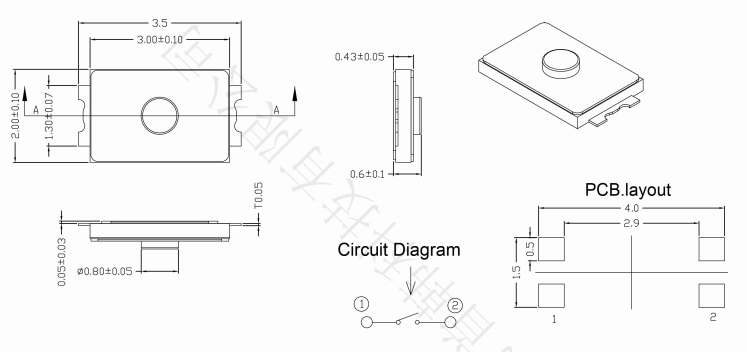

微信图片_20230316171835
