    smd tact switch patch induction table micro push button touch membrane switch

    smd tact switch patch induction table micro push button touch membrane switch Featured Image
    • smd tact switch patch induction table micro push button touch membrane switch
    • smd tact switch patch induction table micro push button touch membrane switch
    • smd tact switch patch induction table micro push button touch membrane switch

    Short Description:

    product name
    tact switch
    model number
    TS5208A 250gf
    rating
    50mA DC12V
    Contact resistance
    ≤100mΩ
    Operating force
    250±50gf
    Travel
    0.25±0.1mm
    Insulation resistance
    ≥100MΩ
    Electric strength
    250V 50HZ 1Min.
    Life
    100,000 Cycles

    Product Detail

    Product Tags

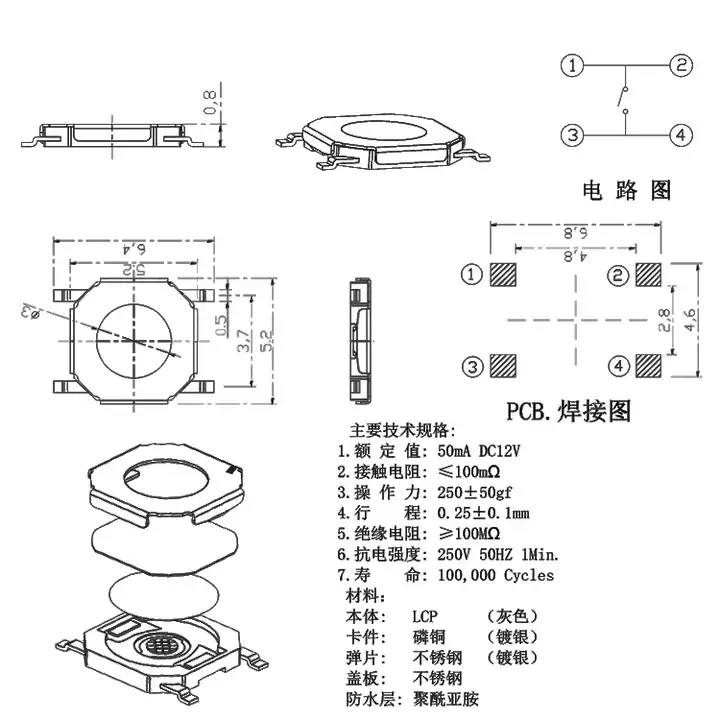

    H08d0dde30fdd40ea9fd1ae5a4c2366bfY.jpg_720x720q50
