| Product Name |

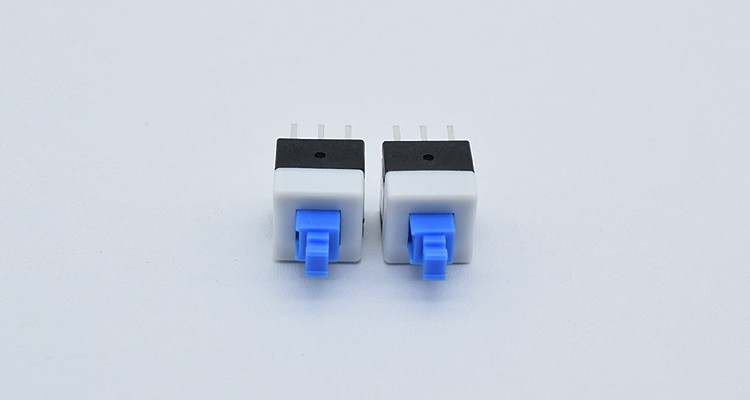

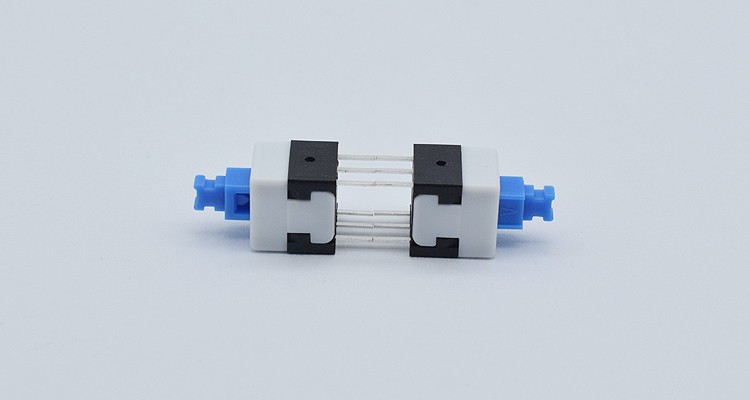

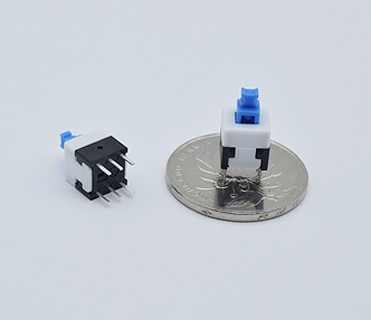

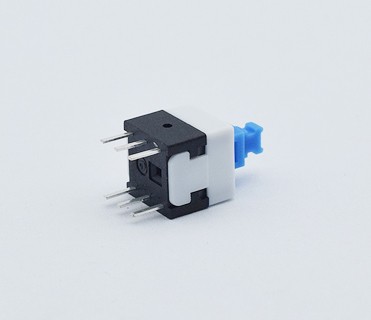

8X8 Self-locking push Switch |
| Max. Voltage |
60V |
| Max. Current |
0.1A |
| Button color |
Blue |
| temperature |
-20℃—+55℃ |
| operating force |
2.5N-4.5N |
| Certification |
Rohs |
| Cycle |
10000 cycles |
Light touch switch is good or bad influence factors, mainly lies in a light touch switch protection, weldability, conduction reliability, longevity, handle, production technology and installation feet Factors “, etc First as the pin base material, light touch switch pin base material for brass or copper phosphorus (low grade iron), to reduce the contact resistance, pin basically silver plating processing, For silver in the air SO2 gas will be oxidized, directly affect the solderability and contact resistance of the switch, so high quality light touch switch first in the pin substrate silver plating thickness and silver plating process to control in place
