| Product Name |

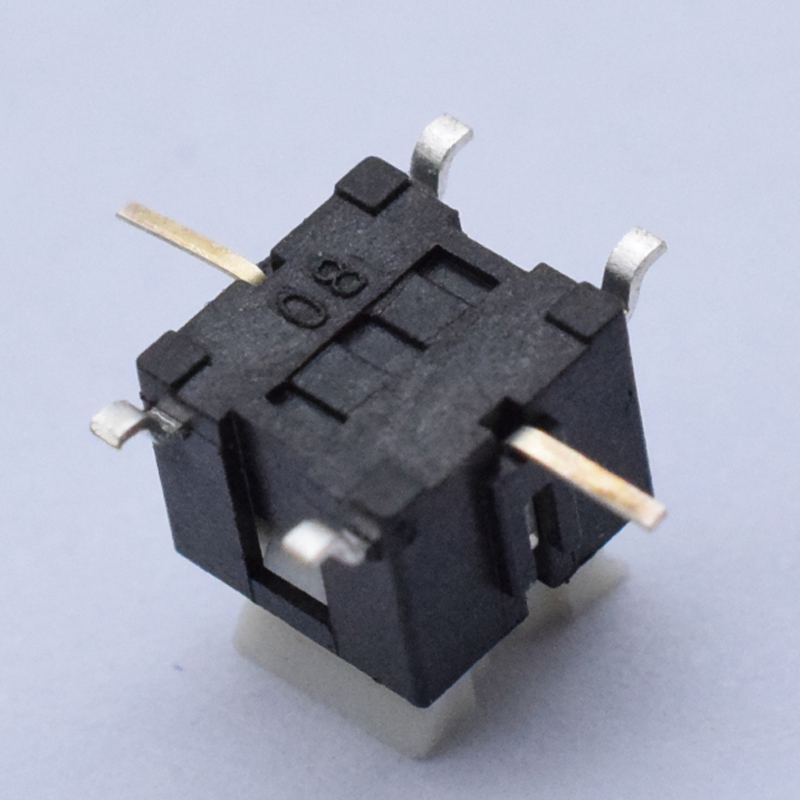

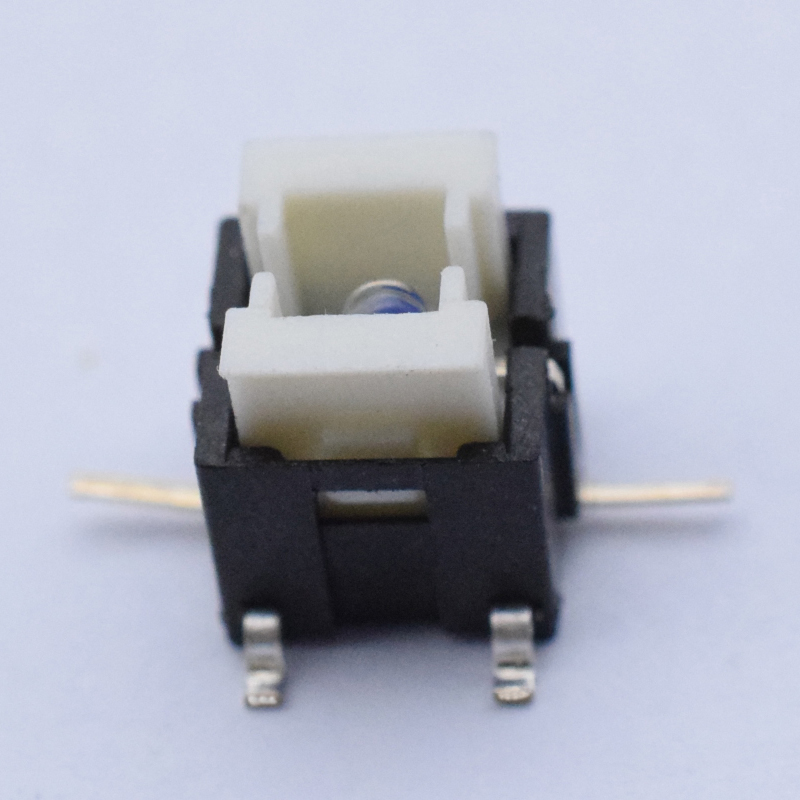

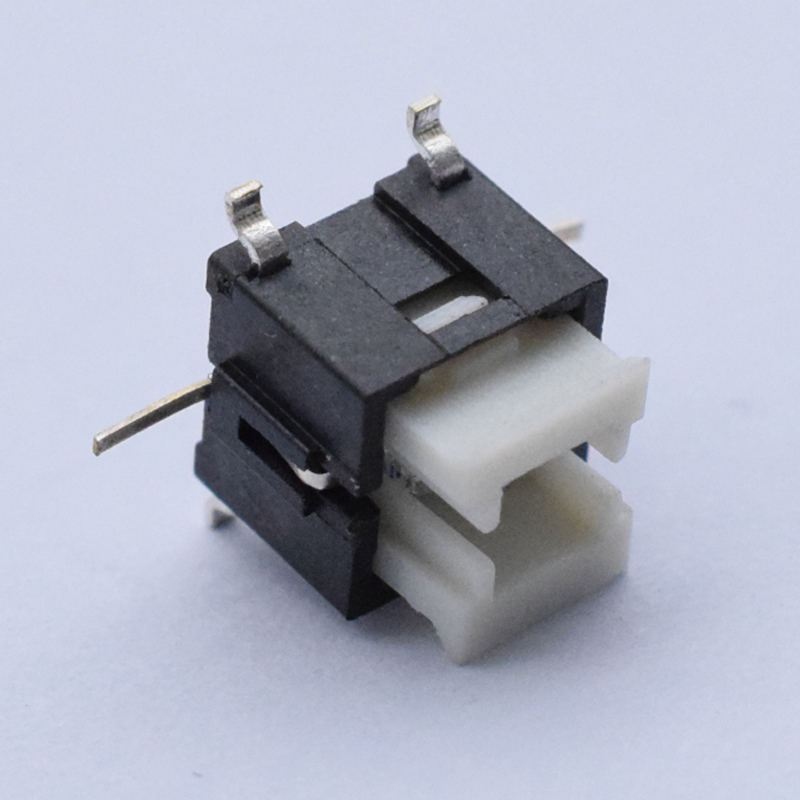

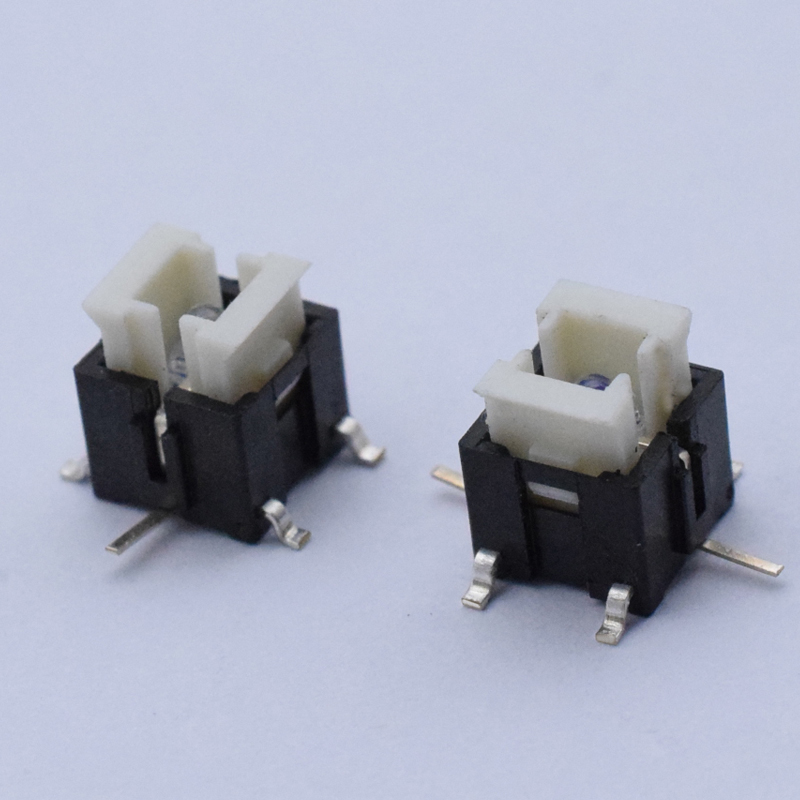

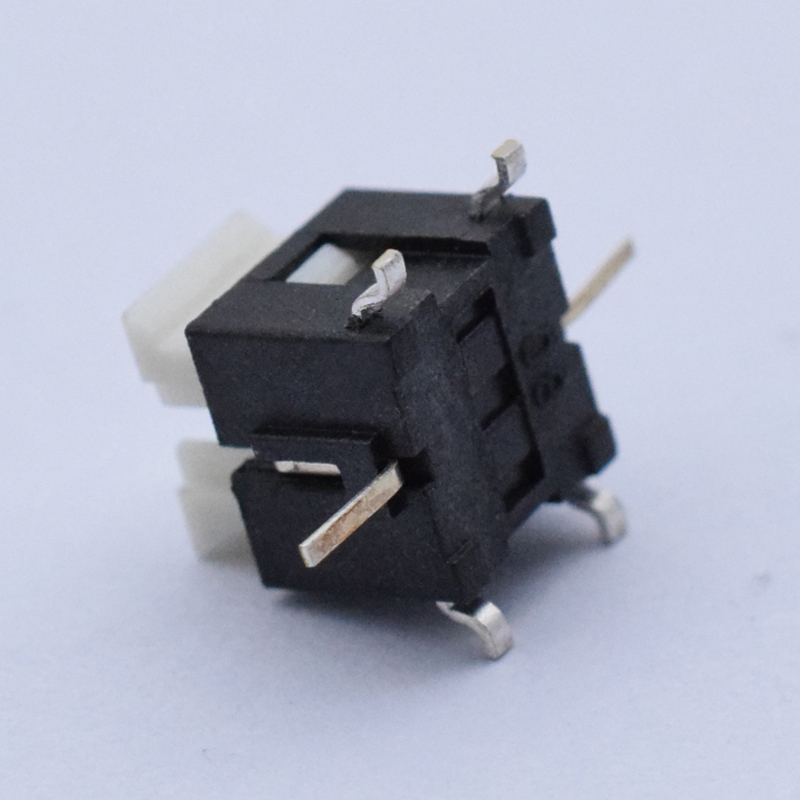

6*6 Tact Switch 6 Pin With Blue LED Light
FSMIJ63BB04 FSMIJ62BB04 |
| Size |
6*6*7.2mm |
| Max. Current |
20mA |
| Max. Voltage |
12V DC |
| operation force |
160±50gf / 250±50gf |

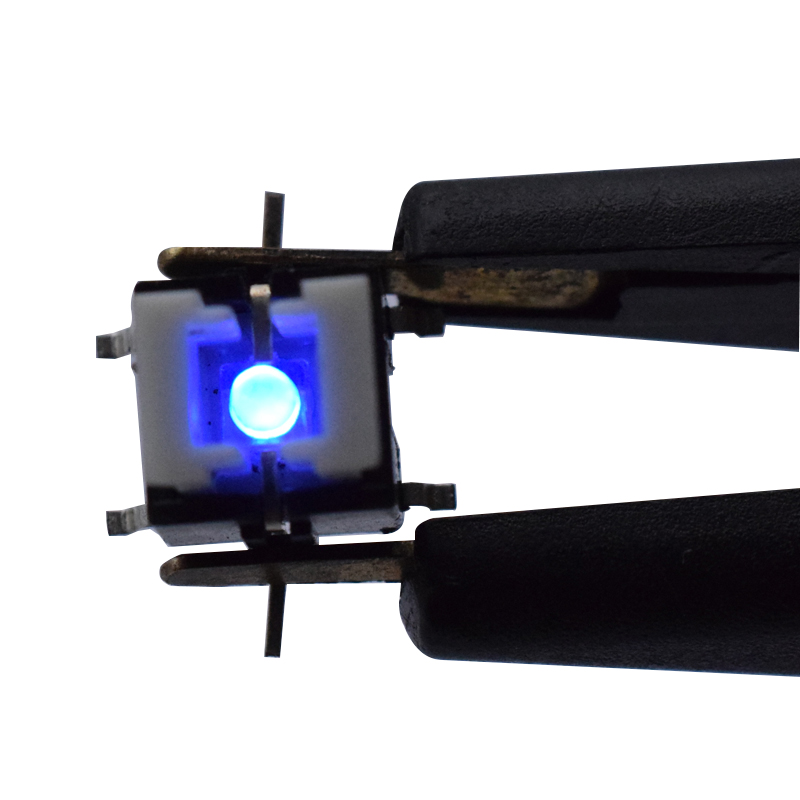

| LED |
Yes,Blue |
| Model |
TS6672TP(Blue LED) |
| Operation type |
LED Illuminated Momentary Switch |
| Durability |
100,000 cycles(15-30 cycles/min) |
| Insulation Resistance |
≥100mΩ |
| Contact Resistance |
≤100mΩ |
The light touch switch is small in size and belongs to standard parts. The size and related parameters should be combined with industry standards, and the color is relatively single. The membrane switch can be customized according to customer requirements of different sizes, appearance and color, etc., the use of more convenient, flexible. Membrane switch has good flexibility, closed structure and waterproof structure, better adaptability to the environment. Light touch switch can not generate function independently, must be used with PCB board, to form a complete open control system; Thin film switch is the panel, switch, conductive line integration together, can form a complete control system, can provide customers with an overall switch solution.
