    SMT 3.2×4.2×2.5mm 3*4*2.5mm 4 Pin Tactile Button Micro Momentary Tach Switch

    SMT 3.2×4.2×2.5mm 3*4*2.5mm 4 Pin Tactile Button Micro Momentary Tach Switch Featured Image
    • SMT 3.2×4.2×2.5mm 3*4*2.5mm 4 Pin Tactile Button Micro Momentary Tach Switch
    • SMT 3.2×4.2×2.5mm 3*4*2.5mm 4 Pin Tactile Button Micro Momentary Tach Switch
    • SMT 3.2×4.2×2.5mm 3*4*2.5mm 4 Pin Tactile Button Micro Momentary Tach Switch

    Short Description:



    Rating 3A 250VAC; 6A 125VAC; 6A 12VDC
    Mechanical life > 50000 times
    Life > 10000 times
    Contact resistance < 50MΩ
    Insulation resistance > 1000MΩ
    Rated voltage > 1500V / min
    Ambient temperature -10 ° C ~ + 85 ° C
    Storage temperature -25 ° C ~ + 85 ° C








    Product Detail

    Product Tags

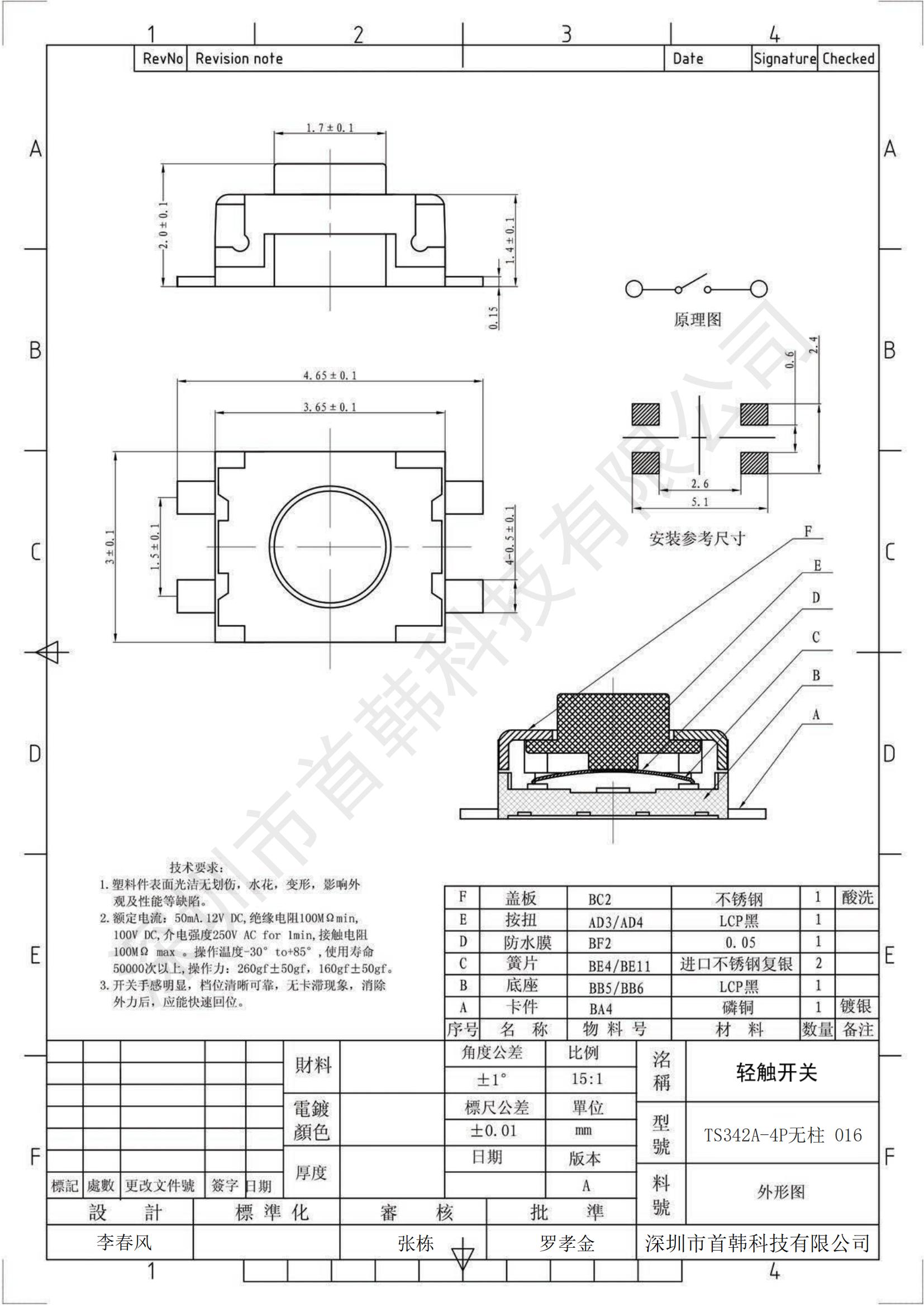

    TS342A-4P无柱 016_03
