    DC099 DC power jack socket connector threaded metal charging

    DC099 DC power jack socket connector threaded metal charging Featured Image
    • DC099 DC power jack socket connector threaded metal charging
    • DC099 DC power jack socket connector threaded metal charging
    • DC099 DC power jack socket connector threaded metal charging
    • DC099 DC power jack socket connector threaded metal charging
    • DC099 DC power jack socket connector threaded metal charging
    • DC099 DC power jack socket connector threaded metal charging

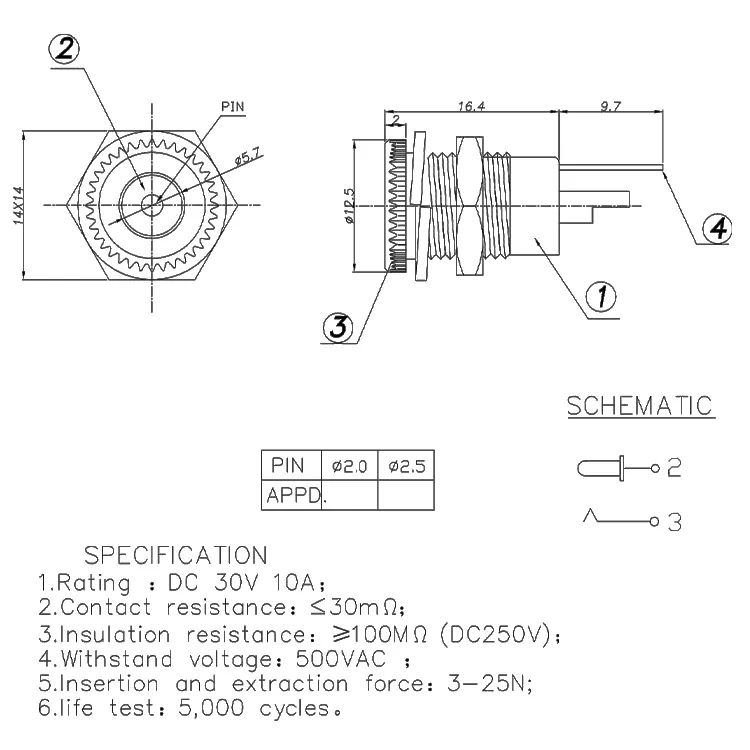

    Short Description:

    product name DC socket
    model number DC099
    rating DC 30V 10A
    contact resistance ≤30mΩ
    Insulation resistance ≥100MΩ(250VDC)
    Withstand voltage 500VAC
    insertion and extraction force 3-25N
    life 5000 cycles

    Product Detail

    Product Tags

    Main-03 Main-04 Main-05 Main-06 Main-07 Detail-04
