DC Power Jack DCsocket DC-031 4 foot plug-in 3.5 *1/ 1.3 mm DC port DC power JACK

Short Description:

Product Info
Item name: DC power socket
Model No.: DC031
Rating: AC250V 2.5A
Contact resistance: <30mΩ
Operating temp.range: -40~+70℃
Lifetime: 5,000 cycles

Product Detail

Product Tags

Titel: DC Power socket DC-031 4 foot plug-in 3.5 *1/ 1.3 mm DC port DC power socket DC031

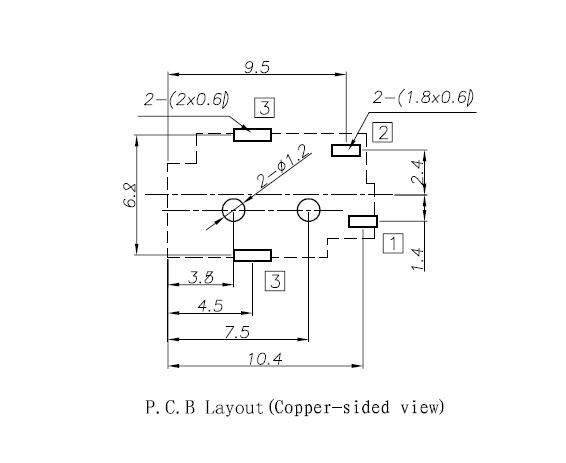

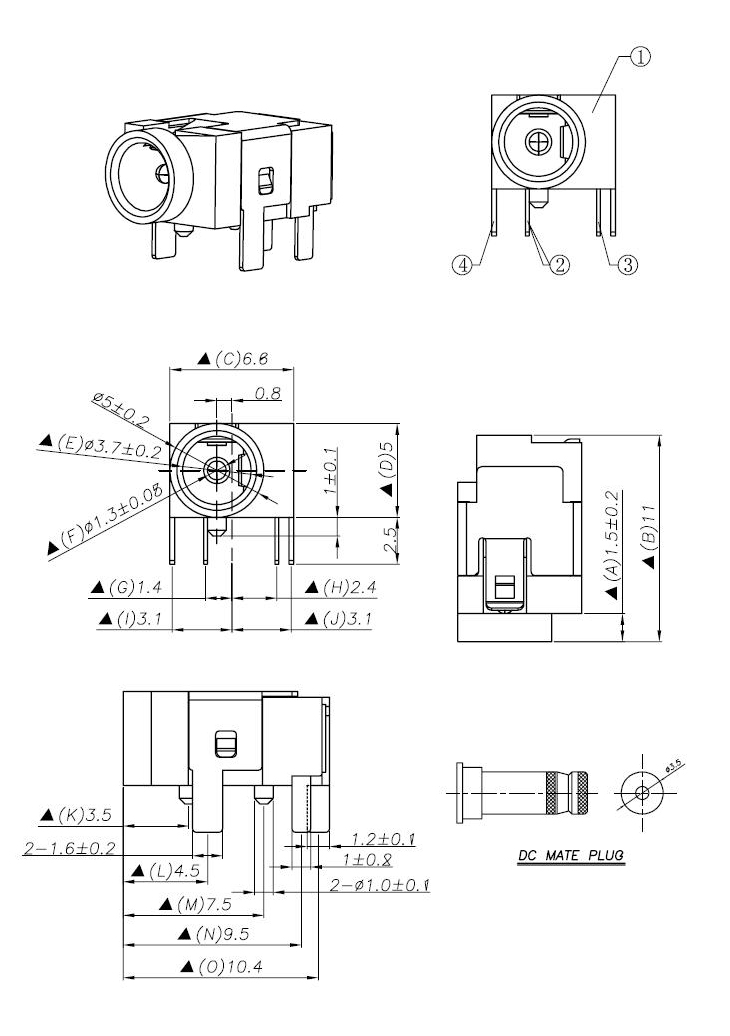

SPECIFICATION

1.Rating :D C 30V 1A;

2.Contact resistance:≤30m 2;

3.Insulation resistance∶≥100MΩ(DC250V)∶

4.Withstand voltage: 500OVAO:

5.Insertion and extraction force:3-30N;

6.life test:5,000 cycles;

Quick Details

Warranty: 3months-1year
Certification: ROHS
Customized:Yes
Network:SDK, NFC
Customized support:Software reengineering
Place of Origin:Guangdong, China
Brand Name:SHOUHAN
Model Number:DC-031
Type:DIP socket
Grounding:Standard Grounding
Rated Voltage:30V
Rated Current:0.5A
Application:Industrial, MP3,MP4,PDA,radio and audio-visual Equipment
Rated Load:DC 30V 0.5A
Housing Material:PA66/PA6T/PA9T/ PBT
Withstand Voltage:AC500V(50Hz)/min
Insulation Resistance:≥100MΩ
Temperature Range:-30~70℃
Contact Resistance:≤0.03Ω
Actuting Force:3-30N
Lifespan:5000times
1 CONTACT RESISANCE
Being measured at 1KHZsmall current connact resistance meter.
2. INSULATION RESISTANCE
Measurements shall be made following application of DC500V potenrial across terminals and across terminals and frame for 1 minute

100M min
3.WITHSTAND VOLTAGE
AC500V(50HZ or 60HZ shall be applied across terminals and across terminals and frame for one minute.
There shall be nobreakdown
4.INSERION AND WITHDRAW
Being measure at across spring piece and across matching plug for ergometer.
Insertion and extraction force
3-20N
5.TERMINALSTRENGTH
A static force of 500gf being applied inone directionon the top of terminal for
1 minute.
LIFE TEST
5000 cycles of operation at rate of 20-30 cycles per minture with unloading.
Contactresistance.40m
Drive fore 30 inital value
