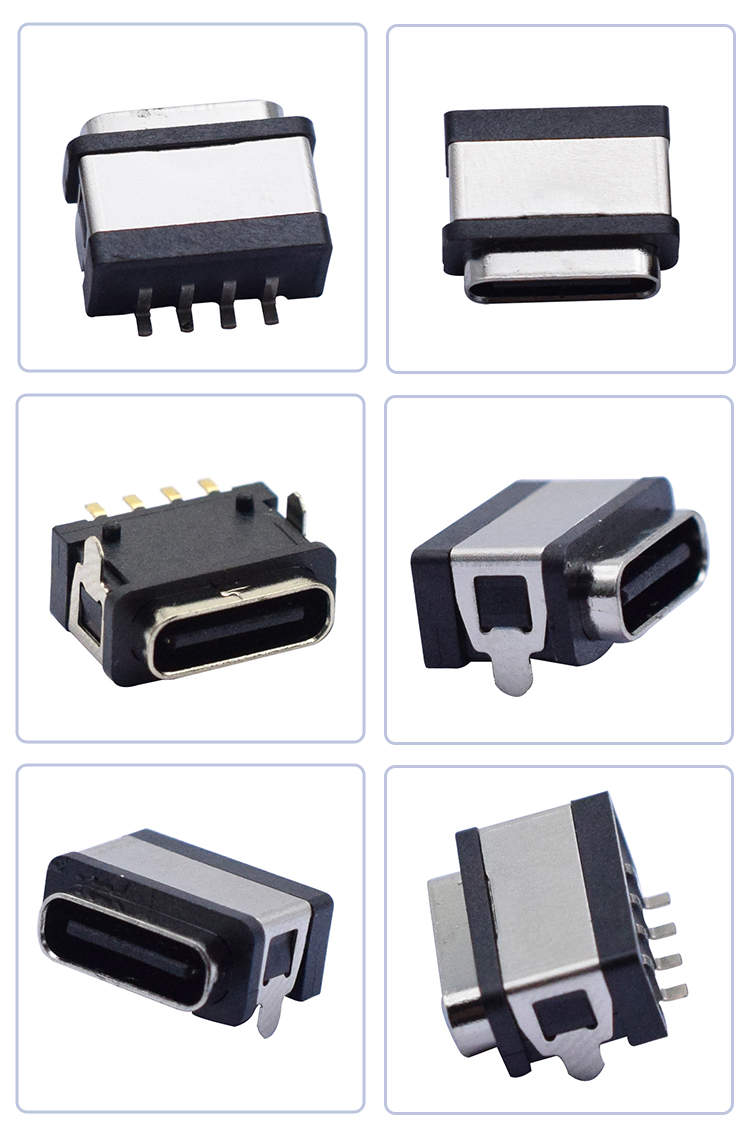

    one-stop purchase multiple models waterproof IPX7 type c 4 pin usb type c female connector sockets support customization

    one-stop purchase multiple models waterproof IPX7 type c 4 pin usb type c female connector sockets support customization Featured Image
    • one-stop purchase multiple models waterproof IPX7 type c 4 pin usb type c female connector sockets support customization
    • one-stop purchase multiple models waterproof IPX7 type c 4 pin usb type c female connector sockets support customization
    • one-stop purchase multiple models waterproof IPX7 type c 4 pin usb type c female connector sockets support customization
    • one-stop purchase multiple models waterproof IPX7 type c 4 pin usb type c female connector sockets support customization
    • one-stop purchase multiple models waterproof IPX7 type c 4 pin usb type c female connector sockets support customization

    Short Description:

    model number
    type c 4 pin



    current rating
    3.0A MAX



    Voltage
    100 VAC



    temperature range
    -30~+85℃



    contact resistance
    40 MILLIOHM MAX



    Insulation resistance
    100 MEGOHMS MIN



    Insertion force
    5-20N



    unmating force
    8-20N



    waterproof level
    IPX7

    Product Detail

    Product Tags

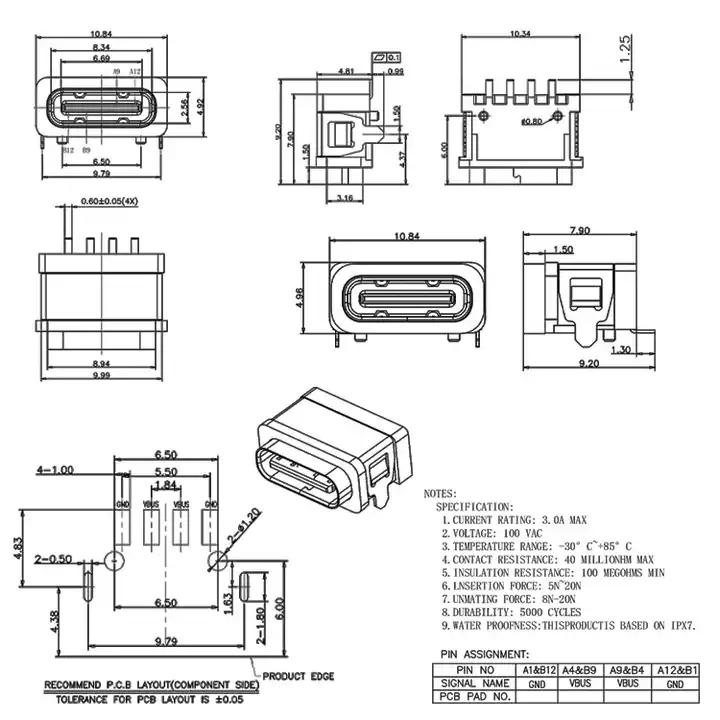

    product name type c 4 pin connector
    model number type c 4 pin
    current rating 3.0A MAX
    Voltage 100 VAC
    temperature range -30~+85℃
    contact resistance 40 MILLIOHM MAX
    Insulation resistance 100 MEGOHMS MIN
    Insertion force 5-20N
    unmating force 8-20N
    durability 5000 cycles
    waterproof level IPX7


    Hb156767c75b244129f2437da20f239478
