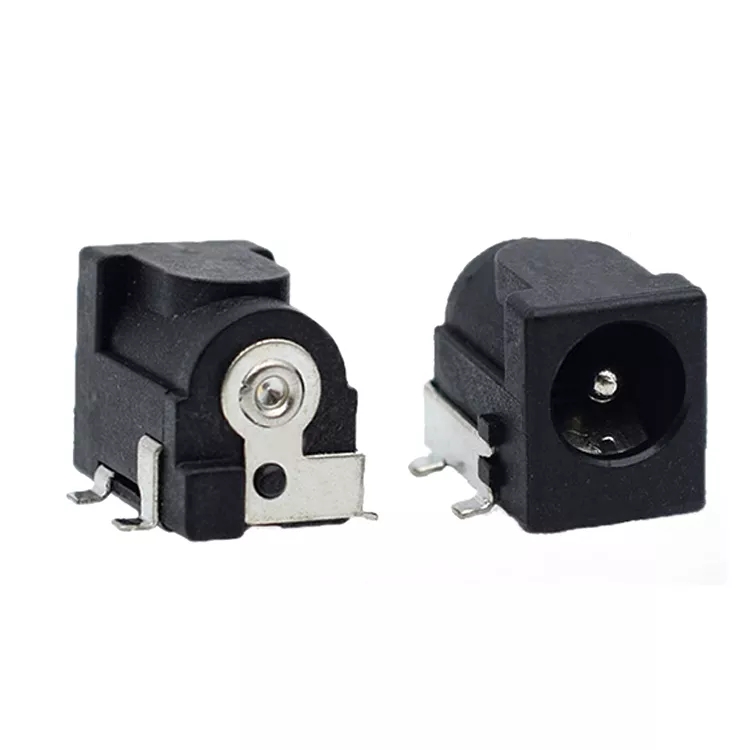

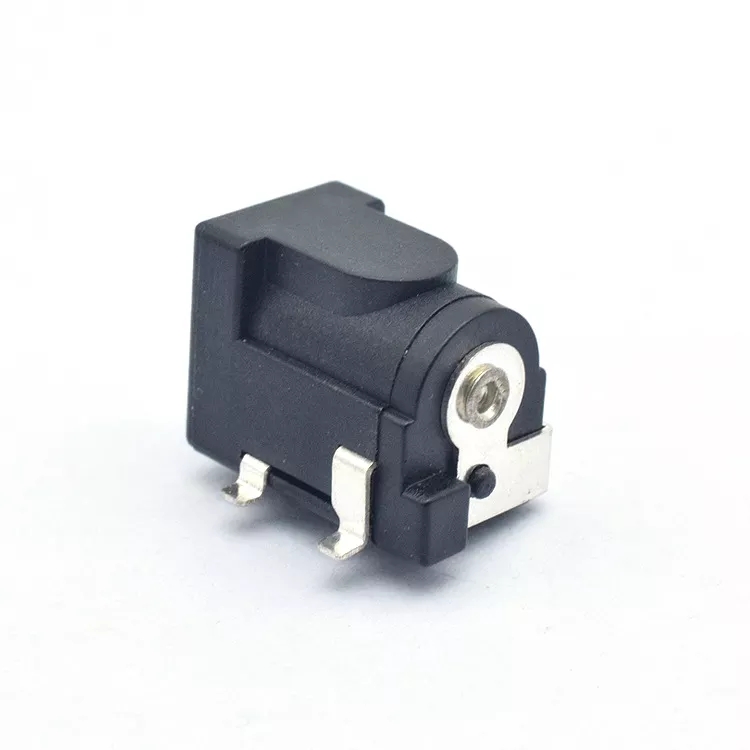

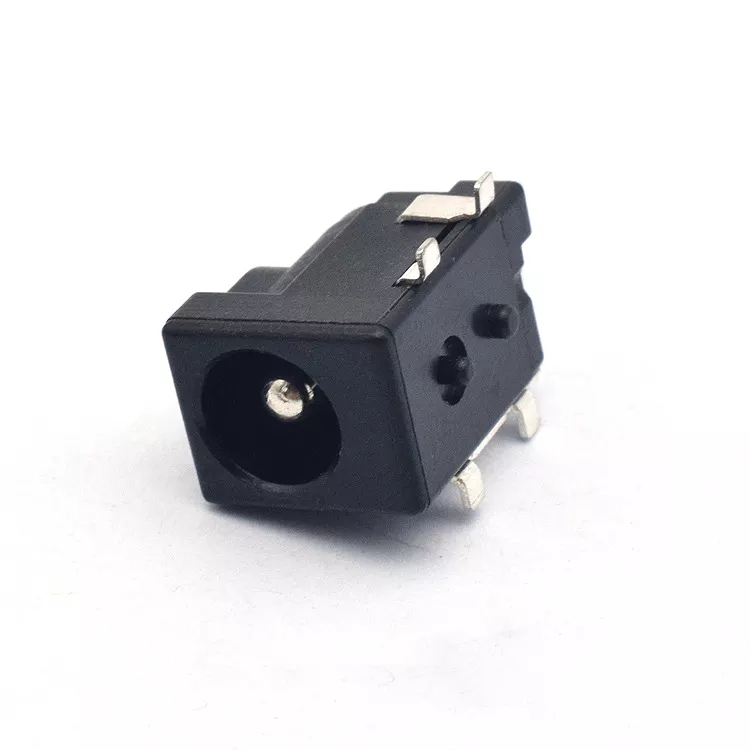

    SMD DC-005 5.5X2.1 DC005 5.5*2.1mm Connector 5.5 x 2.1 mm DC Power Jack

    SMD DC-005 5.5X2.1 DC005 5.5*2.1mm Connector 5.5 x 2.1 mm DC Power Jack Featured Image
    • SMD DC-005 5.5X2.1 DC005 5.5*2.1mm Connector 5.5 x 2.1 mm DC Power Jack
    • SMD DC-005 5.5X2.1 DC005 5.5*2.1mm Connector 5.5 x 2.1 mm DC Power Jack
    • SMD DC-005 5.5X2.1 DC005 5.5*2.1mm Connector 5.5 x 2.1 mm DC Power Jack
    • SMD DC-005 5.5X2.1 DC005 5.5*2.1mm Connector 5.5 x 2.1 mm DC Power Jack
    • SMD DC-005 5.5X2.1 DC005 5.5*2.1mm Connector 5.5 x 2.1 mm DC Power Jack

    Short Description:

    Product Name Power socket dc power jack
    Model DC050
    Cycle 3000/5000cycles
    operating force 3N-20N
    temperature -30℃-+85℃
    voltage rating 12V/24V
    rated current 1A/3A/5A

    Product Detail

    Product Tags

    Product Name

     DC Power Jack DC050 DC jack female socket SMD/SMT
     Model  DC050
     Life  5,000 times
     Operation strenght  3-20N
     Temperature  -25℃—+85℃
     Contact resistance  ≤30mΩ
     Insulation resistance  ≥100mΩ


    2
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
