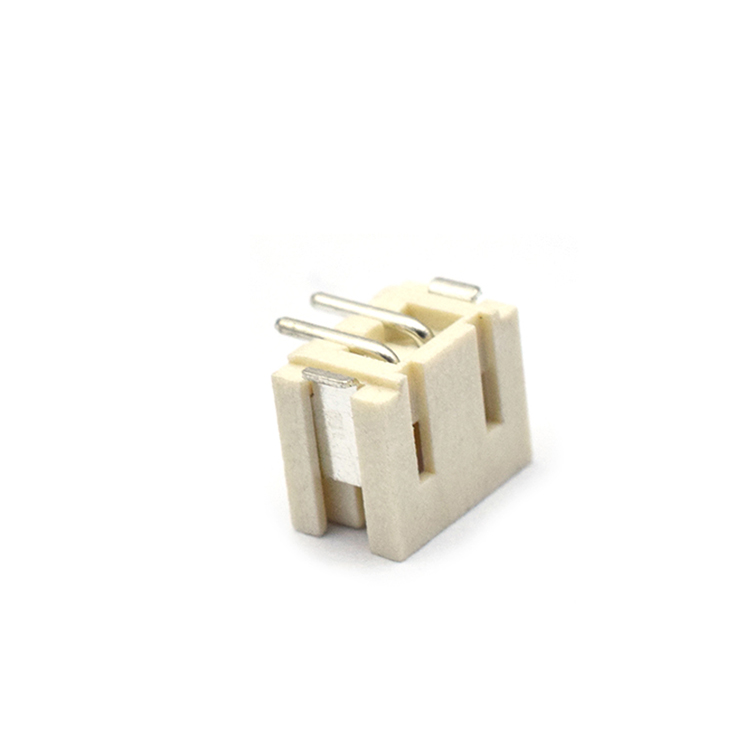

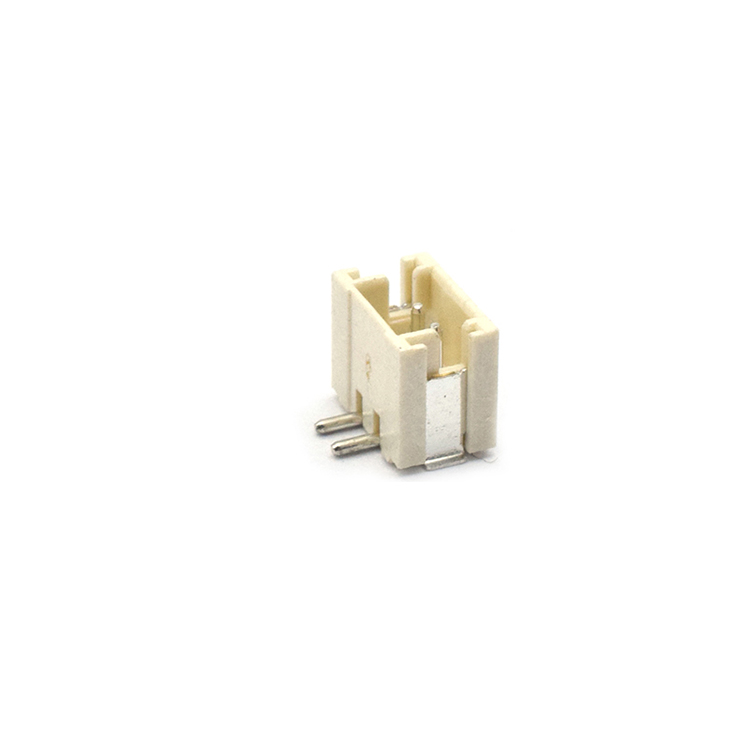

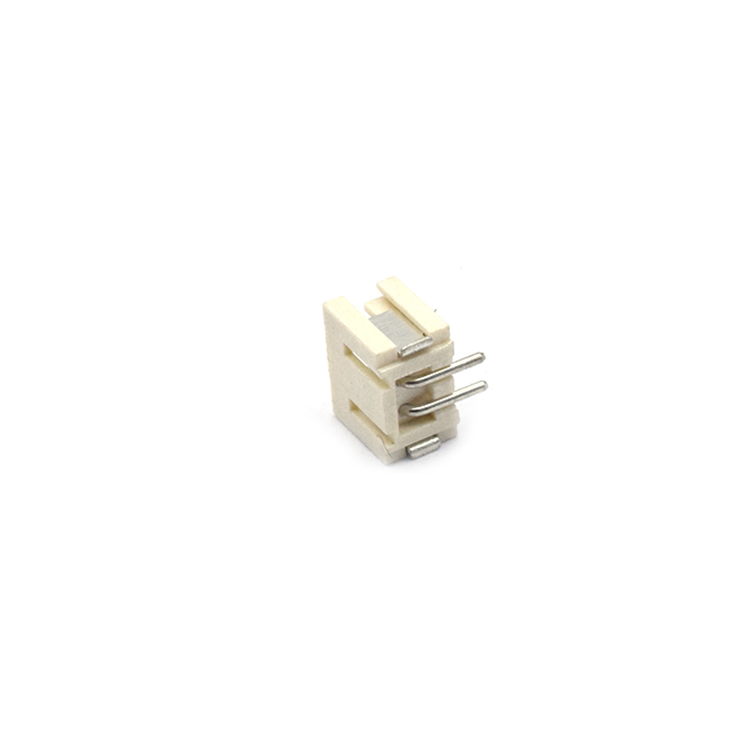

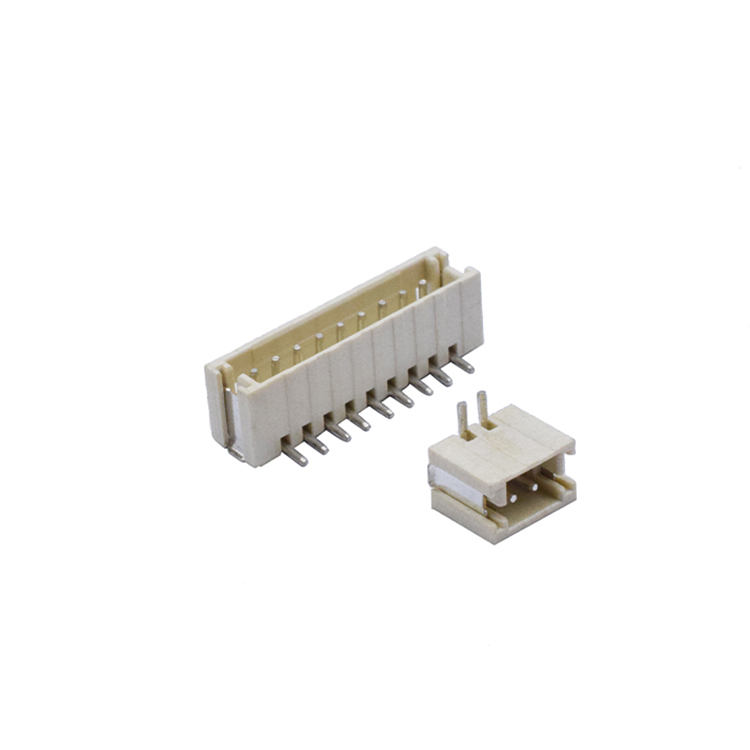

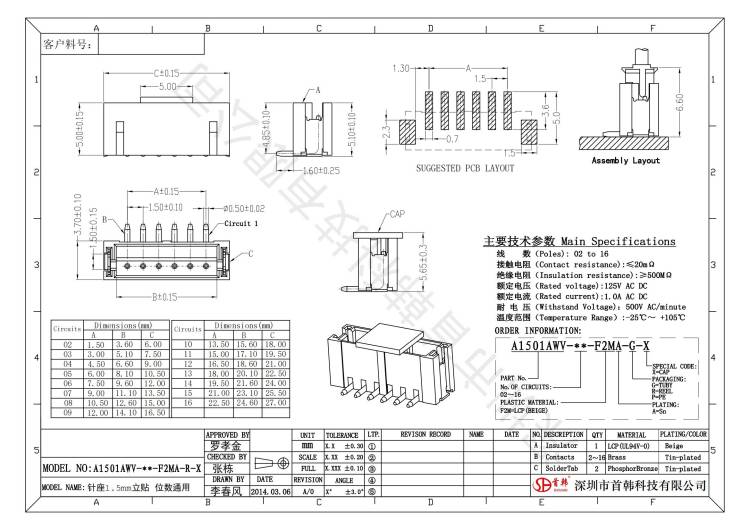

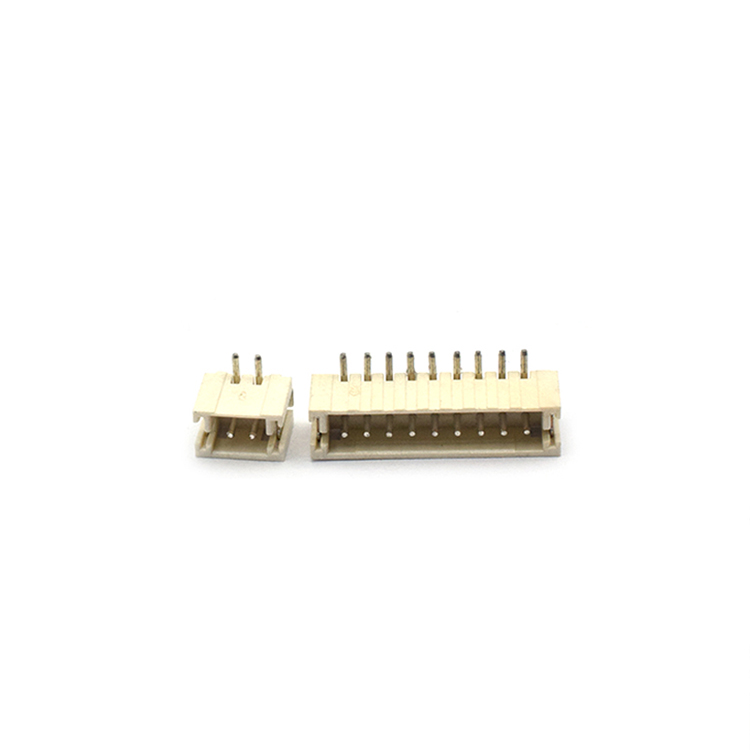

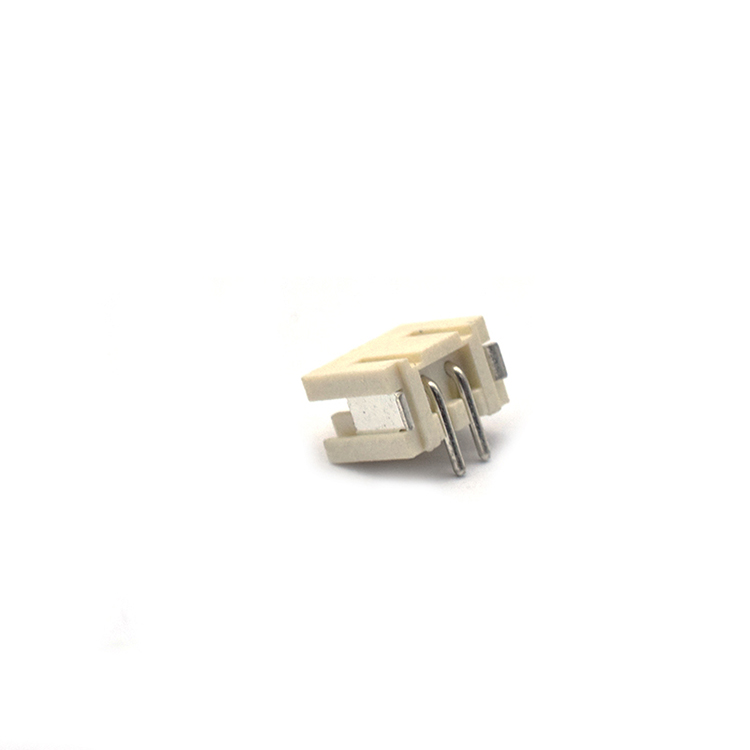

2 PIN TO 16 PIN Wafer Connector ZH 1.5mm Vertical Female SMD Socket 1A 125V

Material

• Housing: Nylon46 UL94V-0.
• Color: Beige Color.
• Contact: Phosphor bronze 0.3mm.
• Solder tabs:Phosphor bronze 0.25mm.
• Plating: Tin Plating on Contact.
• Tin Plating on Solder Tail.

Electrical Specification

• Operation Voltage: 125V AC/DC.
• Current Rating: 1 Ampere AC/DC per Contact.
• Contact Resistance: 20mΩ Max.
• Insulation Resistance: 500MΩ Min.
• Dielectric Withstanding Voltage: 500V AC per Minute.

Environmental

• Operating Temperature: -25°C to +105°C.
• Applicable Wire Sizes:AWG#28～#32
• Applicable PC board thickness:0.6~1.2mm
• Package: 1,000pcs/Reel.
• RoHS Compliance.
