2 PIN TO 16 PIN Type L Wafer Connector ZH 1.5mm Horizontal Female SMD Socket 1A 100V

Short Description:

  • Order Information:WT150LW-** * *-**
  • 1.50mm SMT Horizontal Wire to Board
  • 02~16 Pins
  • Horizontal
  • Nylon46 UL94V-0
  • Beige Color
  • 1K/Reel

Product Detail

Product Tags

Product Name wafer connector

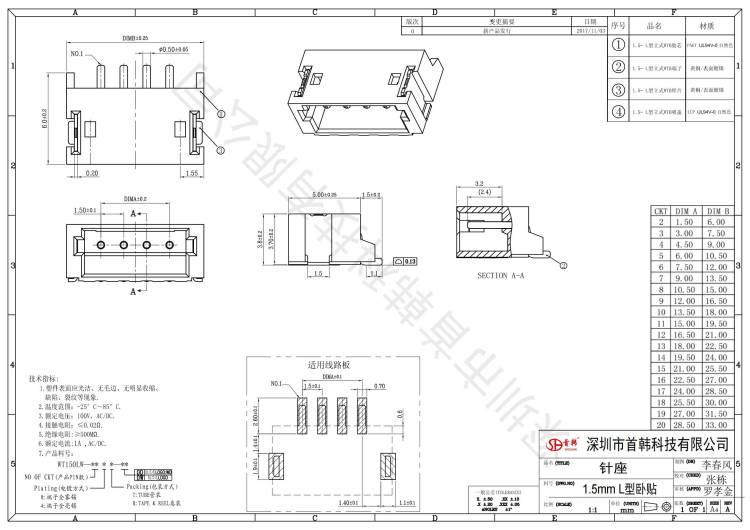

Model WT150LW-** * *-**Reference drawings
Certification Rohs
Rating 100VAC 1A
PIN 2~16 pin
CONTACT RESISTANCE 20m ohm max
INSULATION RESISTANCE 500M ohm min
WITHSTAND VOLTAGE AC 800V for 1 minute

Electrical Specification

  • Operation Voltage: 100V AC/DC.
  • Current Rating: 1 Ampere AC/DC per Contact.
  • Contact Resistance: 20mΩ Max.
  • Insulation Resistance: 500MΩ Min.
  • Dielectric Withstanding Voltage: 800V AC per Minute.

Environmental

  • Operating Temperature: -25°C to +85°C.
  • Applicable Wire Sizes:AWG#26~#32
  • Applicable PC board thickness:0.6~1.2mm
  • Package: 1,000pcs/Reel.
  • RoHS Compliance.

Material

  • Housing: Nylon46 UL94V-0.
  • Color: Beige Color.
  • Contact: Phosphor bronze 0.3mm.
  • Solder tabs:Phosphor bronze 0.25mm.
  • Plating: Tin Plating on Contact.
  • Tin Plating on Solder Tail.
