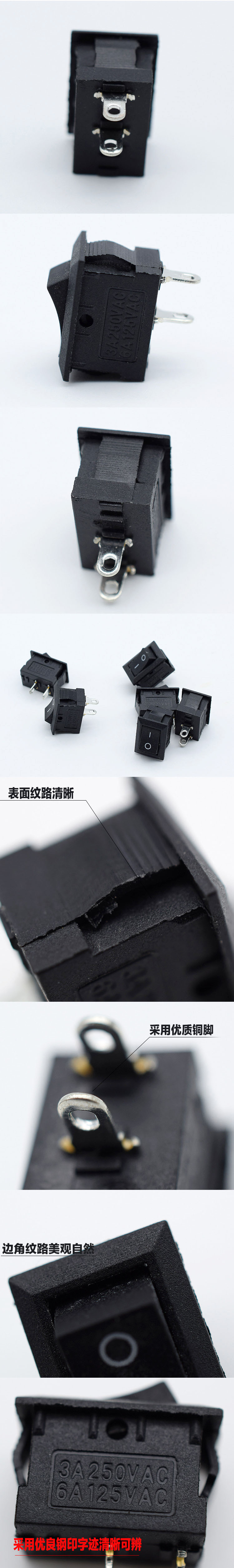

Mini 15*10mm 2 PIN Boat Rocker Switch SPST on off 2 way rocker switch
Rocker switch product advantages:
KCD11-2P on-off single pole rocker switch. Black case, copper pin, solder lug or straight pc terminals,
silver or gold plated terminals. Ratings up to 3 amps.Products with RoHS test report and CE certification,
10000 times cycle life
Application fields:
Our switches are widely used in the fields of small household products, communication equipment, energy
generator, electric tools, table lamp, electric motor, electric motor car, electric toy, medical facilities, socket, etc
Factory strengths:
With 13 years of industry experience, the company has passed ISO9001 certification, a number of patent
certificates, more than 5000 cooperative customers, many customers of listed companies, 106 employees,
12 hardware punches, 18 injection molding machines, 26 full-automatic assembly machines, 32 full-automatic
testing machines, 21 semi-automatic testing machines, 12 life testing machines and 25 other testing equipment
Our rocker switch can pass the below tests:
1) humidity test
the jack shall be stored at a temperature
of 40±2℃ and a humidity of 90%to 96% for 96 hr, then the jack shall be maintained at standard atmospheric
condition for 1 hr for other procedures
2) Temperature Cycling test
DC Voltage 1.5 times as much as rated voltage shall be applied continuously between adjacent at 60±2℃ and
90~95％RH for 500hours, the switch shall be allowed to stand under normal temperature and humidity conditions
for 1hour, and measurement shall be made within 1hour After that, water drops shall be eliminated.After test contact
resistance:100mΩMax, Insulation resistance:10mΩMin, rocker switch shall be free from abnormalities in appearance construction.
3) Salt mist test
The switch shall be checked after following test:
(1) Temperature:35±2℃
(2) Salt solution:5±1％(Solids by mass)
(3) Duration: 24±1hour
After test, salt deposit shall be removed by running water, and no remarkable corrosion
Shall be recognized in metal part.
4) Cycle life test
10,000 cycles of operation shall be performed continuously at a rate of 80cycles per minute with
3A 250VAC, 6A 125VAC
