    A male 90 degree usb connector USB 2.0 Male A Type USB PCB Connector Plug Male USB Connectors 4Pins

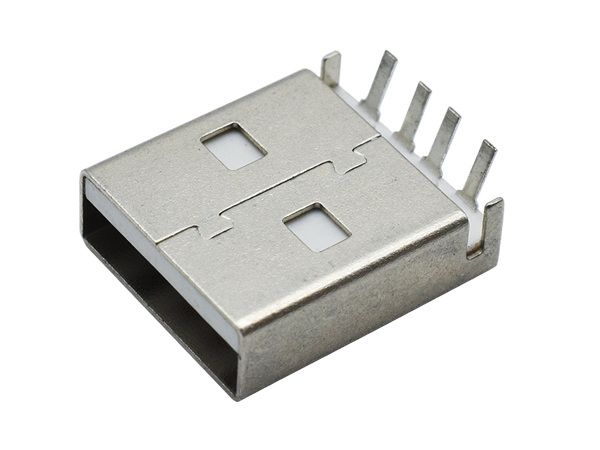

    A male 90 degree usb connector USB 2.0 Male A Type USB PCB Connector Plug Male USB Connectors 4Pins Featured Image
    • A male 90 degree usb connector USB 2.0 Male A Type USB PCB Connector Plug Male USB Connectors 4Pins

    Short Description:

    Product description
    Item name: A male 90 degree usb connector
    Rating: DC 30V 0.2A
    Insulation resistance: ≥1000mΩ min. 500V DC
    Dielectric strength: 250V AC for 1 min
    Contact resistance: ≤50mΩ
    Insertion force: ≤35N
    Extraction force: ≥10N
    Usage:
    -Mainly used in high end industries,such as digital camera interface products,computer accessories,electronic toys,mobile phone charging interface and other products need to charge.

    Product Detail

    Product Tags

    Quick Details

    Place of Origin:
    Guangdong, China
    Brand Name:
    OEM/SHOUHAN
    Model Number:
    USB Connector smd
    Type:
    usb
    Application:
    USB
    Gender:
    Male
    Pins:
    4p
    Product name:
    USB Connector a Male 90 Degree Black Acrylic 4 Pin USB Socket
    Item:
    USB CONNECTOR
    Connector type:
    male Terminals
    Color:
    Silver
    Pin:
    4pin
    Insulation Resistance:
    100M Ohm/Min
    Dielectric withstand voltage:
    500VAC
    Contact resistance:
    40m Ohm Max
    Operating force:
    0.6kgf~2.0kgf
    Life:
    5,000 cycles
