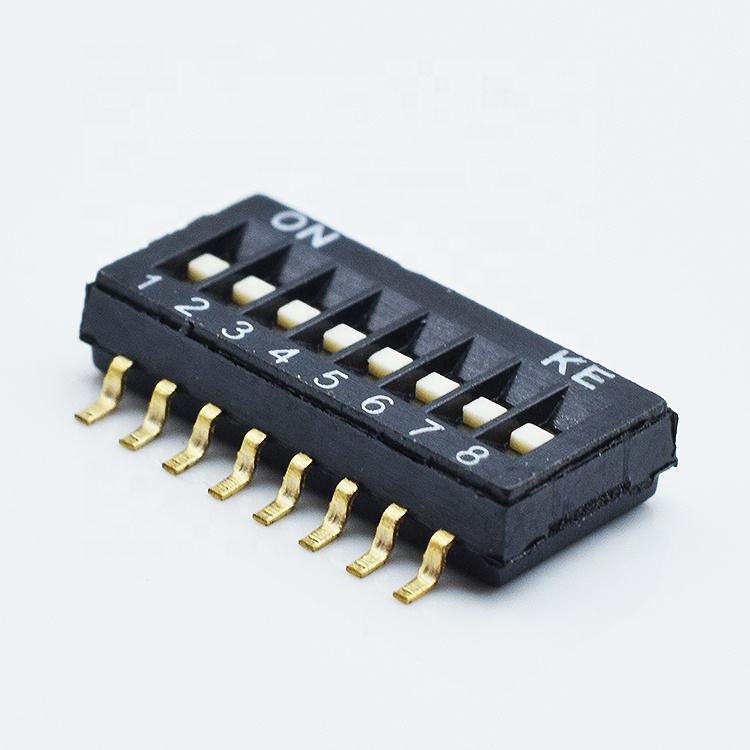

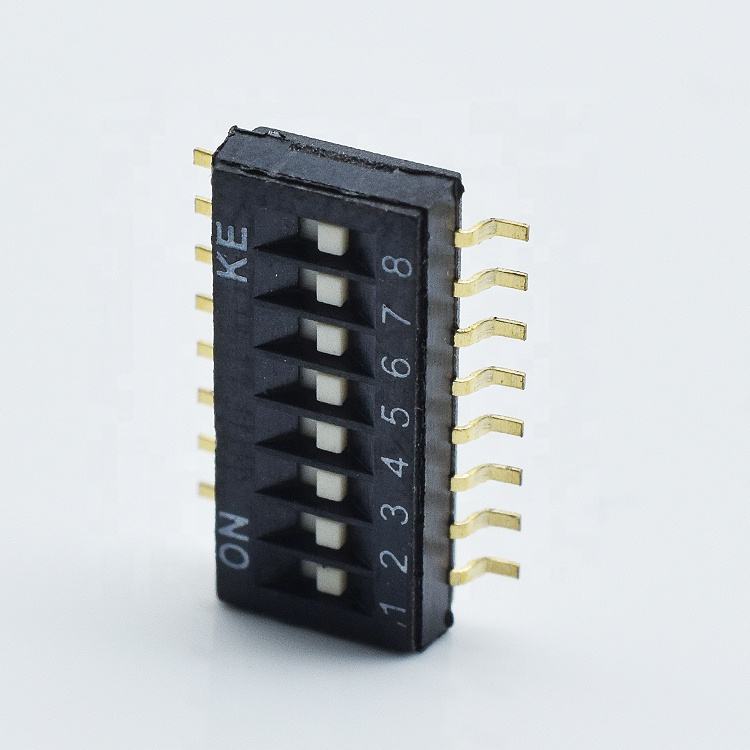

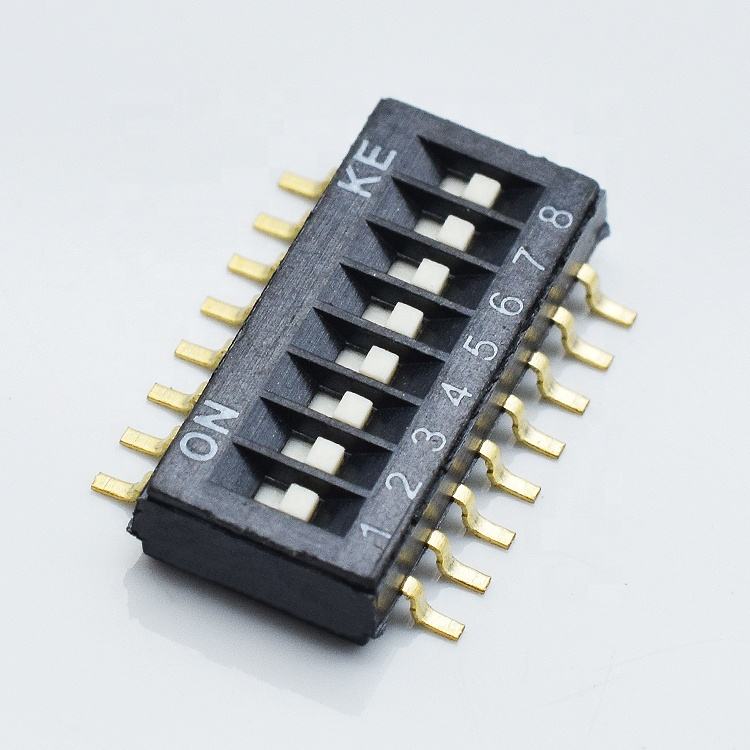

smd dip switch 8 pin 1.27mm SMD DIP switch setting dip switch

Short Description:

Place of Origin Guangdong, China

Brand Name Shouhan DIP switch

Model Number 1.27mm DIP SWITCH

Max. Current 100mA

Product name smd dip switch 8 pin 1.27mm SMD DIP switch setting dip switch

Electrical life 3000 Cycles

Insulation resistance (At 500VDC) 500MΩ/min

Dielectric resistance 500VAC, 1 min

Operating force 1000gf max

Opetation temperature 20℃~+70℃

Stodge temperature -40℃~+85℃

Base UL94V-O PBT Thermoplaslic black

Cover UL94V-O PBT Thermoplastic

Button UL94V-O PA66
