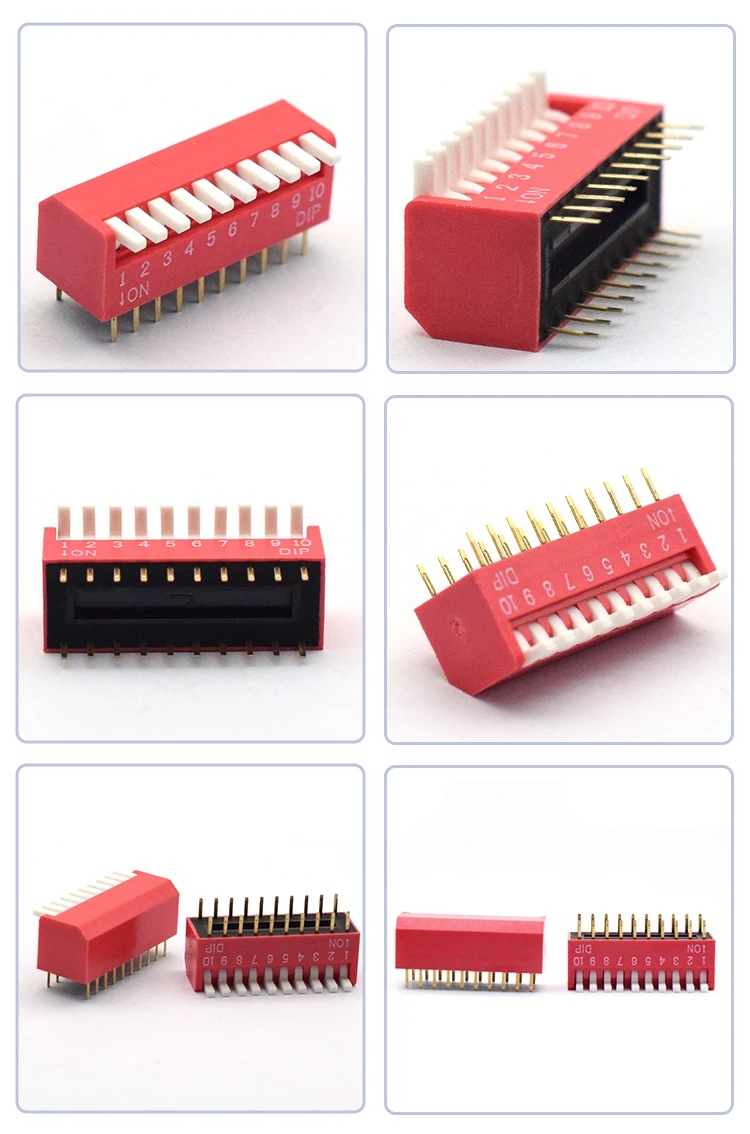

    1-12 Pin gold plated PIN 1.27/2.54mm dip dial switch 50VDC support customization

    1-12 Pin gold plated PIN 1.27/2.54mm dip dial switch 50VDC support customization Featured Image
    • 1-12 Pin gold plated PIN 1.27/2.54mm dip dial switch 50VDC support customization
    • 1-12 Pin gold plated PIN 1.27/2.54mm dip dial switch 50VDC support customization
    • 1-12 Pin gold plated PIN 1.27/2.54mm dip dial switch 50VDC support customization
    • 1-12 Pin gold plated PIN 1.27/2.54mm dip dial switch 50VDC support customization
    • 1-12 Pin gold plated PIN 1.27/2.54mm dip dial switch 50VDC support customization

    Short Description:

    product name DIP Switch
    model number HJ12-DP-08
    Max. Voltage 50VDC
    Max. Current 100mA
    Number of Positions 1/2/3/4/5/6/7/8/9/10/12 positions
    Color Red Blue Black
    Material Plastic,copper
    Operation Temperature -25 ℃ to 85 ℃
    Pitch 1.27 mm / 2.54mm

    Product Detail

    Product Tags
