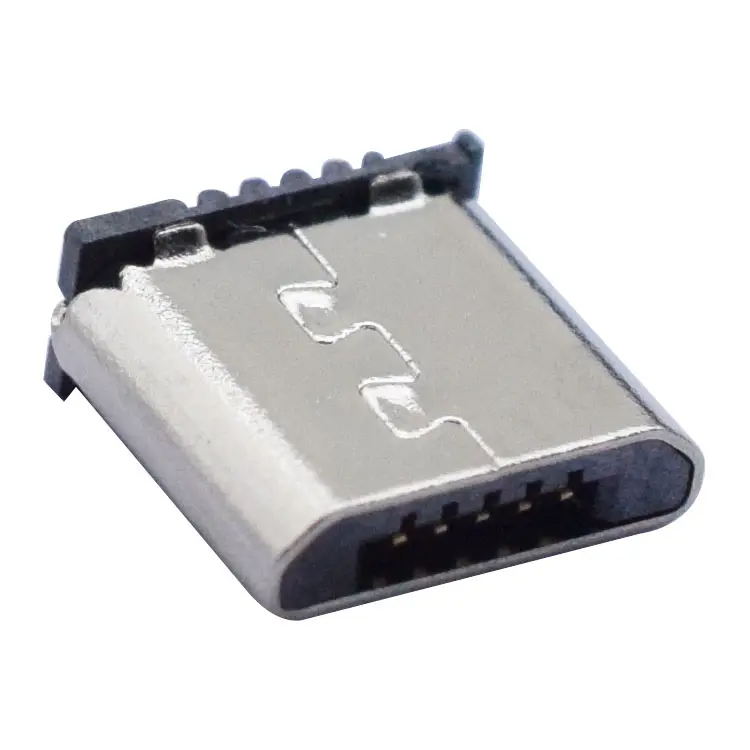

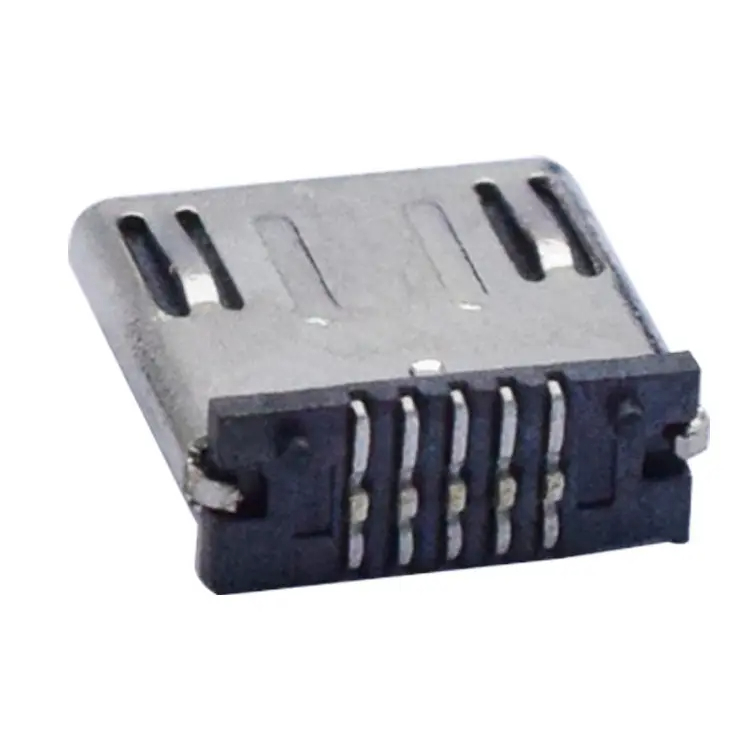

    5 PIN Vertical Patch Micro Usb Male Socket Connector

    5 PIN Vertical Patch Micro Usb Male Socket Connector Featured Image
    • 5 PIN Vertical Patch Micro Usb Male Socket Connector
    • 5 PIN Vertical Patch Micro Usb Male Socket Connector
    • 5 PIN Vertical Patch Micro Usb Male Socket Connector
    • 5 PIN Vertical Patch Micro Usb Male Socket Connector
    • 5 PIN Vertical Patch Micro Usb Male Socket Connector

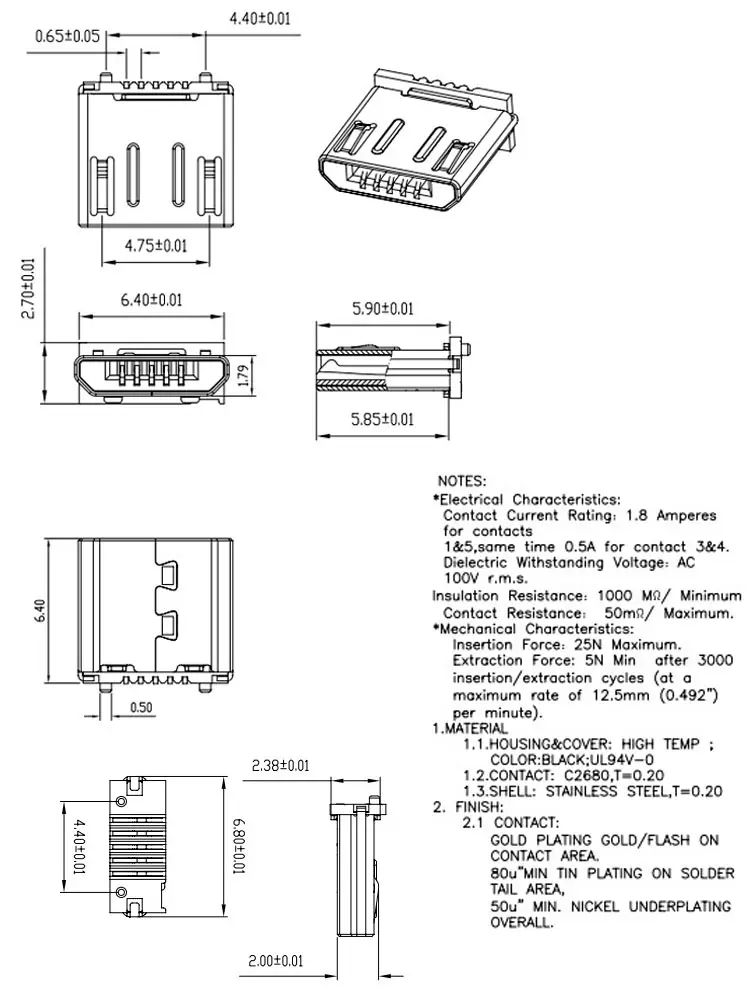

    Short Description:

    product name micro usb male connector
    model number MICRO USB 5P
    contact current rating 1.8 Amperes for contacts
    dielectric withstanding voltage AC 100V
    Insulation resistance 1000MΩ Min
    contact resistance 50 MΩ Max
    Insertion force 25N
    extraction force 5N

    Product Detail

    Product Tags

    Main-02 Main-06 Main-01
