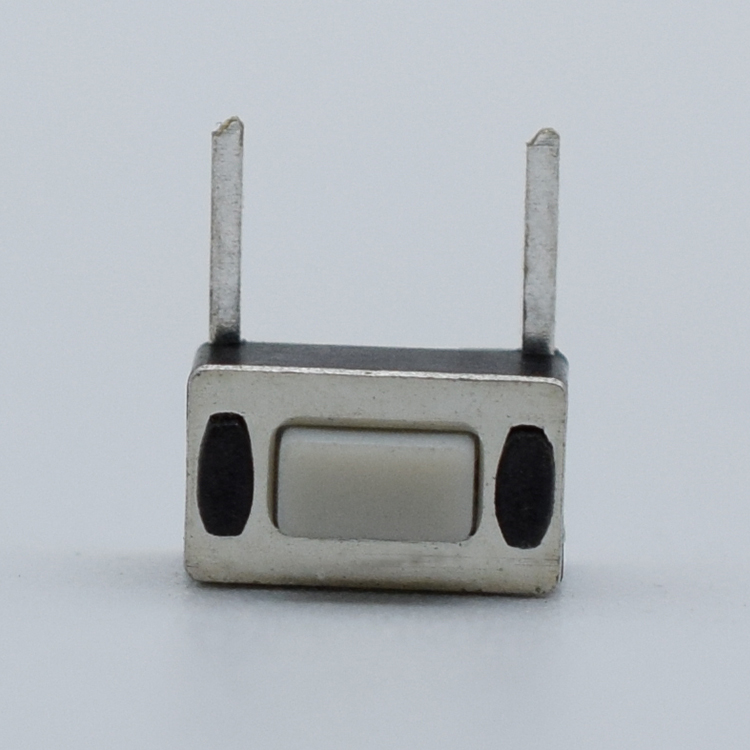

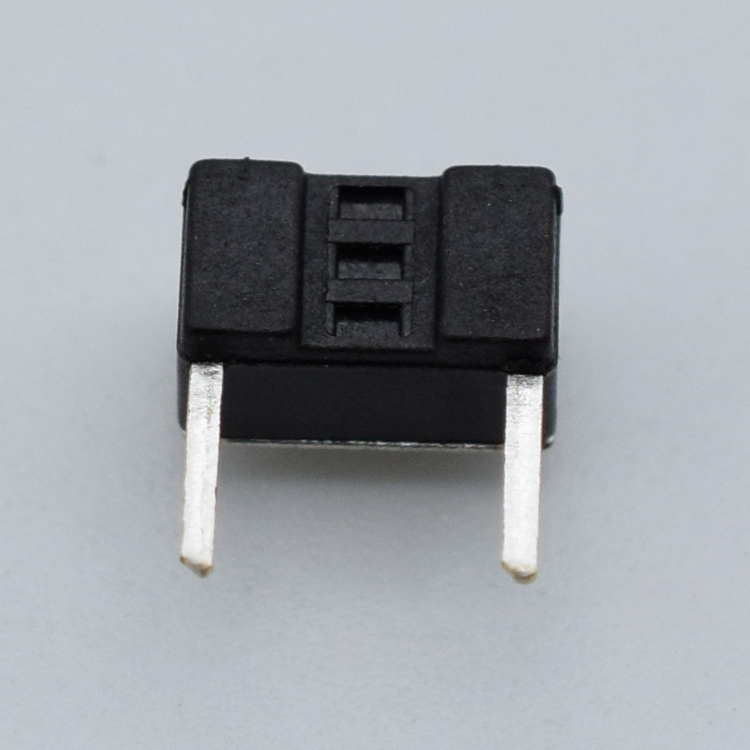

3×6 Tactile Switch TS3643B2J Tact Switch DIP Side Press 2 Pin

Short Description:

Certification:ROHS

Whether the smart:NO

Place of Origin:Guangdong, China

Brand Name:SHOUHAN

Model Number:TS3643B2J

Protection Level:IP00

Max. Current:50mA

Max. Voltage:12VDC

LED:Other

Product name:4 pin DIP tactile switch 6x6mm

Operating Temperature Range:-20℃~+70℃

Ratings:12V DC, 50mA

Contact Resistance:≤100m Ω

Insulation Resistance:≥100M Ω

Dielectric voltage proof:250V AV (50HZ or 60HZ) for 1 min

Operating Force:260±50gf

Full Travel:0.25±0.1mm

Stem Strength:20N.min

Operation life:30,000Cycles

Send email to us

Product Detail

Product Tags

The 3×6 Tactile Switch is meticulously engineered to provide a satisfying tactile feedback, ensuring precision and accuracy with every press. Its smooth operation and high durability make it an ideal choice for various applications, including consumer electronics, automotive systems, medical devices, and industrial equipment.

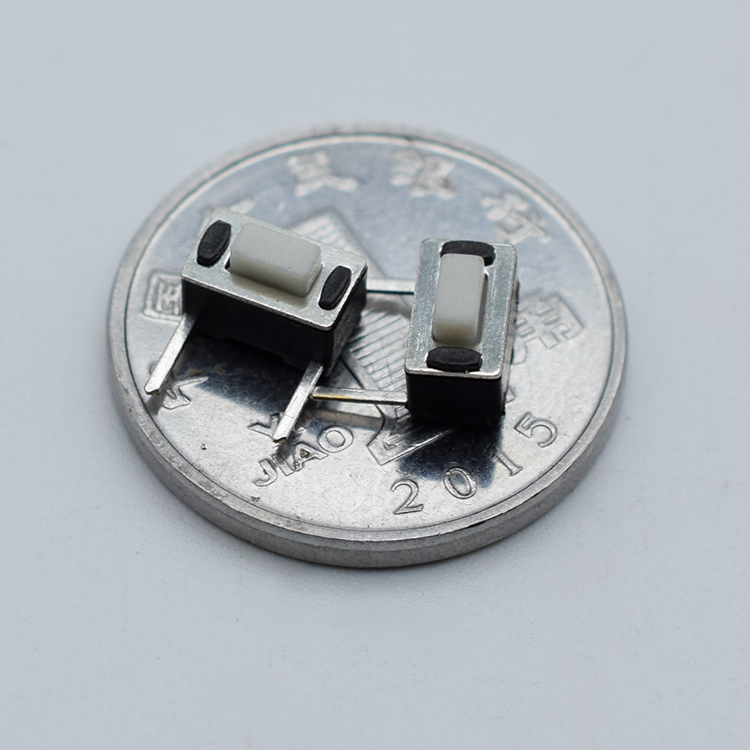

One of the standout features of the TS3643B2J is its compact size, measuring just 3×6mm. This miniature form factor allows for seamless integration into space-constrained designs, making it a preferred choice for designers and engineers across industries.

The DIP side press mechanism of this tactile switch further adds to its versatility. This design enables users to press on the side of the switch, providing a more intuitive and ergonomic experience. Whether it is for navigating menus, activating functions, or adjusting settings, the TS3643B2J ensures effortless operation, enhancing the overall user experience.
