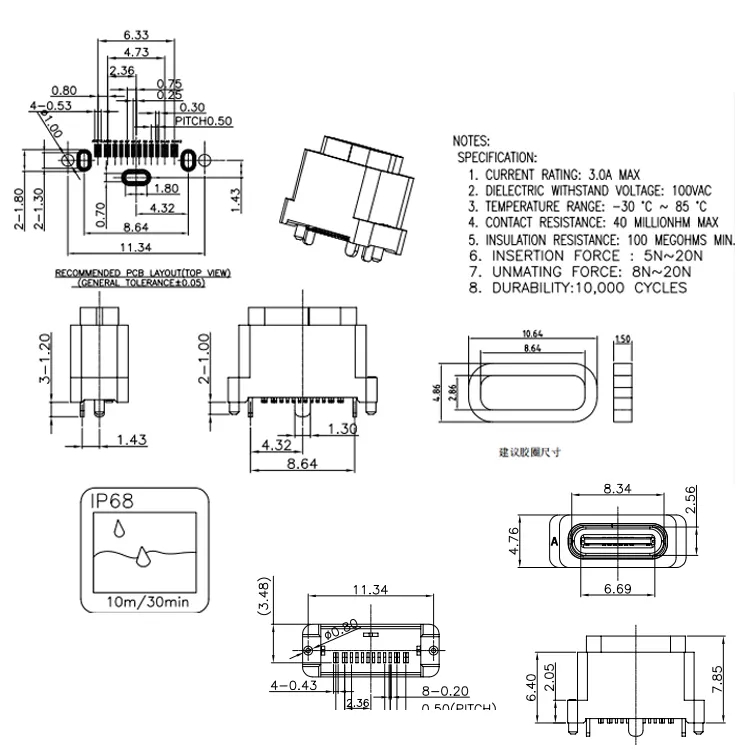

waterproof IPX8 plastic micro usb type c connector female socket 16 pin PCB SMD

Short Description:

product name	type c 16 pin
model number	type c 16P IPX8
current rating	3.0A MAX
dielectric withstand voltage	100V AC
temperature range	-30~+85℃
contact resistance	40 million max
Insulation resistance	100 megon min
Insertion force	5-20N
unmating force	8-20N
durability	10000 cycles
waterproof	IPX8
shell	plastic

Send email to us

Product Detail

Product Tags

SCALABLE, SUPERSPEED CONNECTOR SYSTEM

Waterproof USB Type C with IPX8 performance supports a variety of protocols such as USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2 and meet high speed communication and power delivery (20V, 5A).

The usability of Waterproof Type C is with strong IP performance and unique IP technology to ensure each part meets the high quality of waterproof performance.

IPX4-X8 rating

High-speed transmission up to 40Gb/s

Power rating up to 100W

Reversible plug and cable orientation

All-in-one simplicity

FEATURES OF WATERPROOF USB C CONNECTOR

Supports high speed transmission up to 10Gb/s

Excellent copper alloy material for terminals design

All-in-one simplicity

Tailored for emerging product designs

Up to 10,000 mating cycles

Unique O-ring technology (LIM) for waterproof

ADVANTAGES OF WATERPROOF USB C CONNECTOR
Support USB2.0, USB 3.2 Gen 1, USB 3.2 Gen 2
Extended 5A current rating for USB Power delivery and up to 100W
Support power delivery, data transfer, video output in one connector
Reversible plug and cable orientation for better user experience
