    IP66 19mm self-locking power metal led push button RGB antivandal switch with light

    IP66 19mm self-locking power metal led push button RGB antivandal switch with light Featured Image
    • IP66 19mm self-locking power metal led push button RGB antivandal switch with light
    • IP66 19mm self-locking power metal led push button RGB antivandal switch with light
    • IP66 19mm self-locking power metal led push button RGB antivandal switch with light
    • IP66 19mm self-locking power metal led push button RGB antivandal switch with light

    Short Description:

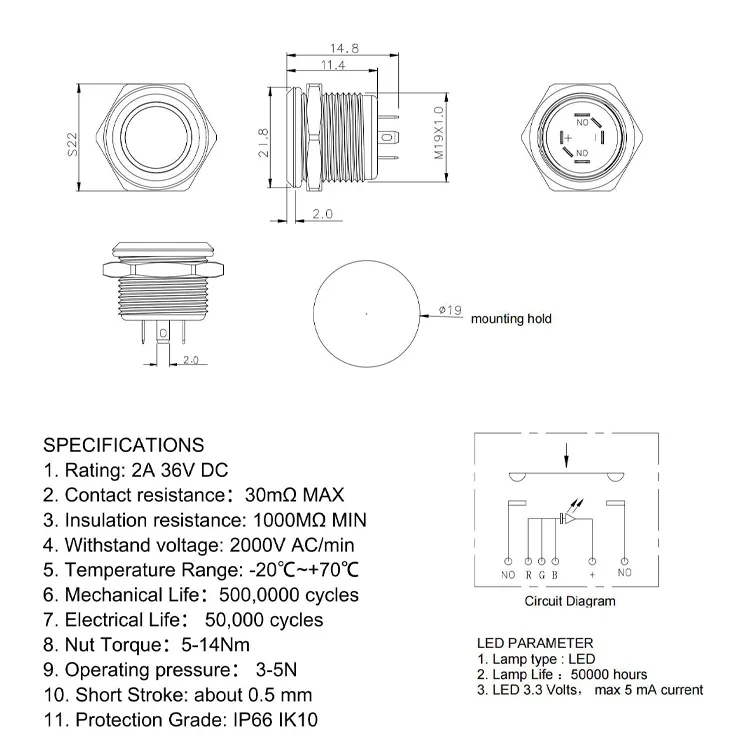

    product name Metal pushbutton switch with light
    model number 19-RGB-M7
    rating 2A 36V DC
    contact resistance 30mΩ MAX
    Insulation resistance 1000MΩ MIN
    Withstand voltage ≥2000V/1min
    temperature range -20℃-+70℃
    Mechanical life 5000000cycles+
    Electrical life 50000 cycles
    Operating Pressure 3-5N
