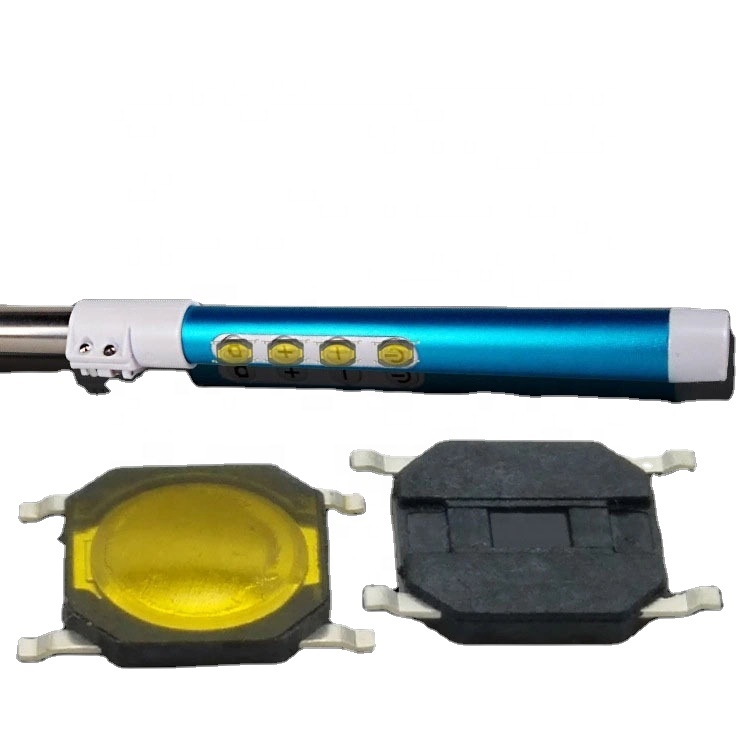

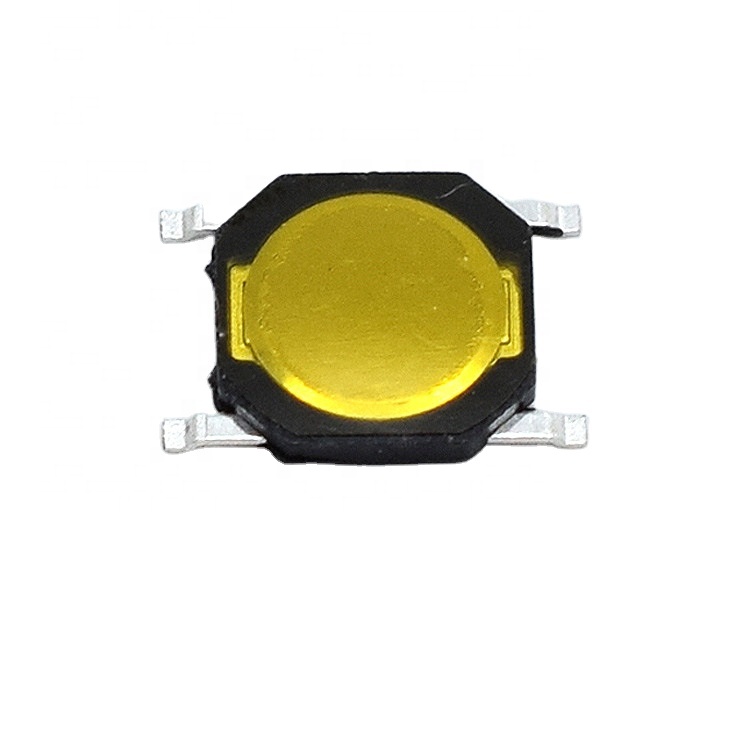

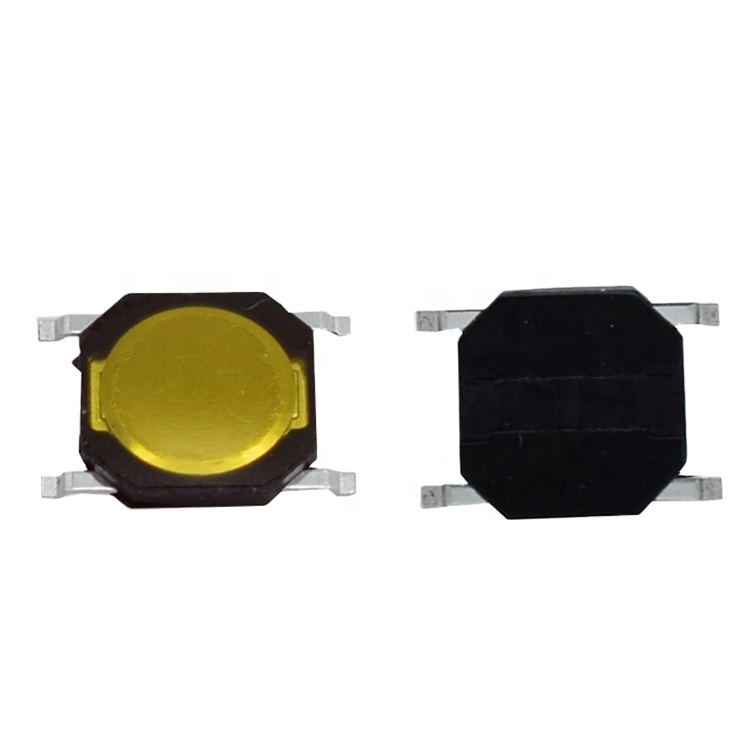

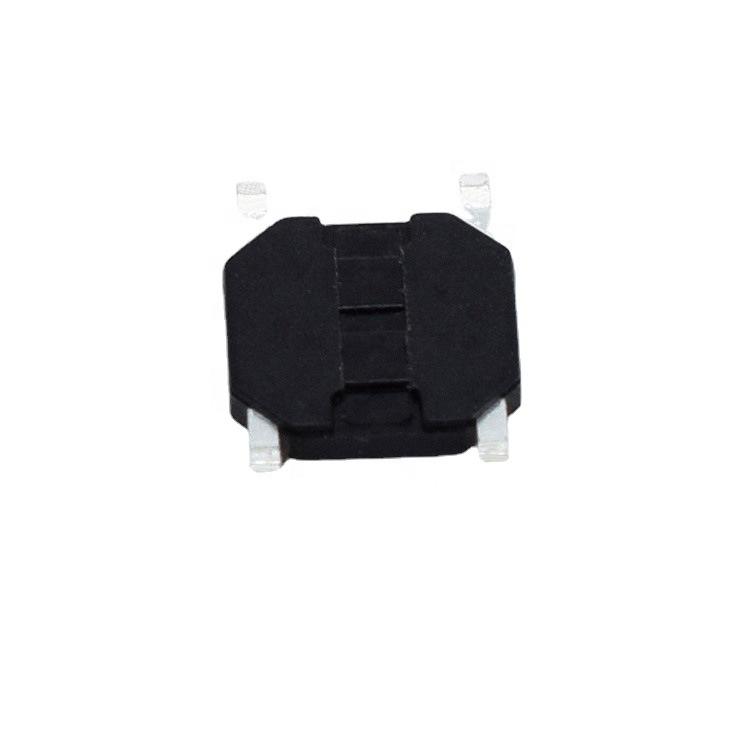

MSLPT5252AG4TR TS5208A 4x4x0.8mm Tact Switch SMT Tactile Membrane Switch SMD low-profile membrane switch 4.8*4.8mm
| Product Name | Tact Switch SMD |
| Model | TS5208A MSLPT5252AG4TR |
| Certification | CE\Rohs |
| Operating Force | 250±30gf |
| Rating | 12VDC 50mA |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100mΩ |
| Travel | 0.15±0.05mm |
| mechanical life | 100,000 Cycles |
| Single package size | 4.8*4.8*0.8 mm |
| operating temperature | -20℃~+70℃ |

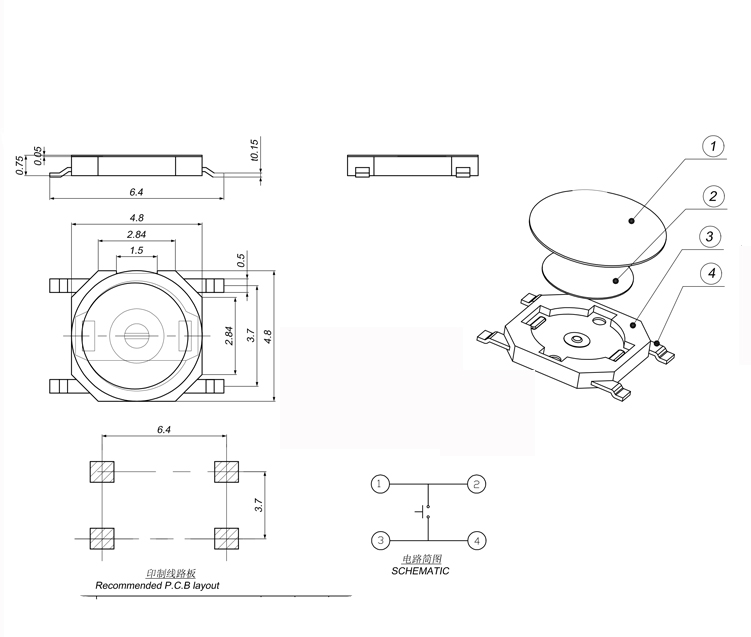

Touch switch is also known as sensitive switch, in use can meet the conditions of operating force to the direction of switch
operation pressure switch function closed, when the pressure is withdrawn when the switch is disconnected, its internal structure
is based on the metal shrapnel force changes to realize the touch switch by: insert base shrapnel button The cover plate consists
of a waterproof touch switch and a polyimide film is added to the shrapnel
