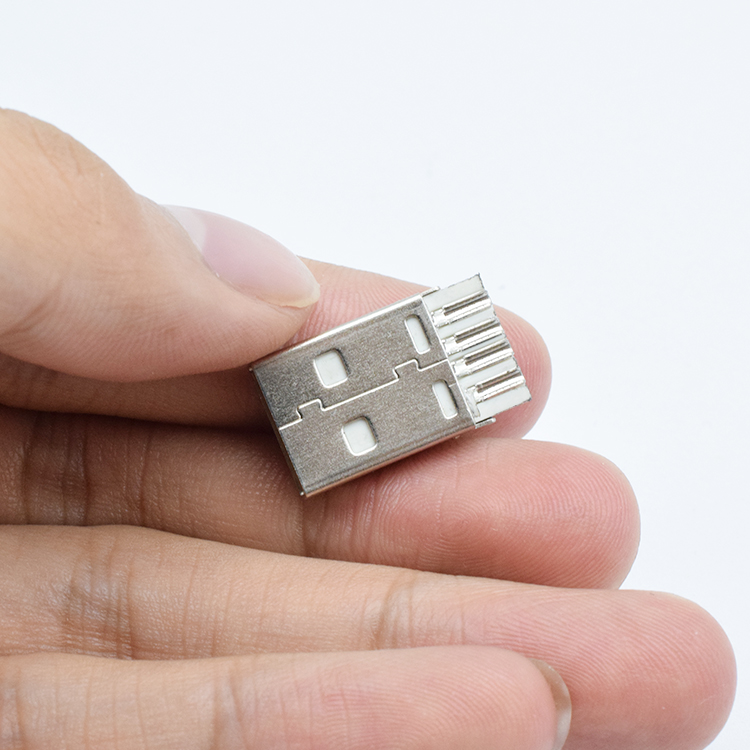

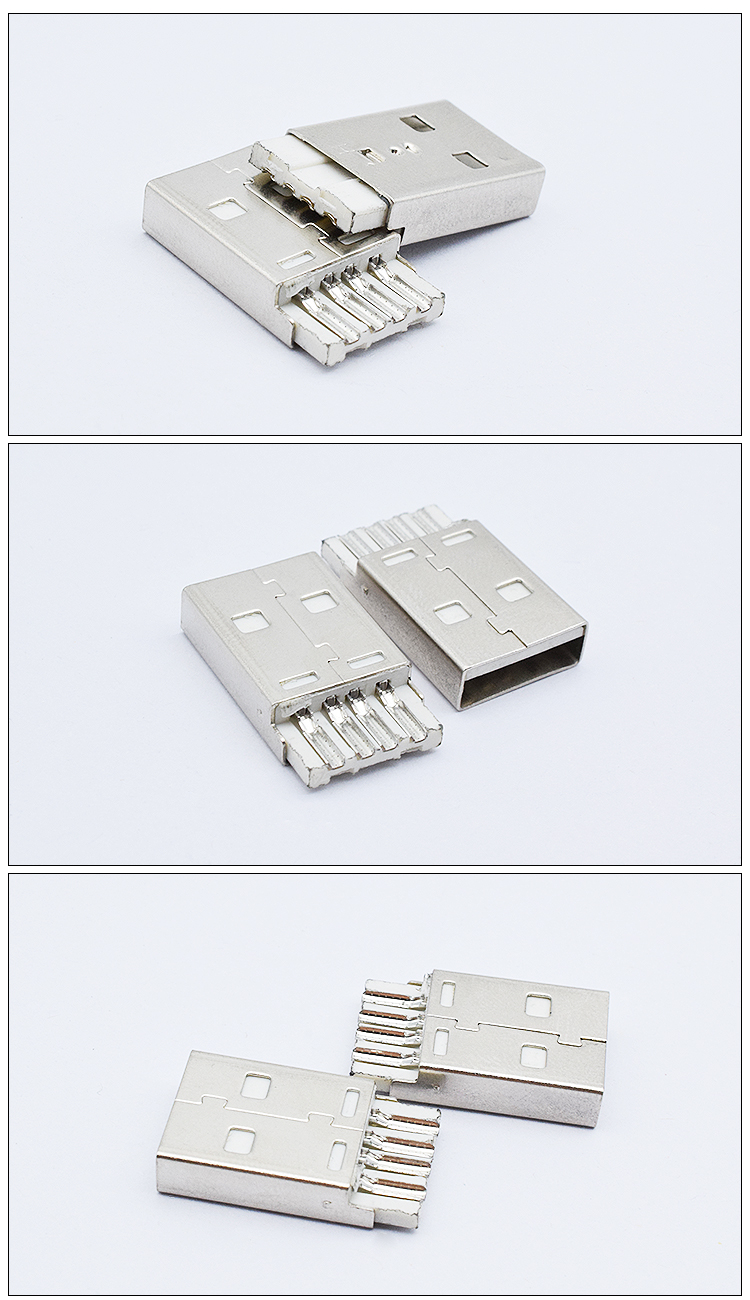

20.6mm USB 2.0 4 Pin A Type Male Plug SMT Weldable Wire Male USB Connector for USB Cable
| Product Name | Weldable Wire Male USB Connector |
| Model | 4 pin 20.6mm USB type A |
| Certification | CE\Rohs |
| Rating | 30VDC 1.5A |
| Size | 12*4.5*20.6mm |
| Net weight | 1.8g |
| PIN | 4 pin |
| Life | 5,000 cycles |
| Operating Temperature | -55℃~+85℃ |
| Connection Force | 35N |
| Disconnection Force | 10N |
USB is an external bus standard used to regulate the connection and communication between computers and external devices.
USB interface plug and play and hot swap function. USB port can connect 127 kinds of peripherals, such as mouse and keyboard.
USB is at the end of 1994 by Intel and many other companies jointly launched in 1996, has successfully replaced the serial port
and parallel port, has become today’s computer and a large number of intelligent equipment must match the interface
