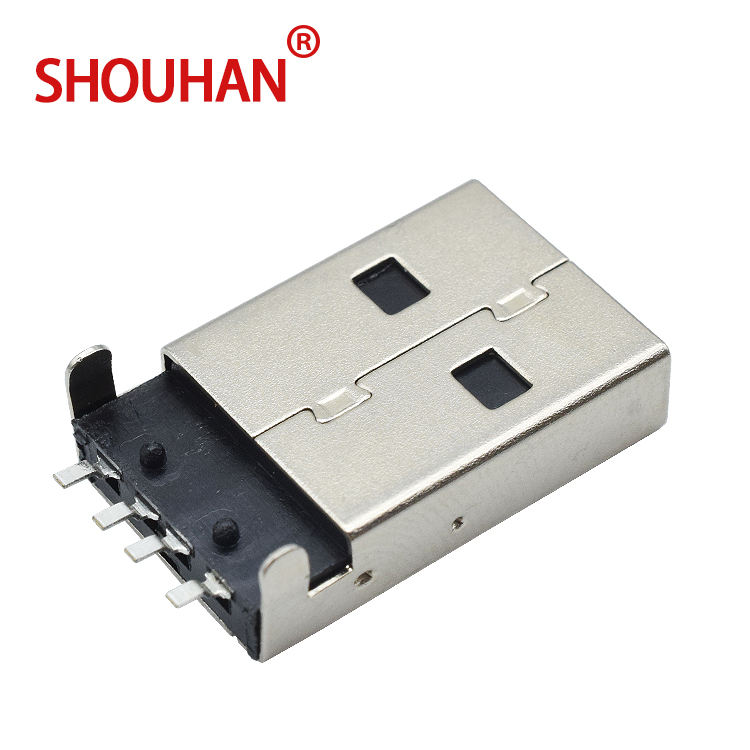

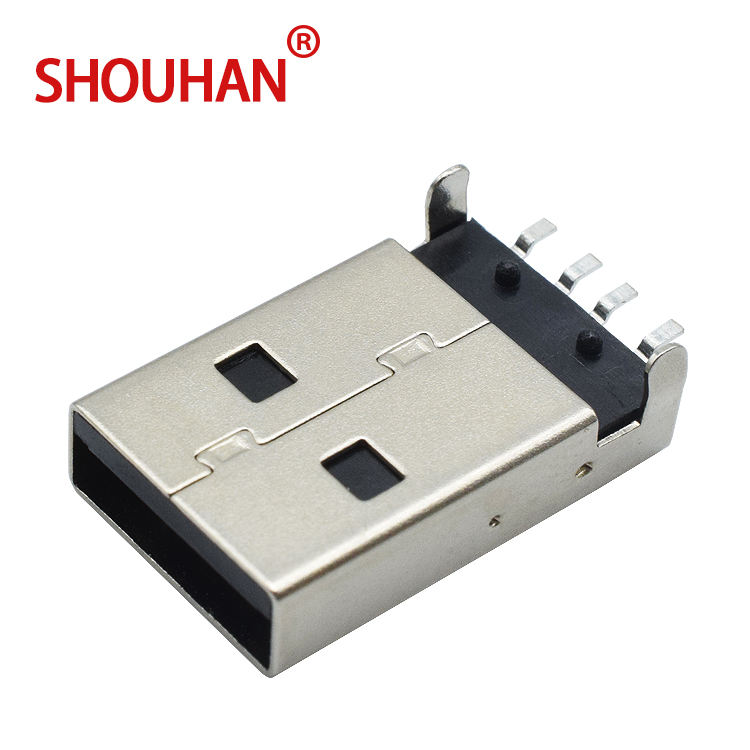

    USB Connector a Male 180 Degree Black Acrylic 4 Pin USB Socket

    USB Connector a Male 180 Degree Black Acrylic 4 Pin USB Socket Featured Image
    • USB Connector a Male 180 Degree Black Acrylic 4 Pin USB Socket
    • USB Connector a Male 180 Degree Black Acrylic 4 Pin USB Socket
    • USB Connector a Male 180 Degree Black Acrylic 4 Pin USB Socket
    • USB Connector a Male 180 Degree Black Acrylic 4 Pin USB Socket

    Short Description:

    Place of Origin : Guangdong, China
    Brand Name : OEM/SHOUHAN
    Model Number  :USB Connector smd
    Product name:  USB Connector a Male 180 Degree Black Acrylic 4 Pin USB Socket
    Item：  USB CONNECTOR A type
    Connector type ： male Terminals
    Color ： Silver/Black
    Pin ： 4pin
    Insulation Resistance ： 100M Ohm/Min
    Dielectric withstand voltage ： 500VAC/min
    Contact resistance ： 40m Ohm Max
    Operating force : 1.02kgf-3.57kgf
    Life  : 5,000 cycles

    Product Detail

    Product Tags

    Main-02 Main-01 Detail-05 Detail-04
