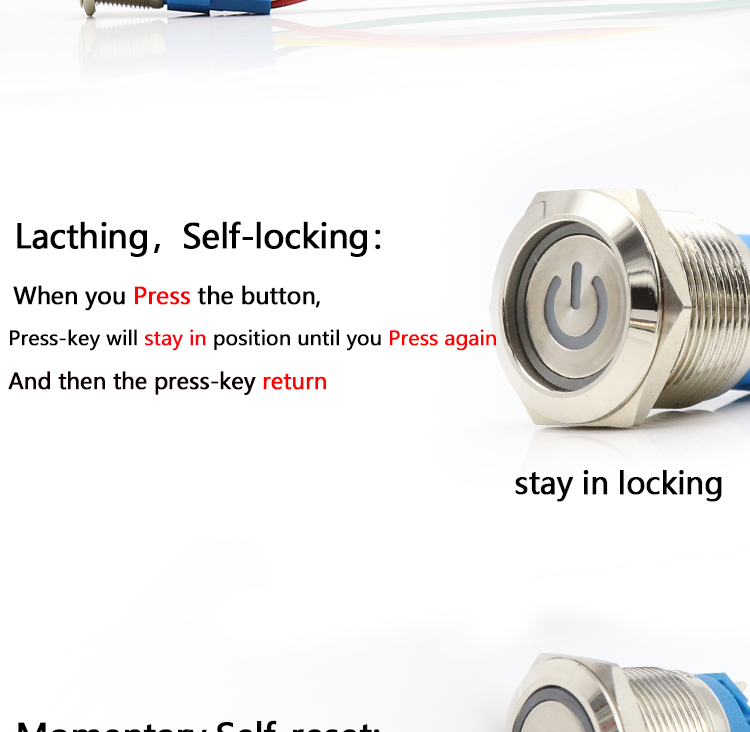

12/16/19/22mm Metal push button switch 5v 12v 24v 220v waterproof power button switch self-lock/momentary led button switch

Short Description:

12/16/19/22mm Metal push button switch 5v 12v 24v 220v waterproof power button switch self-lock/momentary led button switch

1.What does the signal ”NC” and ”NO” means?
“A” ”+”: positive pole of the led
“LED” ” - ”: negative pole of the led

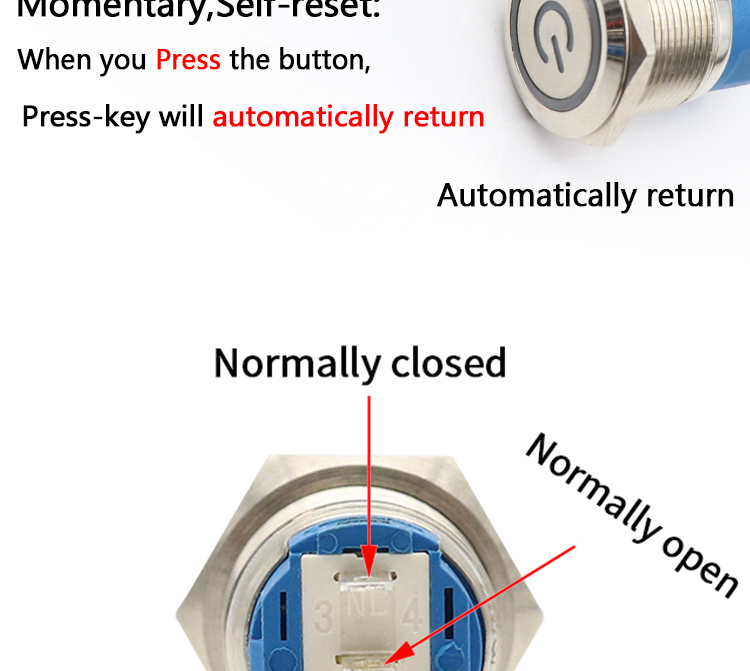

“ NC ”: Normal Close
“ NO ”: Normal Open
“ C ” : Common

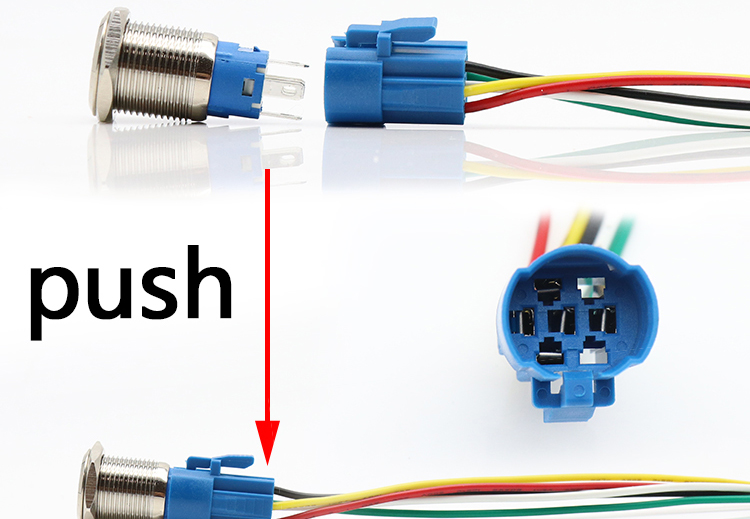

2.How to connect?
1.Connect ” NO ” and ” C ” : The circuit is alway open unless press the button.
2.Connect ” NC ” and ” C ” : The circuit is alway close unless press the button.

Send email to us

Product Detail

Product Tags

Product Name	12/16/19/22mm Metal push button switch 5v 12v 24v 220v waterproof power button switch self-lock/momentary led button switch
Environment temperature	-25°C~85°C
Insulation Resistance	>1000 MΩ
Contact Resistance	≤50mΩ
Product Life	5,0000 Cycles
Operation Force	2.5-4.5N
