Mechanical Vibration Switch SW-520D Shaking Switch Double Metal Ball 12V 2mA

Short Description:

Product Name: SW-520D
Model: SW-520D Vibration Sensor Switch
Conductive Time:2ms
Current Range: 2mA
Contact Resistance: 5mΩ
Voltage Range:12V
Sensitivity:High
Heat resistance:100℃


Product Detail

Product Tags



 Product Name  2mA 12V vibration switch SW-520D shaking switch  reed switch
 Model  SW-520D
 Cycle  200,000 cycles
 Heat resistance  100
 Rating  12V,2mA
 Sensitivity  High
 Working type  on-off shift
 Conductive time  2ms

A vibration switch, properly called a vibration sensor, is an electronic switch that transmits the result of an induced shock to a circuit

device and makes the circuit work.

Some people call it the vibration switch, and some people call it the slide switch or the slosh switch, and so on, but these are

not entirely correct. The name of the industry is generally divided into two categories, spring switch and ball switch.

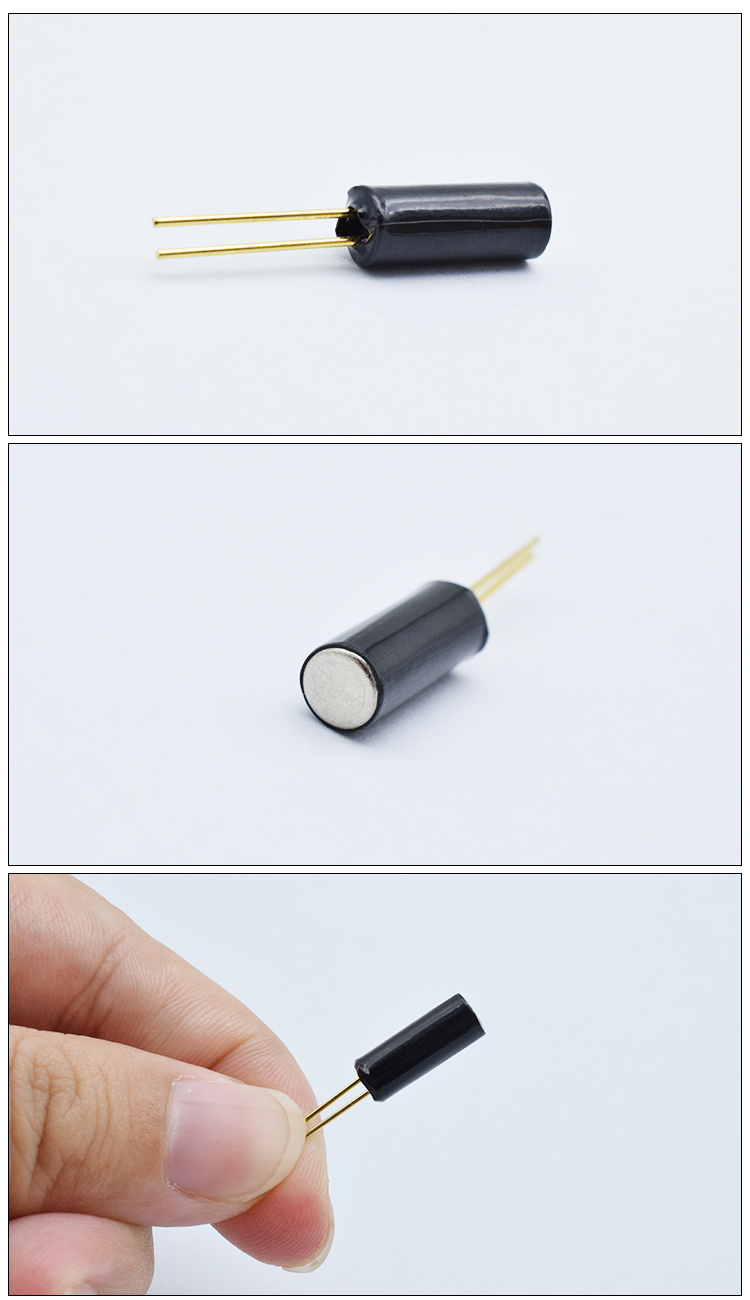

国际站英文详情页产品实拍

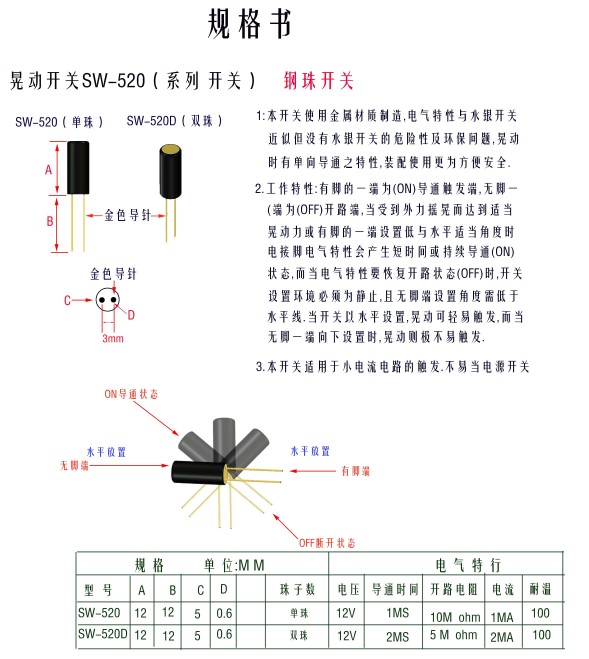

SW520系列2 4 5 6 7 8 10 9 11 13 12 14
