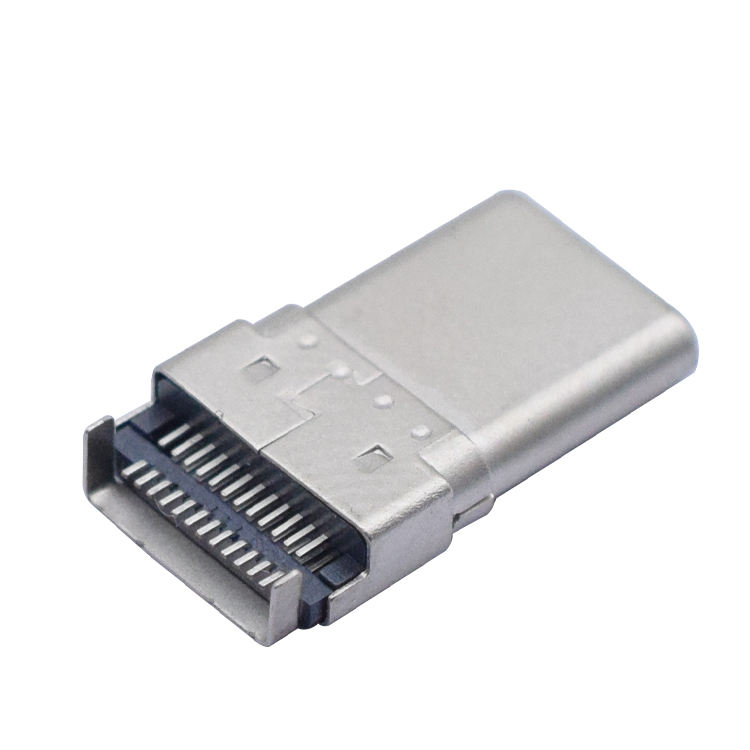

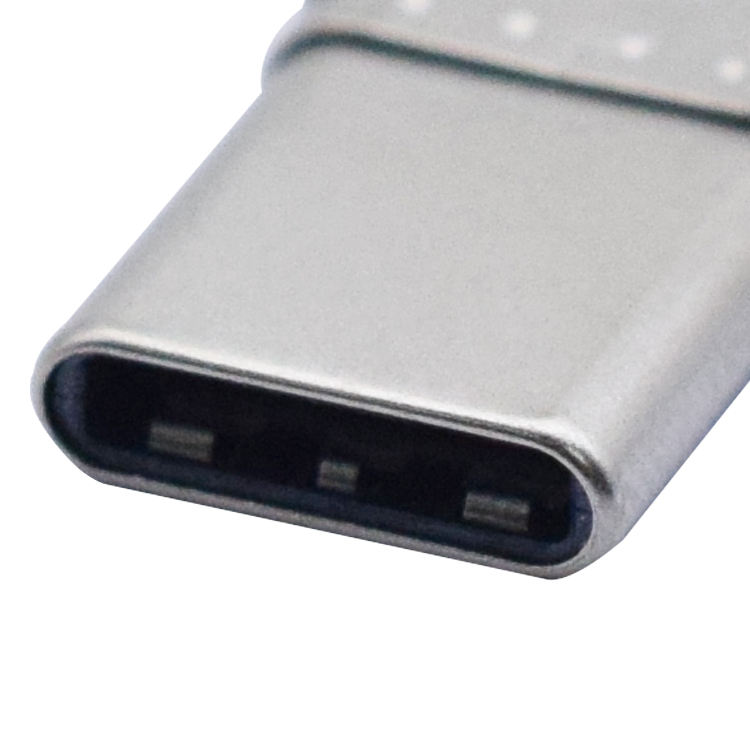

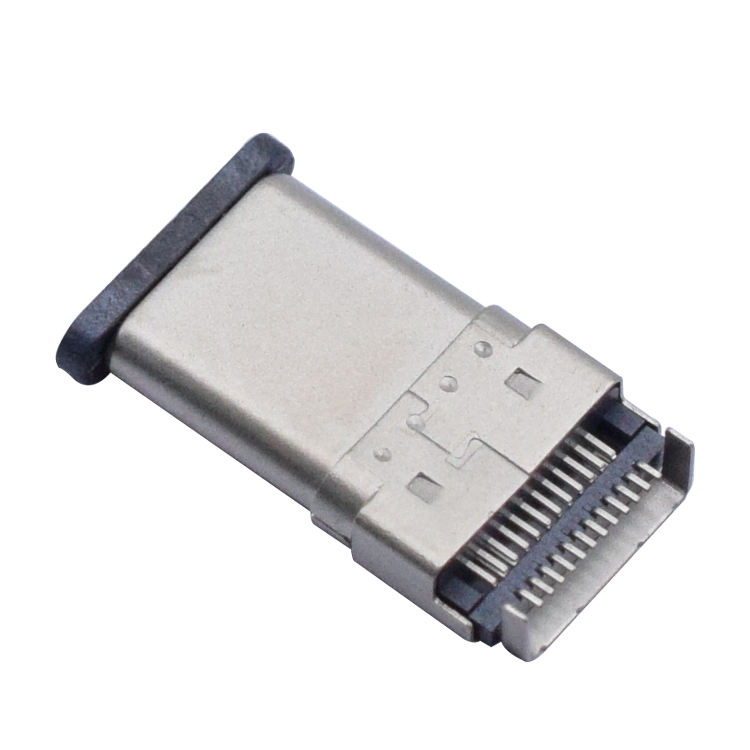

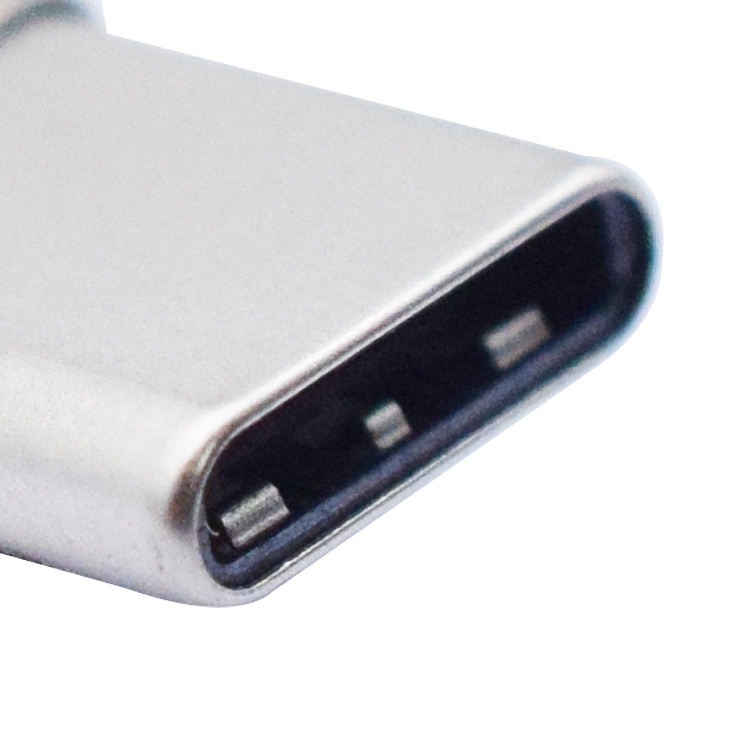

    usb type c male 24 pin PCB mount SMT connector

    usb type c male 24 pin PCB mount SMT connector Featured Image
    • usb type c male 24 pin PCB mount SMT connector
    • usb type c male 24 pin PCB mount SMT connector
    • usb type c male 24 pin PCB mount SMT connector
    • usb type c male 24 pin PCB mount SMT connector

    Short Description:

    product name type c
    model number type C 24 pin male connector
    current rating 5A for pin(A4,A9,B4,B9)
    1.25A For Others Pin
    Insulation resistance 100 MΩ Min
    contact resistance 40 mΩ  Max
    Dielectric Withstanding Voltage 100V AC for 1 min.
    Insertion Force 5~20N
    Extraction Force 8~20N
    After durability 6~20N
    Durability 10000 Cycles
    Operating Temperature -30°C TO +85°C

    Product Detail

    Product Tags

    Main-03 Main-07 Main-06 Main-05 Main-04
