EVPAKE31A/EVPAKB01A 12V 2*3 base micro side press touch switches tact switch with bracket

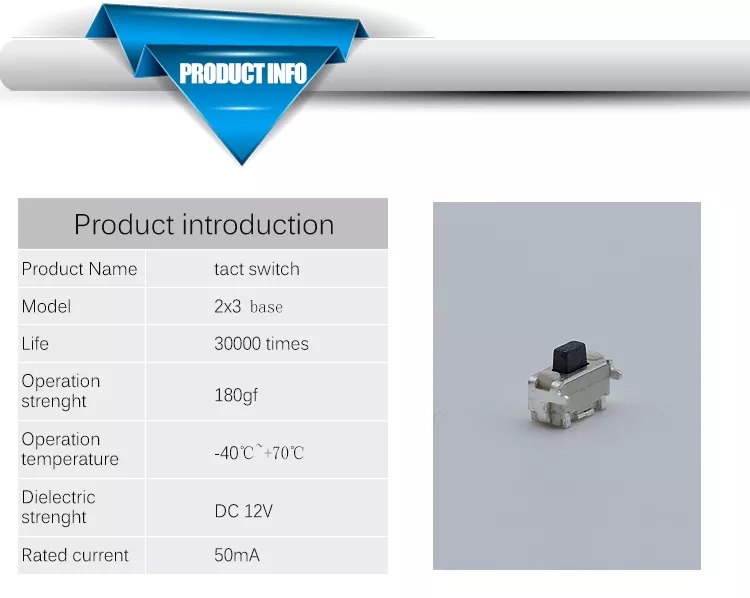

Short Description:
| product name | tact switch |
| Product number | TS23ZJ |
| Rating | DC 12V 50mA |
| contact resistance | ≤100mΩ |
| Insulation Resistance | ≥100M Ω |
| operating force | 160±50gf |
| full travel | 0.2±0 .1 mm |
| Dielectric strength | 250V AC for 1 min |
| Operation direction | Side press |

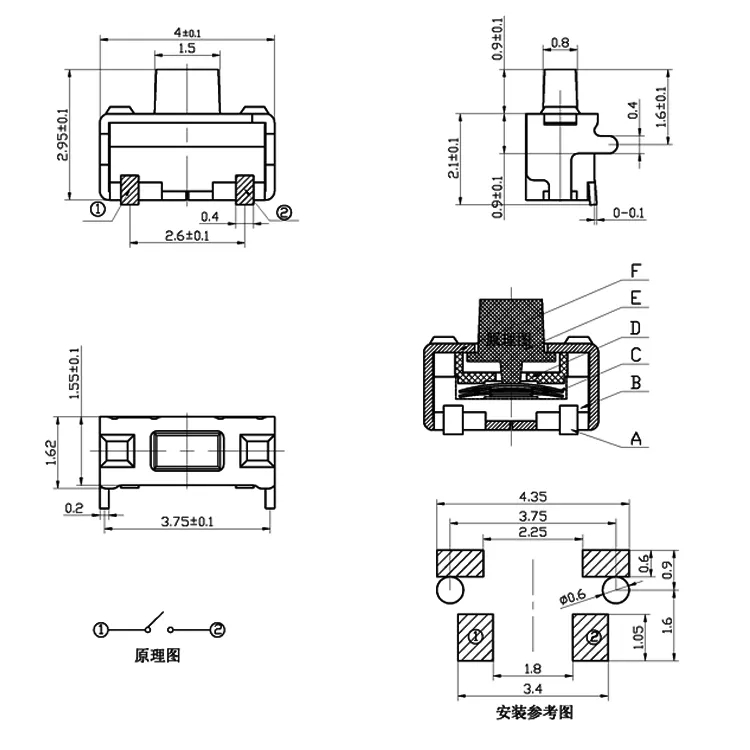

| Dimensions | 2*3*3mm |
| certified product | ROHS |
| life | ≥30000 times |
| Operating temperature | -40℃~+70℃ |
