Toggle switches Rocker Switches on-off-on E-TEN1122 with the panel 3pin 15A 250V

Short Description:

Quick Details

Certification:
ROHS
Place of Origin:
Guangdong, China
Brand Name:
SHOUHAN
Model Number:
250v toggle switch
Max. Current:
5A
Max. Voltage:
250V
Mechanical Life:
10000 cycles
Product name:

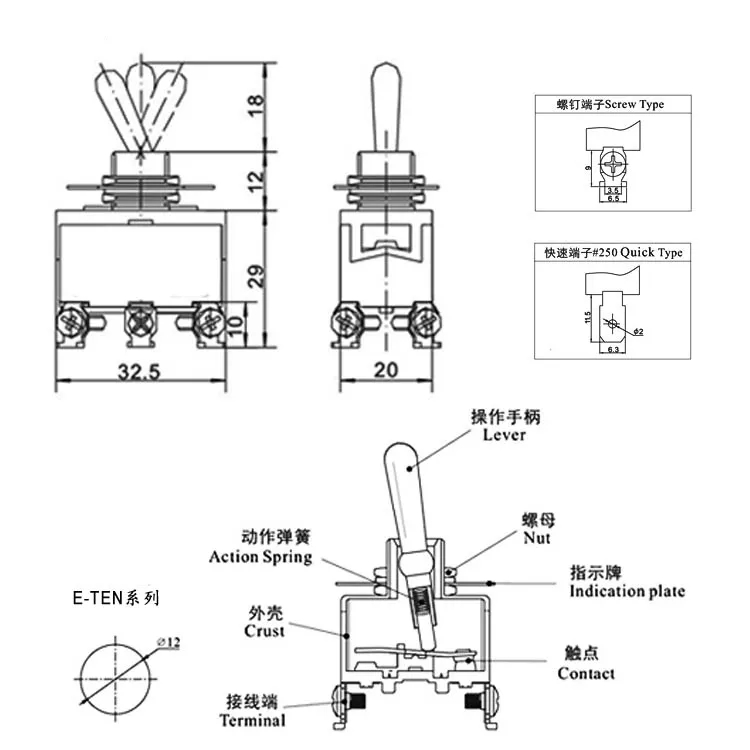

Toggle Switches on-off-on E-TEN1122 with the panel 3pin
Rating:
3A 5A toggle switch
Electrical Life:
10,000 cycles/Min
insulation resistance:
100MΩ Min
Contact Resistance:
30mΩ Max
Operating Temp:
-10 ℃~+70℃
Terminal:
Solder Terminal PCB terminal
Operating strength:
250±100gf
Certifications:
ROSH
Keyword:
toggle switch on off on

Product Detail

Product Tags

Toggle switch is a manual control switch that is mainly used for on-off control of AC and DC power circuits, but can also be used in circuits of several kilohertz or up to 1 megahertz. With small size and easy operation, it is a commonly used switch in electronic equipment.
Switch Function
ON OFF ON
Rating
15A 250VAC
Contact Resistance
< 50MΩ
Insulation Resistance
500VDC 1000MΩ Minute
Dielectric Strength
1500VAC, 1 Minute
Operating Temperature
-25°C~+85°C
Electrical life
50000 CYCLES
