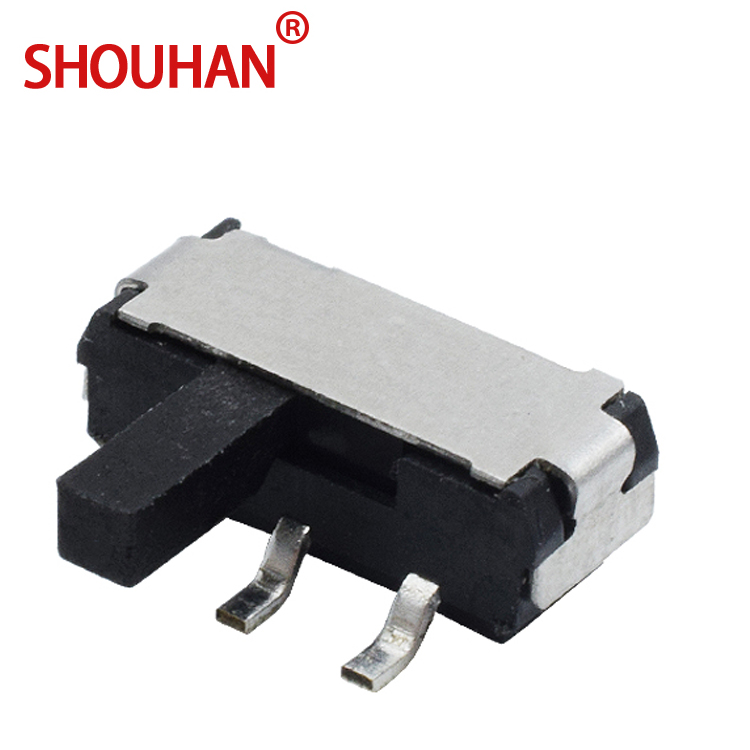

Slide Switch_MSK22D18-T SMD Horizontal Side Buttons Switch 12VDC 50mA SSAJ110100
| Product Name | Slide Switch |
| Model | MSK22D18-T |
| Certification | CE\Rohs |
| Rating | 20VDC 50mA |

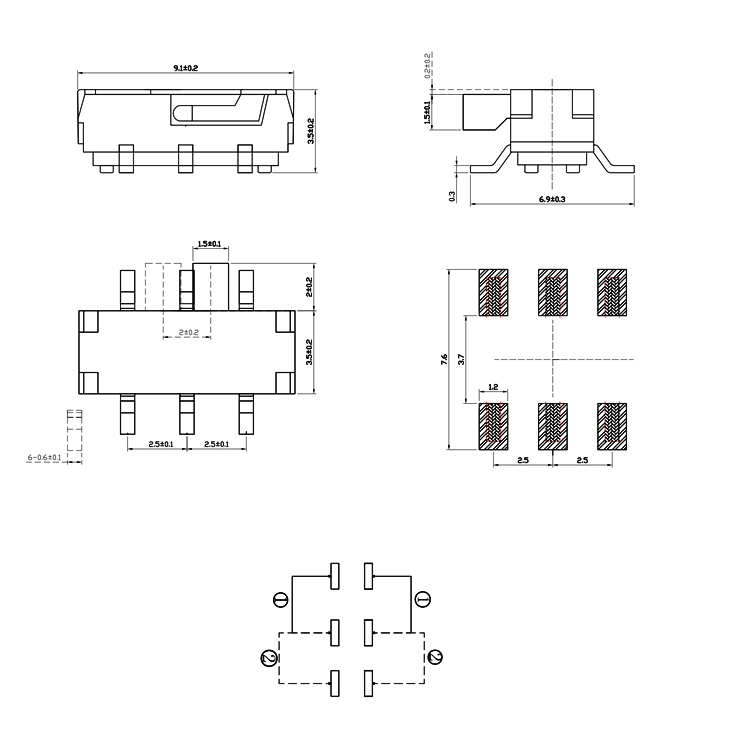

| Size | 9.1*3.2*2mm |
| Operating Temperature | -10℃~+50℃ |
| PIN | 6 pin |
| Operating Force | 200±50gf |
Toggle switch is through toggle switch handle to make the circuit on or off, so as to achieve the purpose of switching circuit.
Commonly used varieties have a unipolar toggle switch on-off, unipolar and bipolar two position and three bipolar, etc.,
it is generally used in low voltage circuit, a sliding block action flexible, stable and reliable performance, the characteristics of
the toggle switch is mainly are widely used in: all kinds of instruments/meters equipment, all kinds of electric toys, fax machines,
audio equipment, medical equipment, beauty equipment, and other electronic products field
