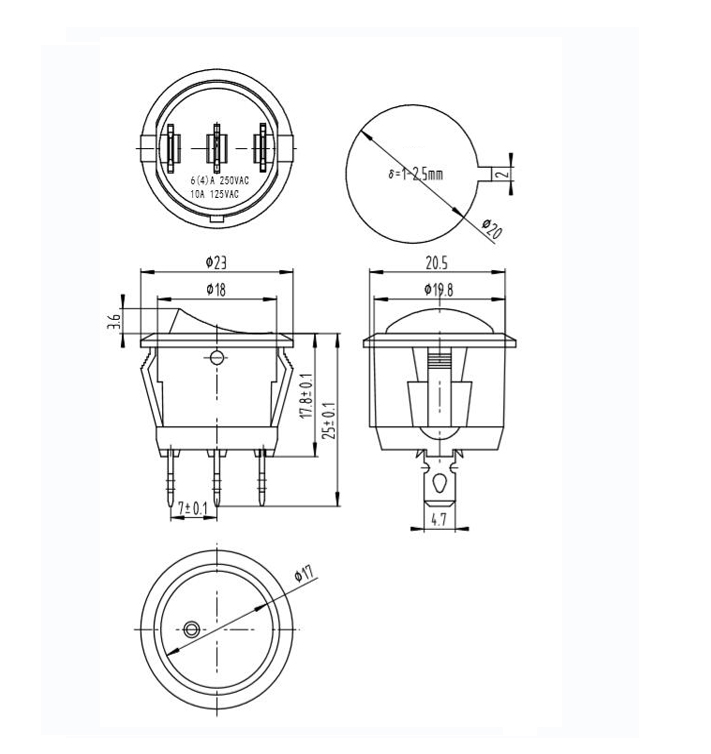

KCD1 10A on-off rocker switch 3 pin KCD1-105-3P with lamp illumination
Rocker switch product advantages:
KCD1 10A on-off rocker switch 3 pin KCD1-105-3P with lamp illumination rocker switch.
Black case, solder lug or straight pc terminals, silver or gold plated terminals. Ratings up to 6 amps.
Fast delivery, provide free samples, products with RoHS test report and CE certification, cycle life of
10k times, guaranteed after-sales service, technical support and good service attitude
Application fields:
Widely used in the fields of small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, medical facilities
Our rocker switch can pass the below tests:
1) humidity test
the jack shall be stored at a temperature
of 40±2℃ and a humidity of 90%to 96% for 96 hr, then the jack shall be maintained at standard atmospheric condition for 1 hr for other procedures
2) Temperature Cycling test
DC Voltage 1.5 times as much as rated voltage shall be applied continuously between adjacent at 60±2℃and 90~95％RH for 500hours, the switch shall be allowed to stand under normal temperature and humidity conditions for 1hour, and measurement shall be made within 1hour
After that, water drops shall be eliminated.
After test contact resistance:100mΩMax, Insulation resistance:10mΩMin, rocker switch shall be free from abnormalities in appearance construction.
3) Salt mist test
The switch shall be checked after following test:
(1) Temperature:35±2℃
(2) Salt solution:5±1％(Solids by mass)
(3) Duration: 24±1hour
After test, salt deposit shall be removed by running water, and no remarkable corrosion
shall be recognized in metal part.
4) Cycle life test
10,000 cycles of operation shall be performed continuously at a rate of 80cycles per minute with
6A 250VAC; 10A 125VAC
