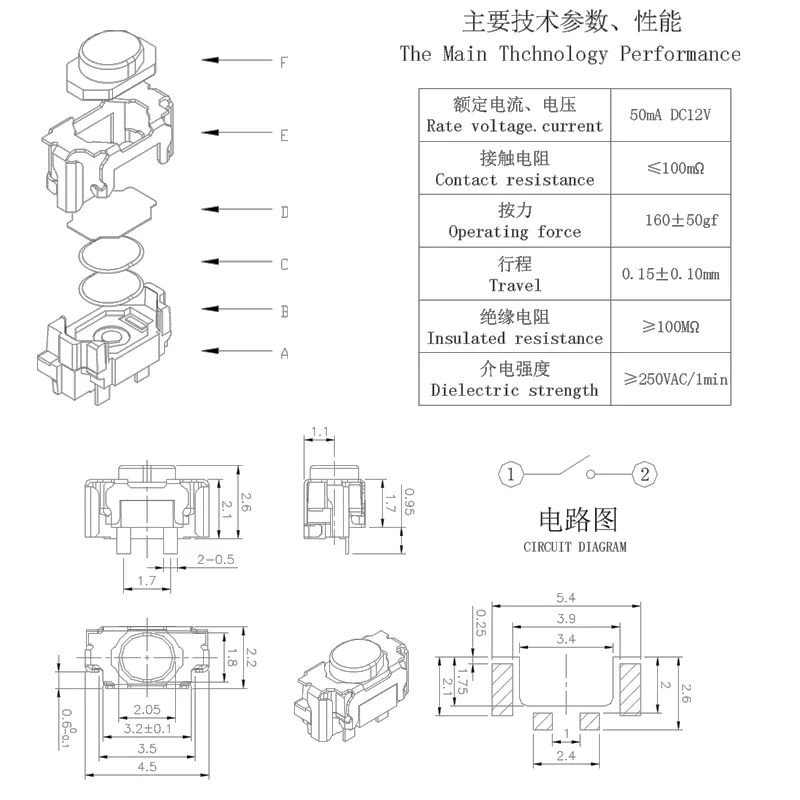

High life Gold plated 2pin 2×4 tactile switch 0.5A 12V side button smd tact switch micro push button switch SKSLLCE010
Essential details
- Certification:
-
rohs
- Place of Origin:
-
China
- Brand Name:
-
SHOUHAN
- Model Number:
-
TS25CA, TS25CA
- Max. Current:
-
50mA
- Max. Voltage:
-
DC12V
- LED:
-
NO
- product name:
-
2.2*4.5*2.6H tact switch
- Rate voltage.current:
-
50mA DC12V
- Insulated resistance:
-
≥100MΩ
- Contact resistance:
-
≤100mΩ
- Life of machinery:
-
≥100000 times
- Operating temperature range:
-
-40 to 80℃
- Operating force:
-
160±50gf
- Travel:
-
0.15±0.10mm
- Dielectric strength:
-
≥250VAC/1min
