    5A 30V charging connector 24 pin b usb type c male connector socket

    5A 30V charging connector 24 pin b usb type c male connector socket Featured Image
    • 5A 30V charging connector 24 pin b usb type c male connector socket
    • 5A 30V charging connector 24 pin b usb type c male connector socket
    • 5A 30V charging connector 24 pin b usb type c male connector socket
    • 5A 30V charging connector 24 pin b usb type c male connector socket

    Short Description:

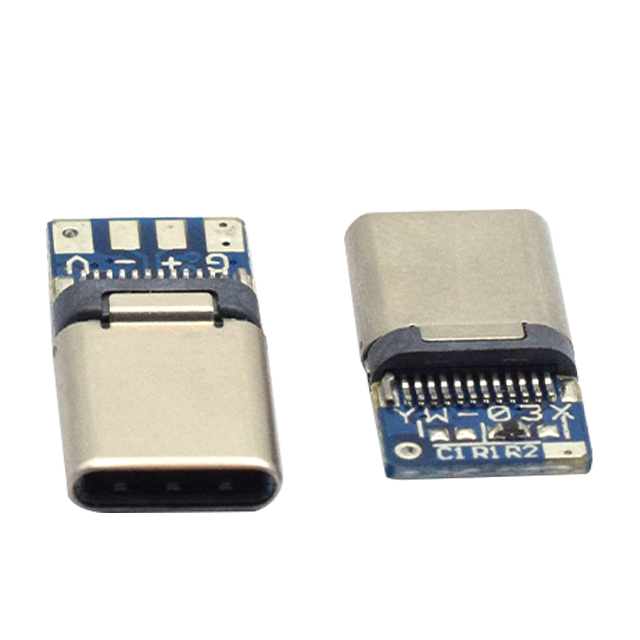

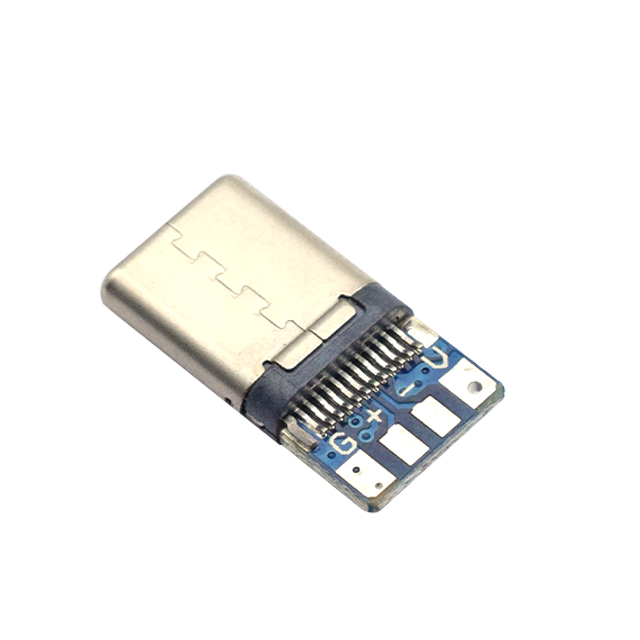

    product name usb type c 24pin male connector no PCB board
    model number type c 24pin male splint type
    Insertion force 5-20N
    Drawing force 6-20N
    durability 10000 times+
    Rated current 5A MAX
    Rated voltage 30V MAX
    Withstand voltage value 100V AC
    Contact impedance ≤40MΩ
    Insulation resistance ≥100MΩ MIN
    Temperature range -30℃~+85℃

    Product Detail

    Product Tags

    Detail-03 Detail-04 Detail-06
