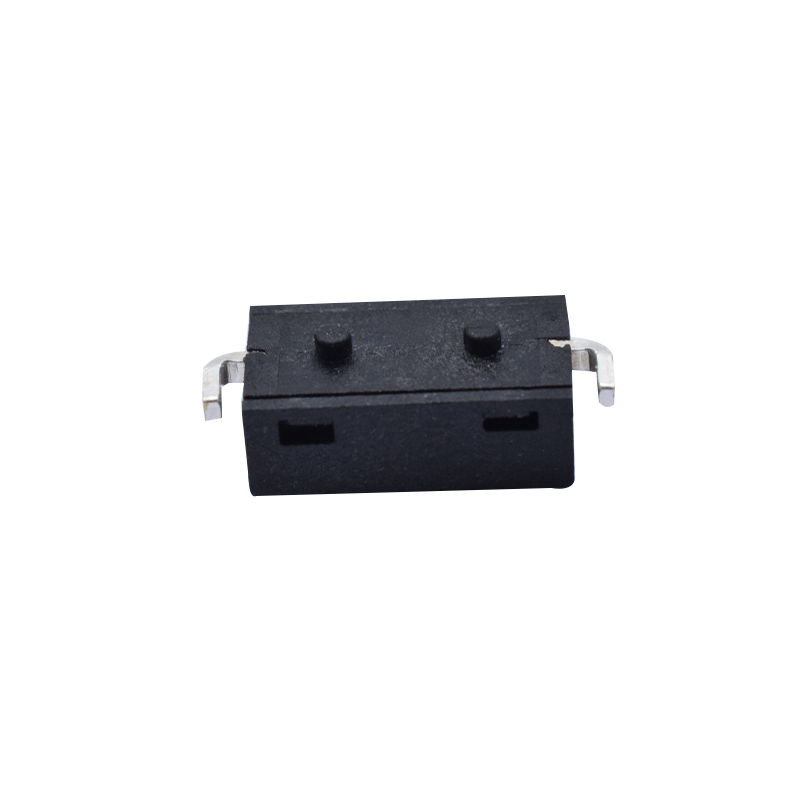

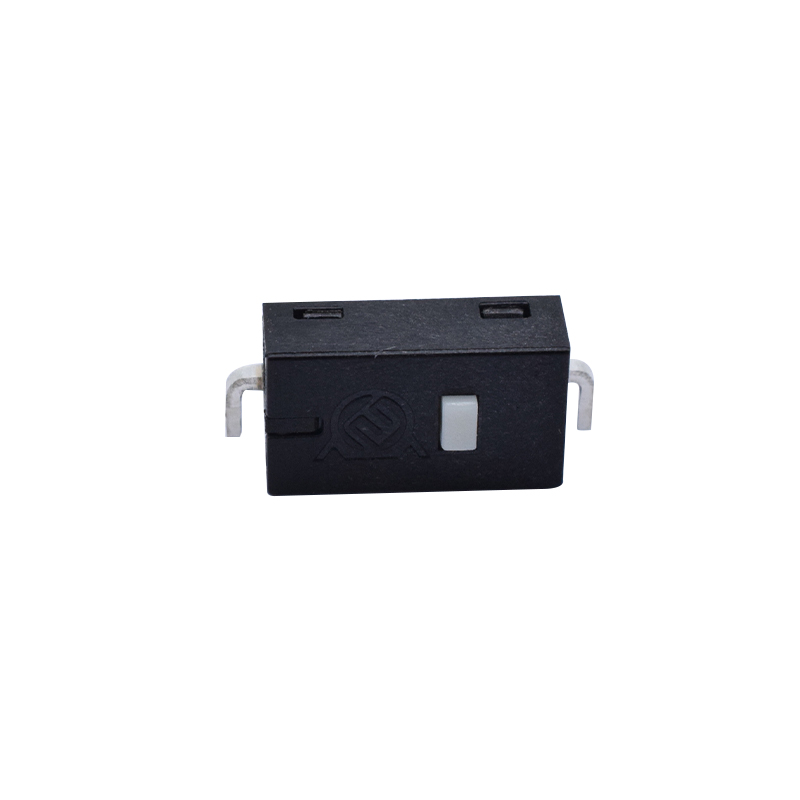

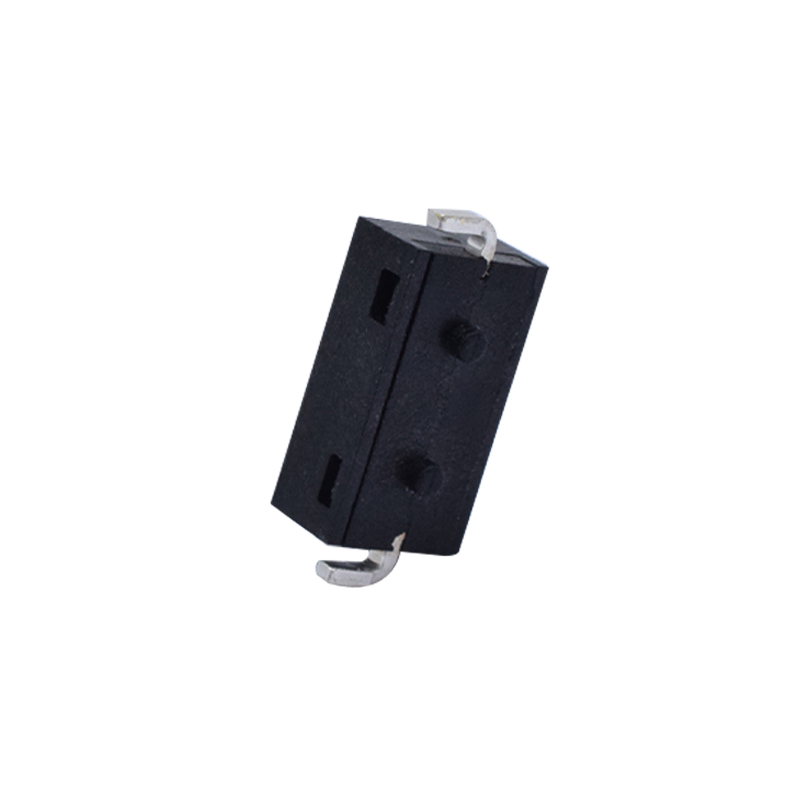

DS036-00M-60-5 Pole ON OFF Momentary Subminiature Micro tact Switch used in computer mouse

Short Description:

Product description
Item name: Micro Switch
Model No.: DS036-00M-60-5
Rating: 100mA.30V DC
Insulation resistance: 100MΩ 500VDC
Dielectric strength: 500V AC/min
Contact resistance: 100mΩ max
Operating force: 60gf/20gf
Travel: 0.3mm
Operating temperature: -25℃~+70℃
Soldering temperature:255±5℃ 5s
Lifetime: 5,000,000 cycles


Product Detail

Product Tags

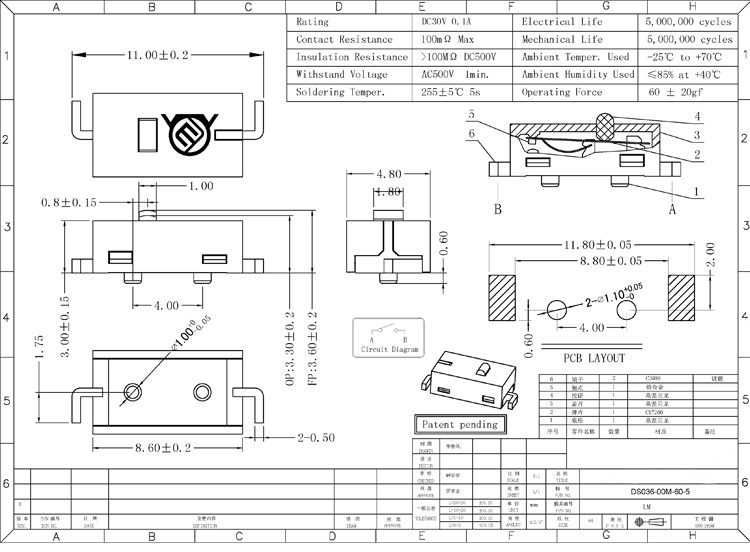

Product Name DS036-00M-60-5
Size 8.6*4.8*3.0mm(Height)
OP/FP 3.30±0.2mm/3.60±0.2mm
Rating Voltage 30VDC
Operating temperature -25℃~+70℃
Contact Resistance 100mΩ Max
Insulation Resistance 100mΩ Min
Withstand Voltage 500VAC(50/60Hz)/min
Contact Current 0.1A
Operating Life 5,000,000 Cycles
Operating Force 60±20gf

It can be used in computer mouse, car mouse, car electronic products, communication equipment, military products, test instruments, gas water heater, gas stove, small household appliances, microwave oven, rice cooker, floating ball equipment, supporting medical instruments, building automation, electric tools, general electrical and radio equipment, 24-hour timer, etc主图-05 主图-06 主图-03 详情-03 2 4 5 6 7 8 9 10 11 12 13 14
