3x6x2.5 height 2.5mm SMT SMD 2 pin Tactile Switch PCB Mount RS282G05A3SMRT

Short Description:

Product description

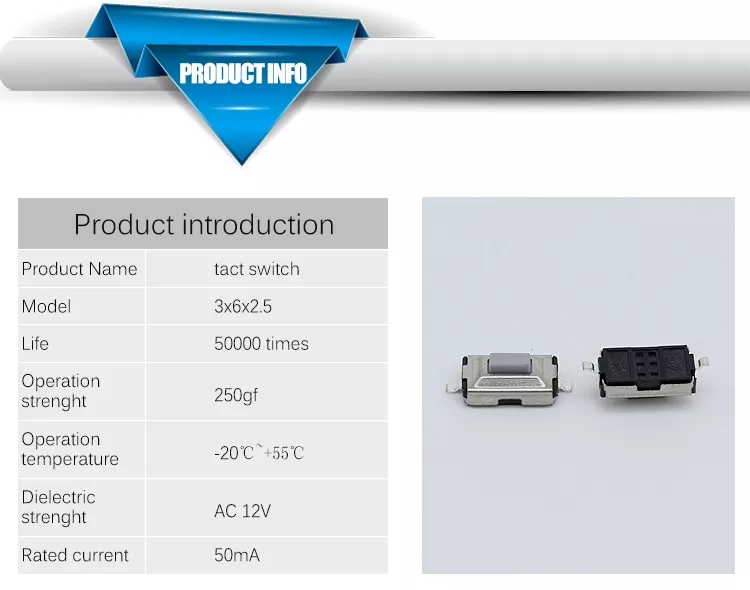

Item name: 3×6 SMT PCB Mount tactile switch

Model No.: TS3625X RS282G05A3SMRT

Rating: 50mA. 12VDC

Dielectric strength: 250VAC for 1 min

Contact resistance: 50mΩ max

Operating temperature: -30℃~+85℃

Lifetime: 500,000 cycles min

Operating force: 180gf;250gf

Travel: 0.25±0.1mm

Usage:

- For operating various electronic devices such as audio devices,vedeo revorders,communication devices,cameras,automotive sets,electric home appliances,etc.

Send email to us

Product Detail

Product Tags

Product Name	3X6 SMD Tactile Push Button Switch right angle pin for game controller
Rated resistance	10µ A 2V DC-20mA 15V DC
Contact resistance	<500mΩ
Insulation resistance	>50mΩ (100V DC)
Withstand voltage	250V AC (1min)
Vibration	<10ms (ON,OFF)
Operating force	1.6N, 2.4N, 3.3N
Stroke	1.6N,2.4N:0.13mm ; 3.3N:0.15mm
Service life	1.6N,2.4N:>50000 times ;3.3:>30000 times
Protection level	IP67
Operating temperature	-40℃ to +85℃
