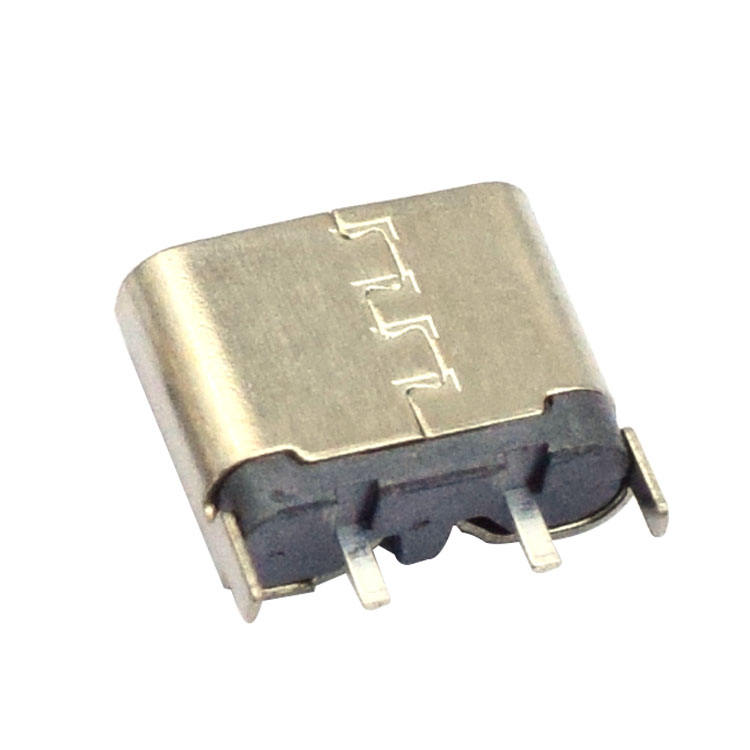

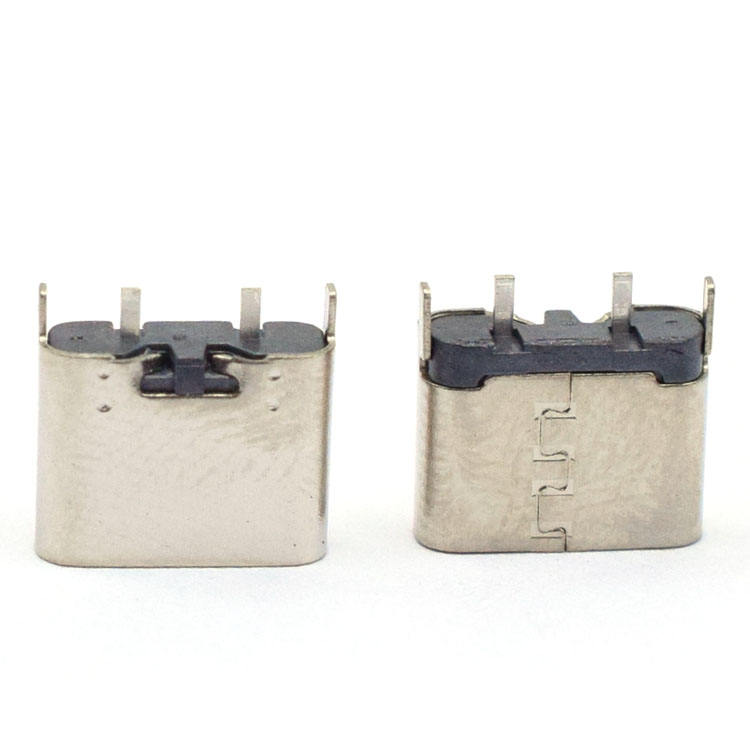

    2 pin usb type c jack connector female socket vertical plug fast mobile charging port

    2 pin usb type c jack connector female socket vertical plug fast mobile charging port Featured Image
    • 2 pin usb type c jack connector female socket vertical plug fast mobile charging port
    • 2 pin usb type c jack connector female socket vertical plug fast mobile charging port
    • 2 pin usb type c jack connector female socket vertical plug fast mobile charging port
    • 2 pin usb type c jack connector female socket vertical plug fast mobile charging port

    Short Description:

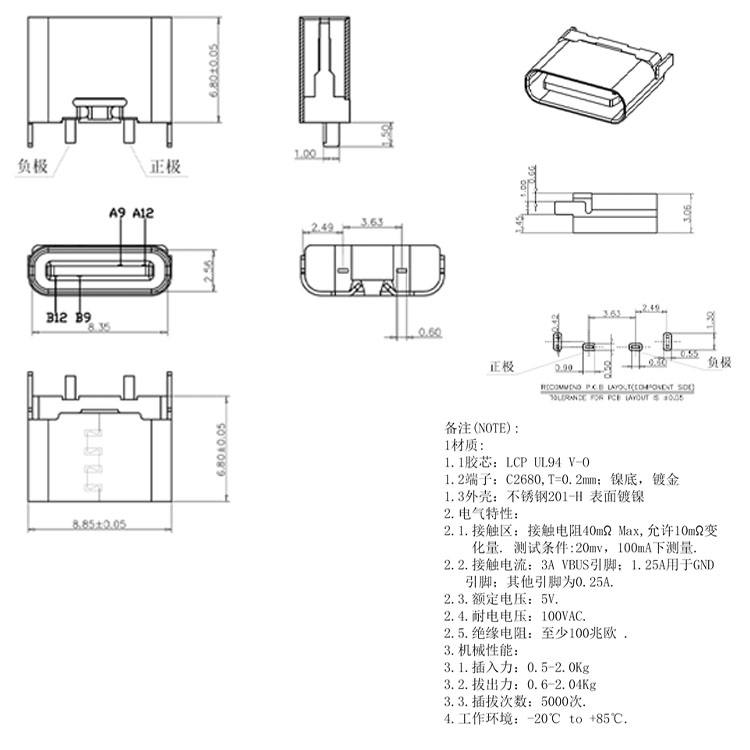

    product name TYPE-C 2PIN connector
    model number TYPE-C 2PIN H6.8
    molding LCP UL94 V-0
    Rated voltage 5V
    Withstand voltage 100V AC
    Insulation resistance 100 MΩ
    Insertion force 0.5-2.0kgf
    Pullout force 0.61-2.04KG
    Number of insertions 5000 cycles
    Operating temperature -20℃~+85℃
