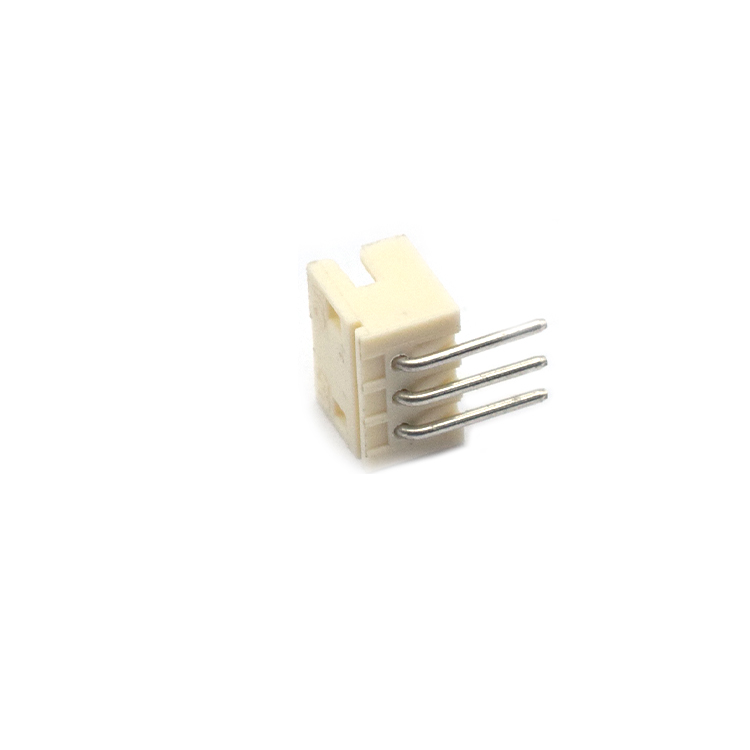

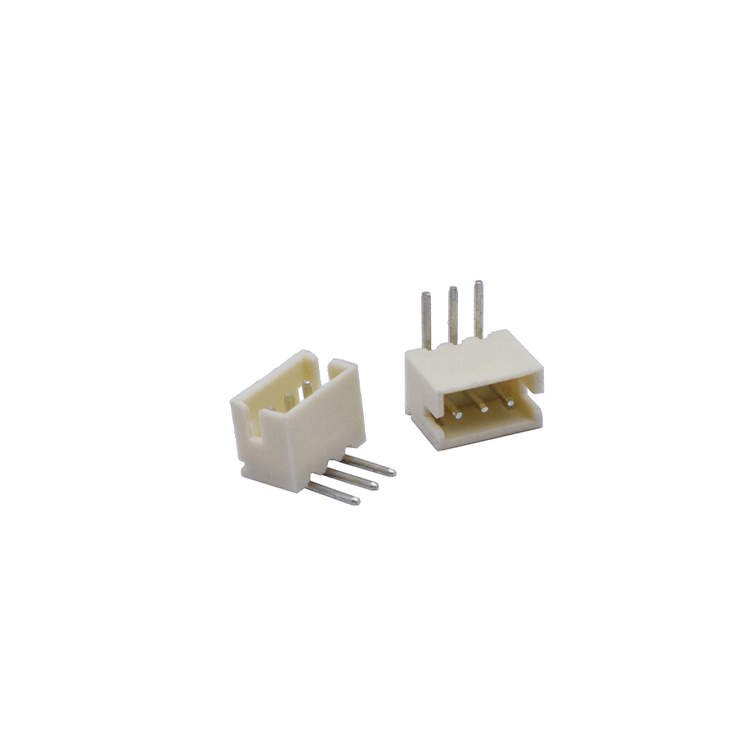

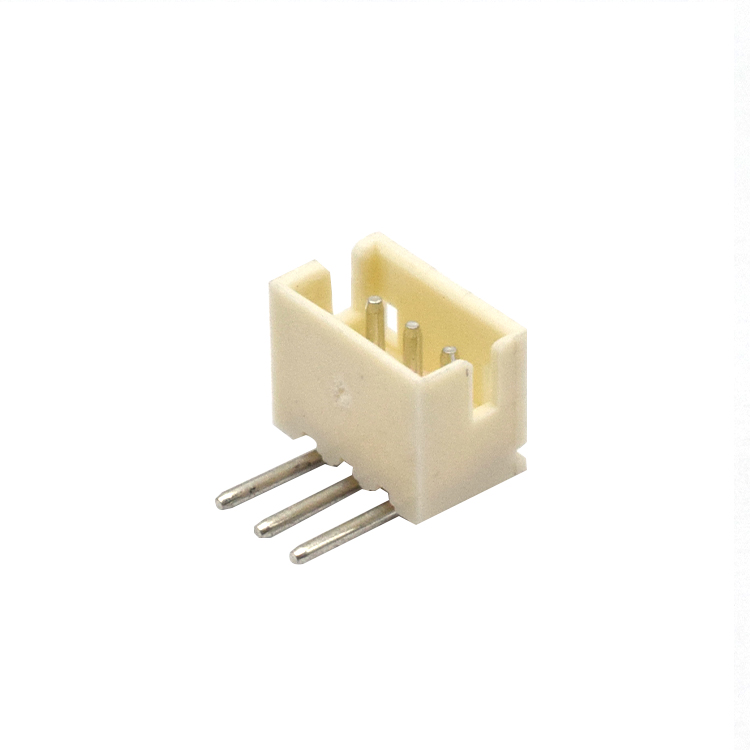

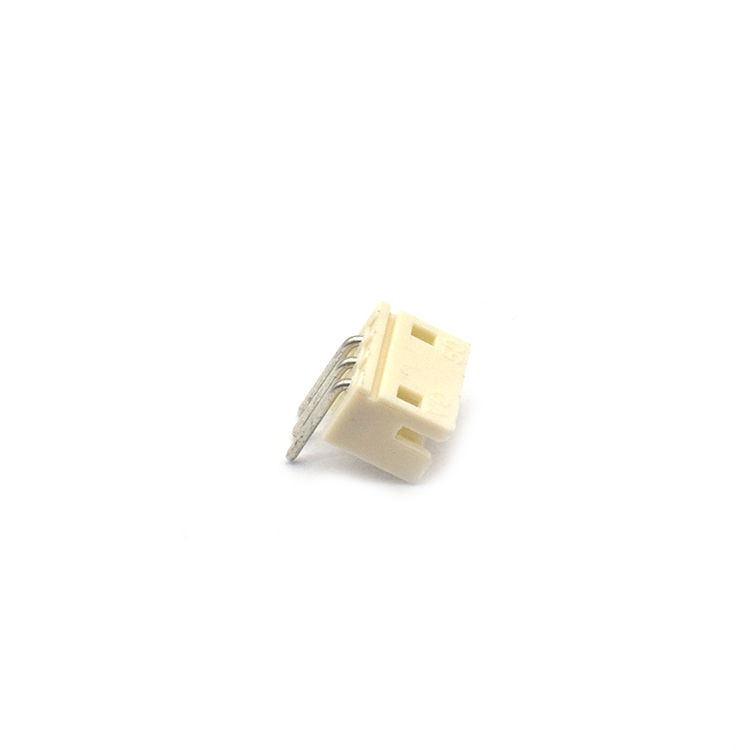

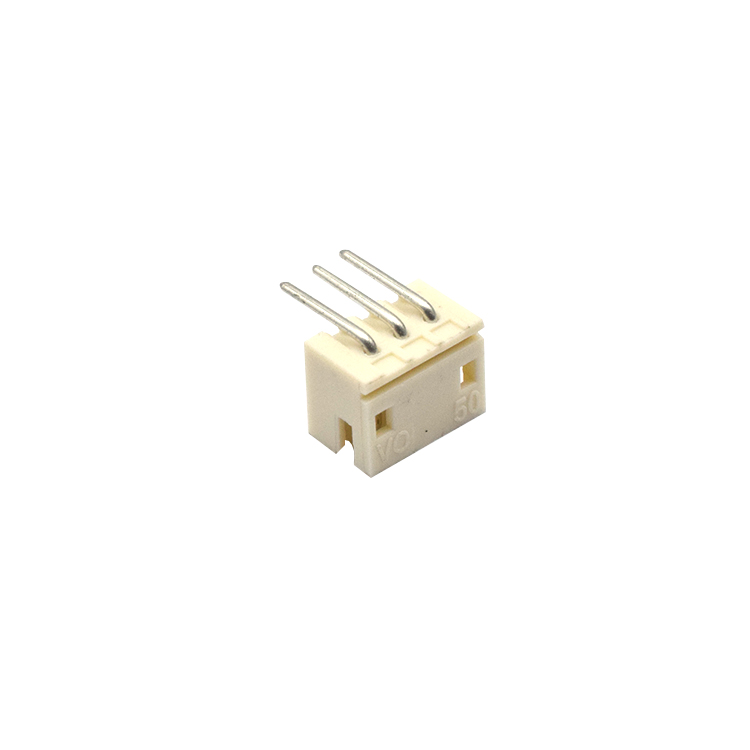

Wafer Connector ZH 1.5mm Bending PIN Female DIP Socket 1A 125V 2 PIN TO 16 PIN
| Product Name | wafer connector |
| Type Pin | Bending Pin |
| Certification | Rohs |
| Rating | 125VAC 1A |
| PIN | 2~16 pin |
| CONTACT RESISTANCE | 20m ohm max |
| INSULATION RESISTANCE | 500M ohm min |
| WITHSTAND VOLTAGE | AC 500V for 1 minute |
Material
Housing: Nylon46 UL94V-0.
Color: Beige Color.
Contact: Phosphor bronze 0.3mm.
Solder tabs:Phosphor bronze 0.25mm.
Plating: Tin Plating on Contact.
Tin Plating on Solder Tail.
Electrical Specification
Operation Voltage: 125V AC/DC.
Current Rating: 1 Ampere AC/DC per Contact.
Contact Resistance: 20mΩ Max.
Insulation Resistance: 500MΩ Min.
Dielectric Withstanding Voltage: 500V AC per Minute.
Environmental
Operating Temperature: -25°C to +85°C.
Package: 1,000pcs/Bag.
RoHS Compliance.
Needle seat can also be called Probe seat, but in the semiconductor industry called Probe seat
is mainly used in the Probe, semiconductor industry and photoelectric industry test
