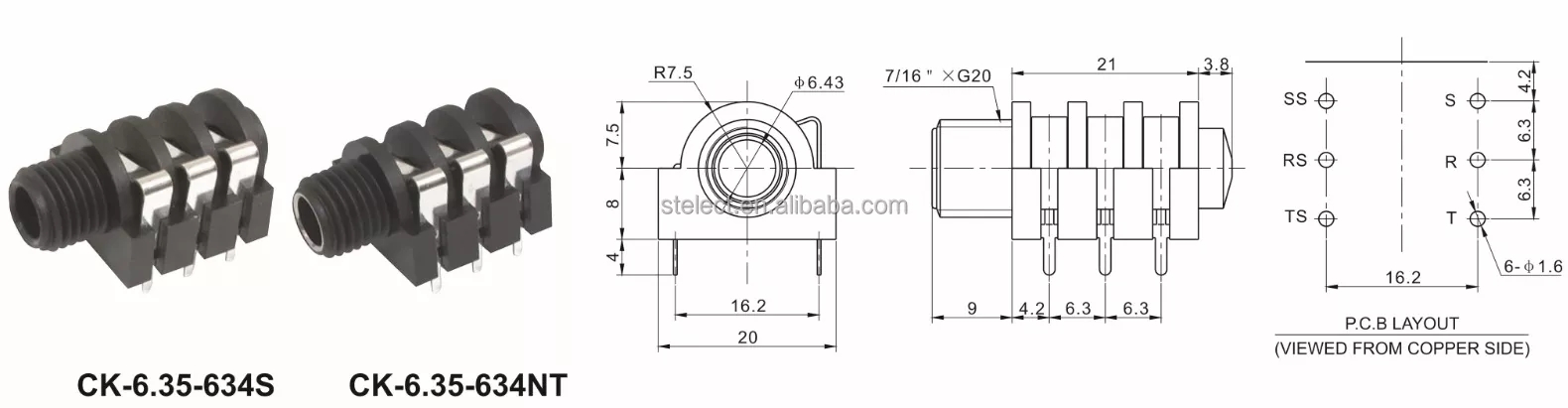

6.35mm stereo jack socket 2Poles PCB Panel Mount 4 Pin 1/4″ 6.35mm Female Socket
| Product Name | 6.35mm stereo jack socket 1/4″ socket 1/4 stereo jack for guitar accessories |
| Model Number | CK-6.35-630 |
| Contact Resistance | ≤30MΩ |
| Insulation Resistance | ≥100MΩ |
| Pressure | 500V,AC/Minute |
| Temperature Range | -30~+70℃ |
| Rated Load | 30V DC 1.0A |
| Operating force | 5N~30N |
| Type | CK-6.35 |
| Lifetime | 5000 times |
